Getting Started
1Ć6
Setting Up for the Examples
All the examples use the same setup. Once you perform this setup, you do
not have to change the signal connections for any of the other examples.
Remove all probes and signal inputs from the input BNC connectors along the
lower right of the front panel. Then, using one of the probes supplied with the
digitizing oscilloscope, connect from the CH 1 connector to the PROBE
COMPENSATION connectors (see Figure 1-3).

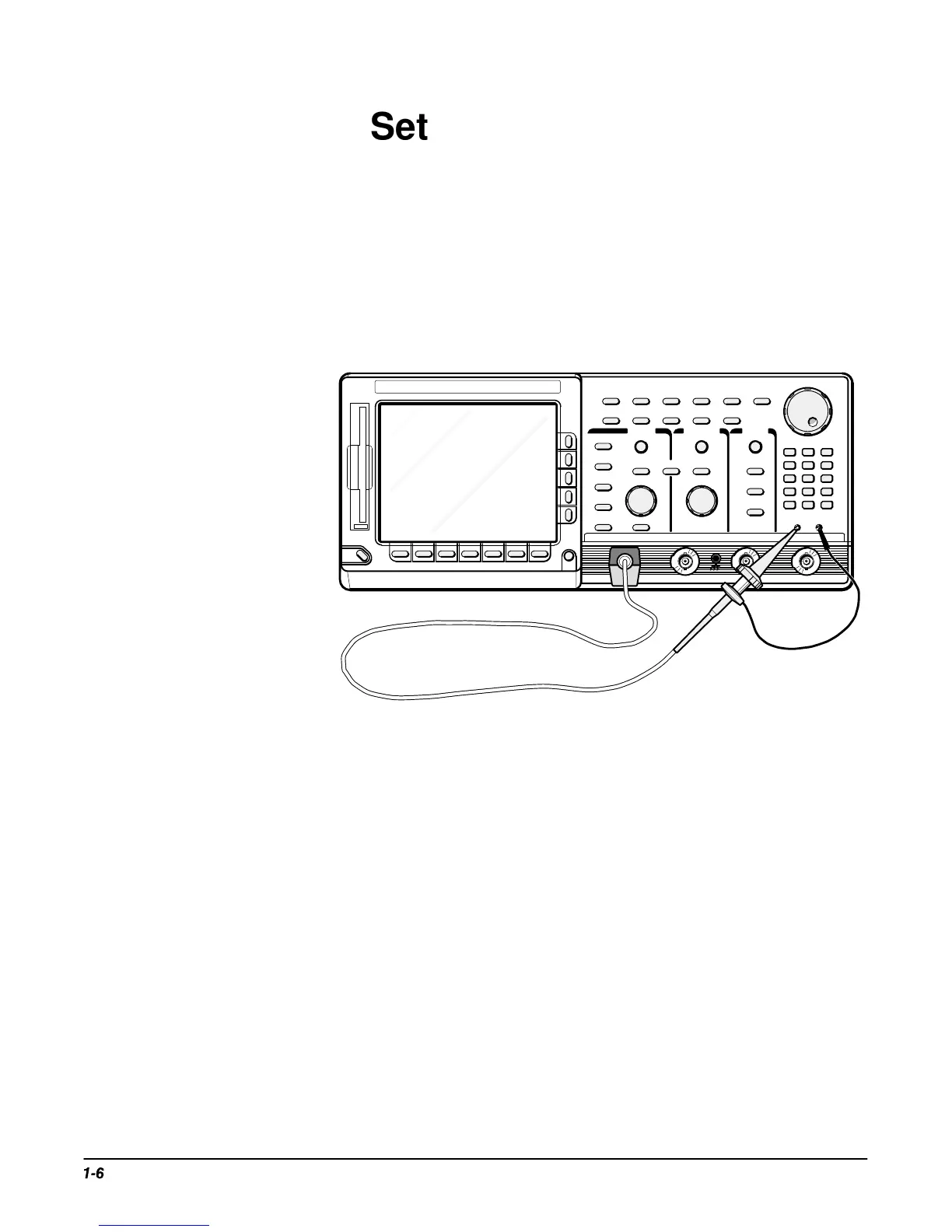

Figure 1-3: Connecting a Probe for the Examples
