Example 2: Multiple Waveforms
Getting Started
1Ć16
Side Menu Title

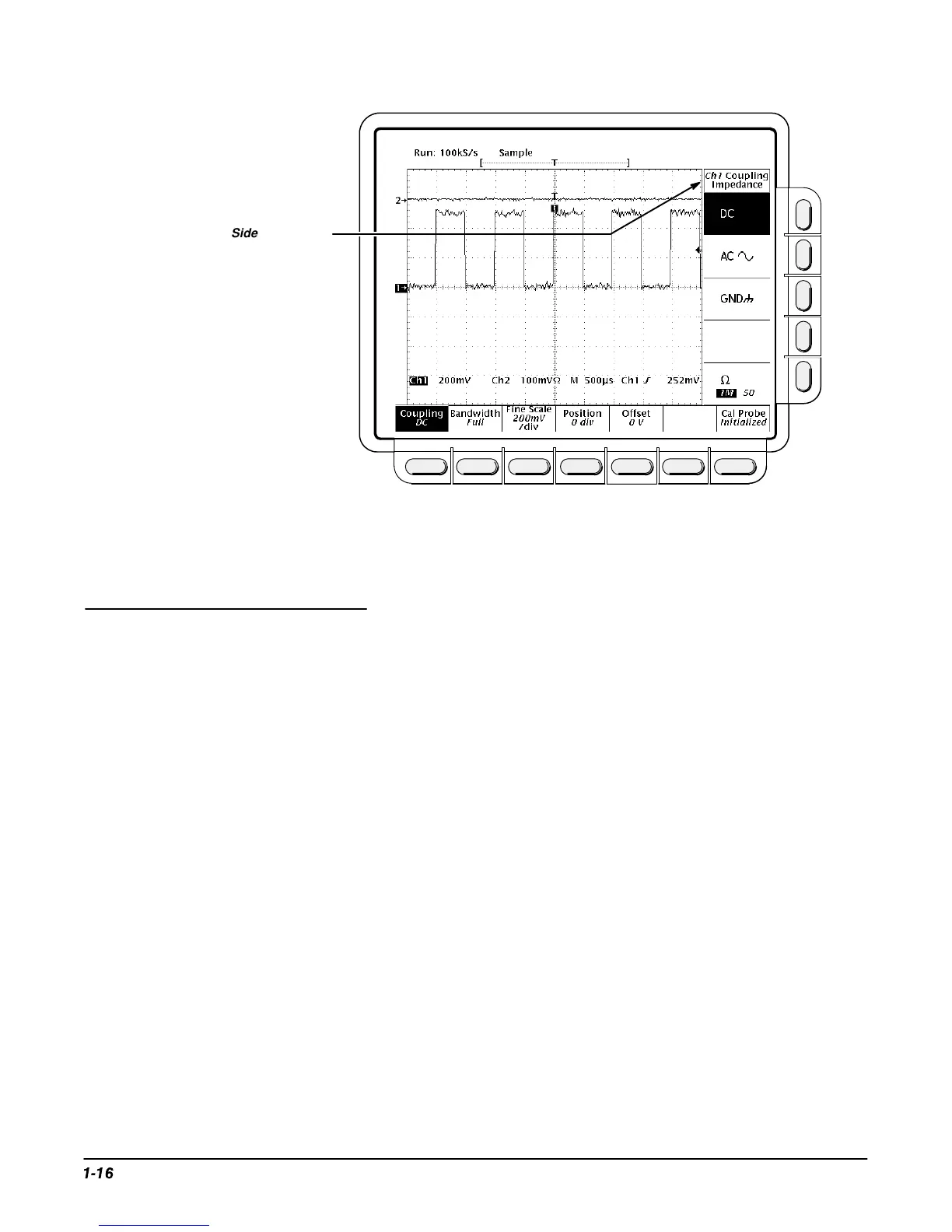

Figure 1-15: The Menus After Changing Channels
Pressing the WAVEFORM OFF button removes the waveform for the current-
ly selected channel. If the waveform you want to remove is not already se-
lected, select that channel using the channel (CH) button.
1. Press WAVEFORM OFF (under the vertical SCALE knob).
Since the CH 2 light was on when you pressed the WAVEFORM OFF
button, the channel 2 waveform was removed.
The channel (CH) lights now indicate channel 1. Channel 1 has become
the selected channel. When you remove the last waveform, all the CH
lights are turned off.
2. Press WAVEFORM OFF again to remove the channel 1 waveform.
Removing a
Waveform
