Performance Tests

4–76

TDS 500B, 600B and TDS 700A Service Manual

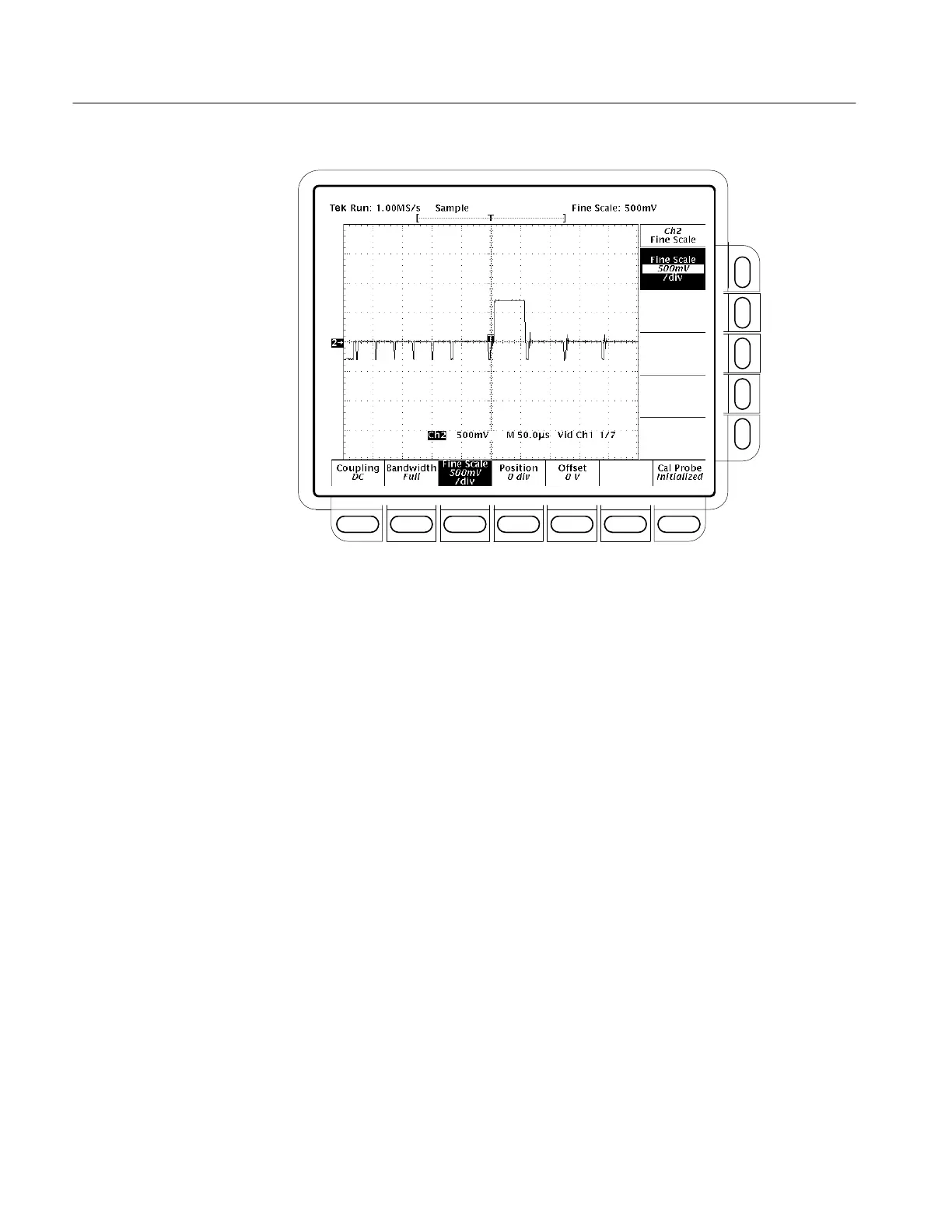

Figure 4–34: 60 Hz Rejection Test Result – TDS 684B Shown

6. Check Line Count Accuracy.

a. Set up oscilloscope for Line Count Accuracy Test.

H Press WAVEFORM OFF.

H Press CH1.

H Press HORIZONTAL MENU.

H Press the main-menu Record Length.

H Press the side-menu –more– until you see the appropriate menu.

H Press the side-menu 5000 points in 100divs.

H Press the main-menu Horiz Scale (/div).

H Use the keypad to set the horizontal scale to 200 ns (press 200,

SHIFT, n, then ENTER).

b. Check Line Count Accuracy.

H Connect a composite output signal from the rear of the PAL signal

source (labeled COMPST on the TSG 121) to the CH1 input

through a 75 W cable and a 75 W terminator. See Figure 4–35.
