Performance Tests

4–78

TDS 500B, 600B and TDS 700A Service Manual

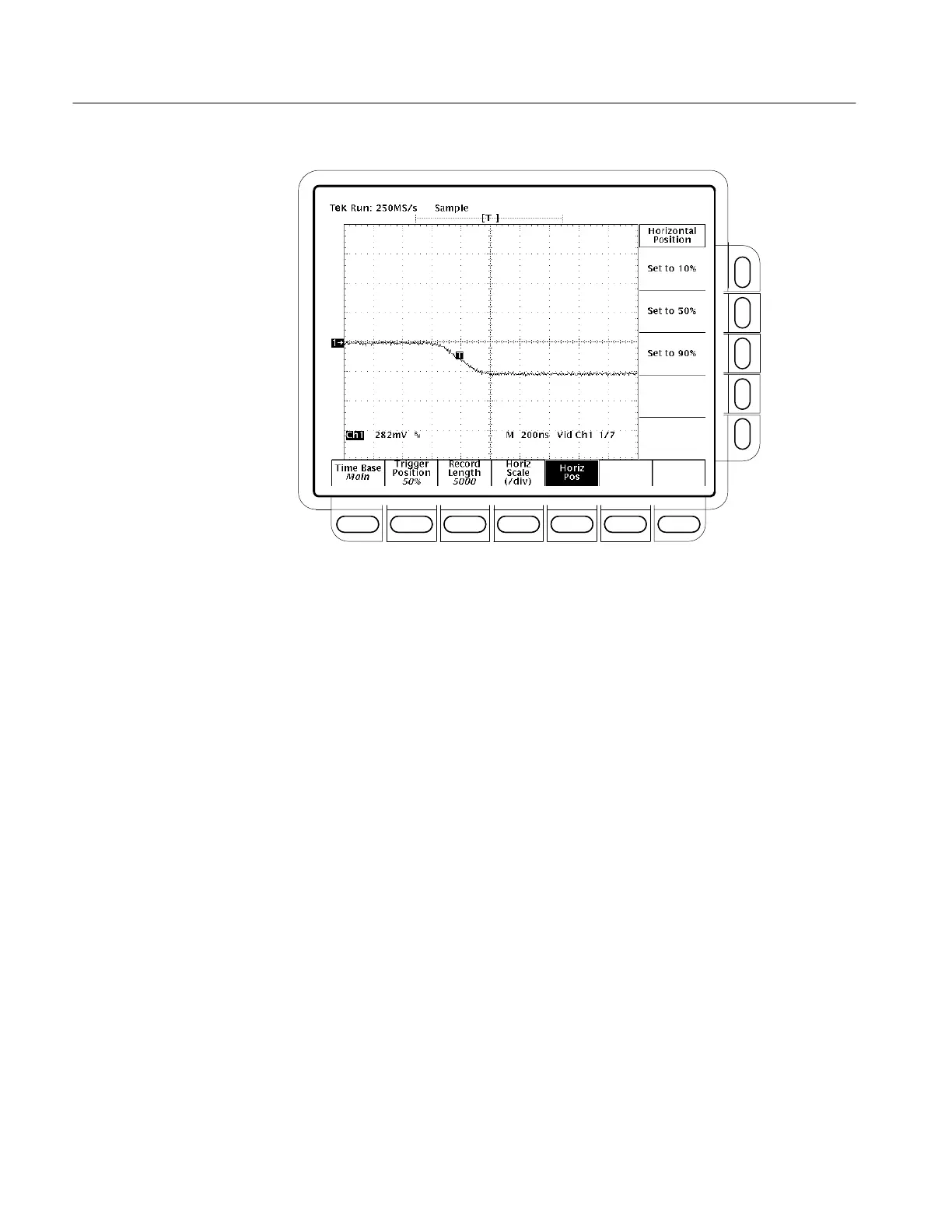

Figure 4–36: Line Count Accuracy Test Setup Waveform – TDS 684B Shown

H Press CURSOR.

H Press the main-menu Function.

H Press the side-menu V Bars.

H Using the General Purpose knob, place the left cursor directly over

the trigger ‘T’ icon.

H Press SELECT.

H Turn the General Purpose knob to adjust the right cursor for a cursor

delta reading of 6.780us.

H Use the HORIZONTAL POSITION knob to position the right

cursor to center screen.

H Verify that the cursor is positioned on a positive slope of the burst

signal. See Figure 4–37.
