Taking Cursor Measurements
You can use the cursors to quickly take time and voltage measure-
ments on a waveform.
Measuring Ring Frequency
To measure the ring frequency at the rising edge of a signal, follow
these steps:
1. Push the CURSOR button to see the Cursor Menu.
2. Push the Type option button and select Time.
3. Push the Source option button and select CH1.
4. Turn the CURSOR 1 knob to place a cursor on the first peak of
the ring.
5. Turn the CURSOR 2 knob to place a cursor on the second peak
of the ring.

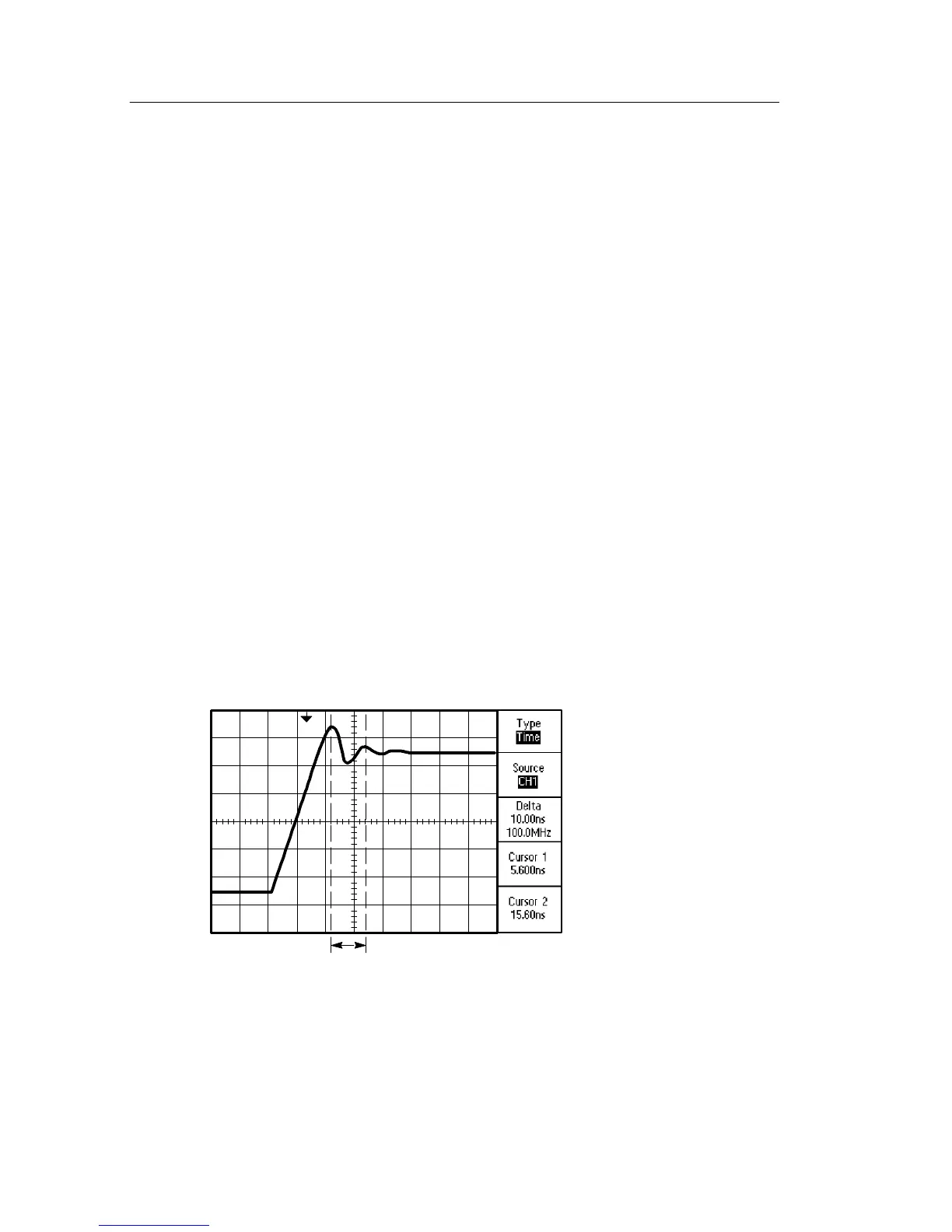

You can see the delta time and frequency (the measured ring
frequency) in the Cursor Menu.
