Operating Information
TDS3000B Series Service Manual
2-11

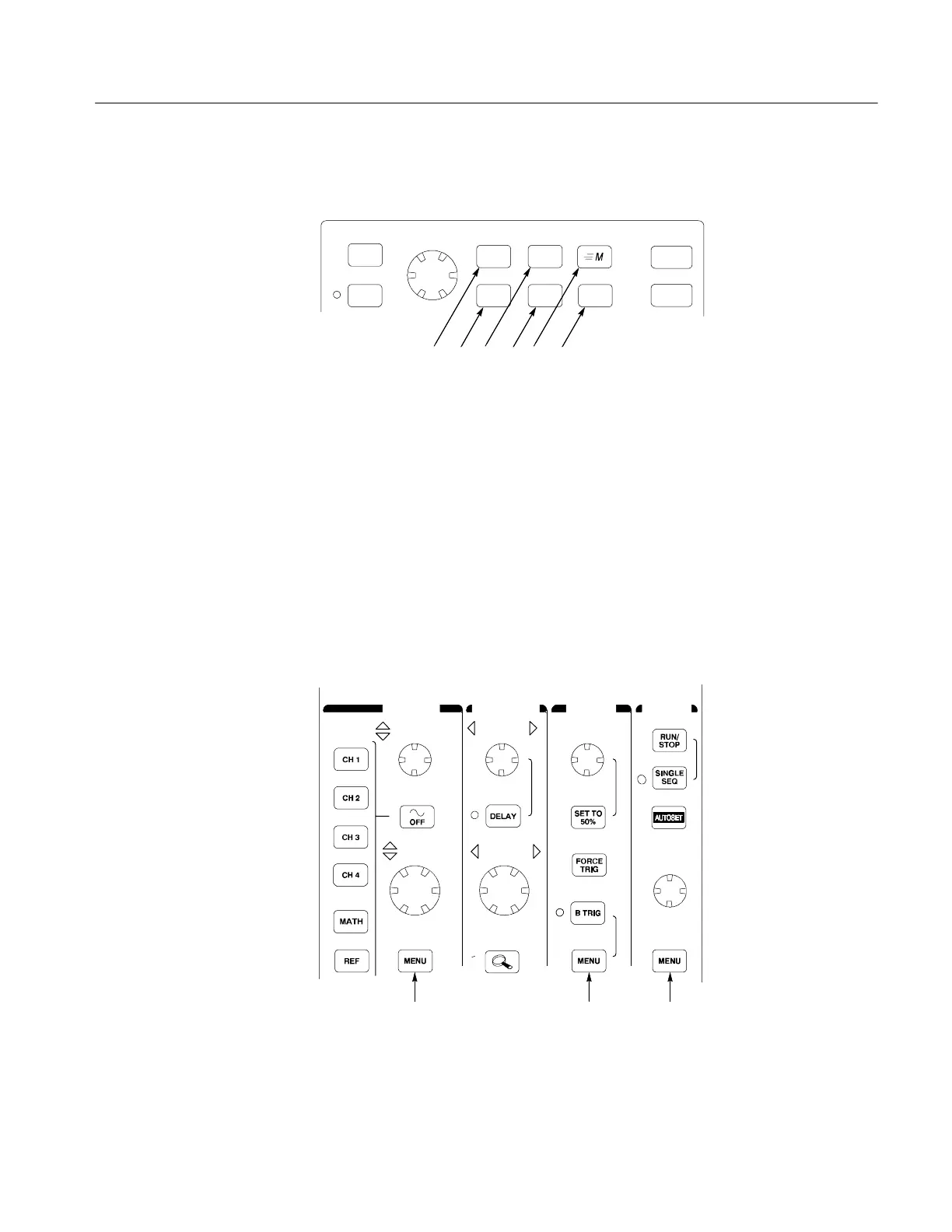

You can use the menu buttons to perform many functions in the oscilloscope.
21 4365
UTILITYDISPLAYCURSOR
MEASURE SAVE/RECALL QUICKMENUSELECT
COARSE
1. MEASURE. Performs automated measurements of waveforms.
2. CURSOR. Activates the cursors.
3. SAVE/RECALL. Saves and recalls setups and waveforms to memory or a
floppy disk.
4. DISPLAY. Changes the appearance of waveforms and the display screen.
5. QUICKMENU. Activates QuickMenus such as the built-in Quick Scope
feature.
6. UTILITY. Activates the system utility functions, such as selecting a
language.
WAVEFORM
INTENSITY
SCALE SCALE
POSITI ON PO SI TION LEVEL
VERTICAL HORIZONT AL TRIGGER ACQUIRE
987
Using the Menu Buttons
To Next Page
