Connecting to a VM5000 / TDS5000 Series Instrument.

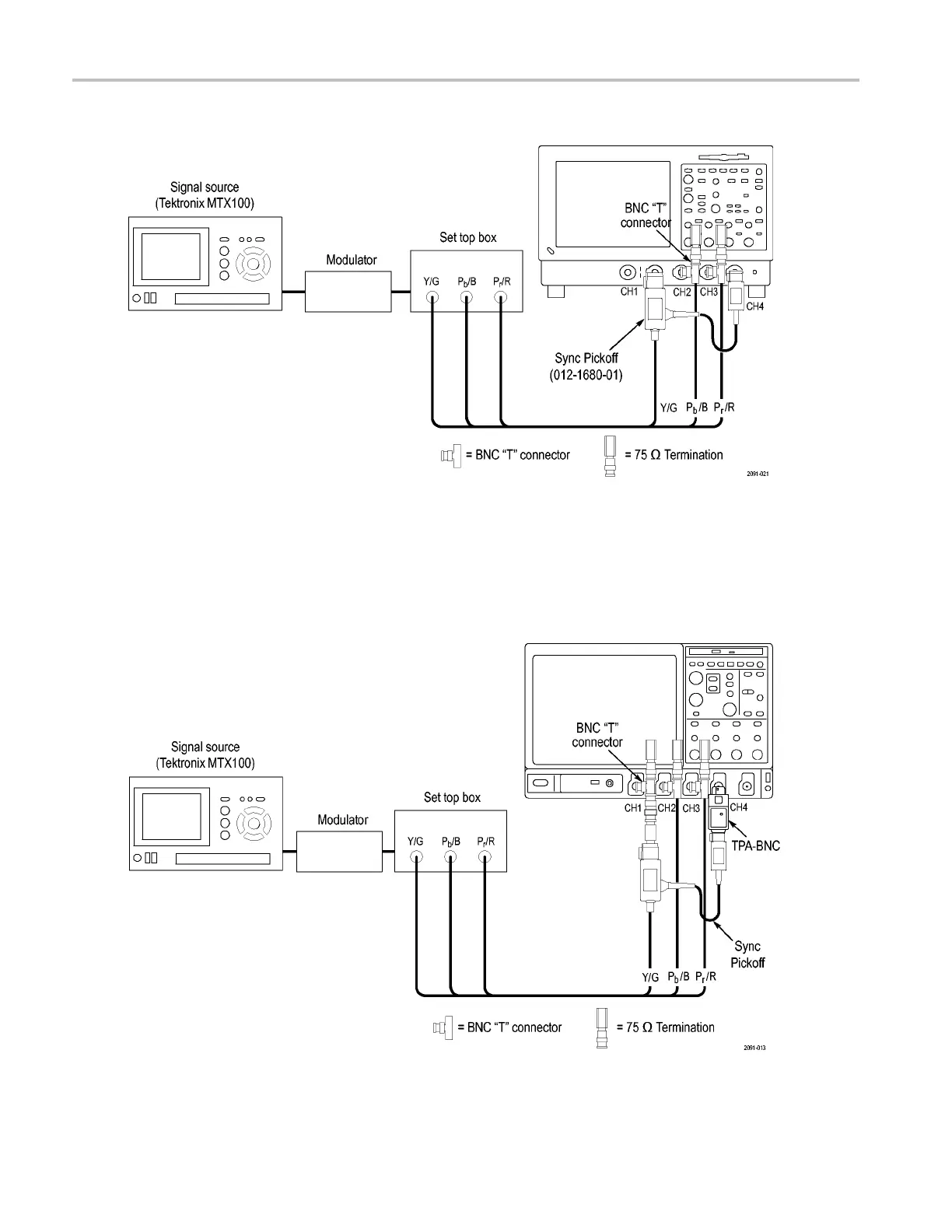

Setup 1B - Three-Wire Analog Video with Composite Sync for Sync Pickoff 012-1680-00. Ifyouareusinga
012-1680-00 Sync Pickoff (the part number is located on the label of the larger module), connect the Sync Pickoff to the
VM Series system CH1 input as shown in the
following illustration. If you are using a 012-1680-01 Sync Pickoff, use
the illustration shown in Setup 1A.
Connecting to a VM6000 / DPO7000 Series Instrument.
10 VM Series Video Measurement System Quick Start User Manual
To Next Page
