Performance Tests
4-66
TDS7104 & TDS7054 Service Manual
attenuator. See Figure 4--29. The 10X attenuator is optional if the SG503
is used.
TDS7000 oscilloscope
50 Ω coaxial cable
Sine wave generator
Output
10X attenuator

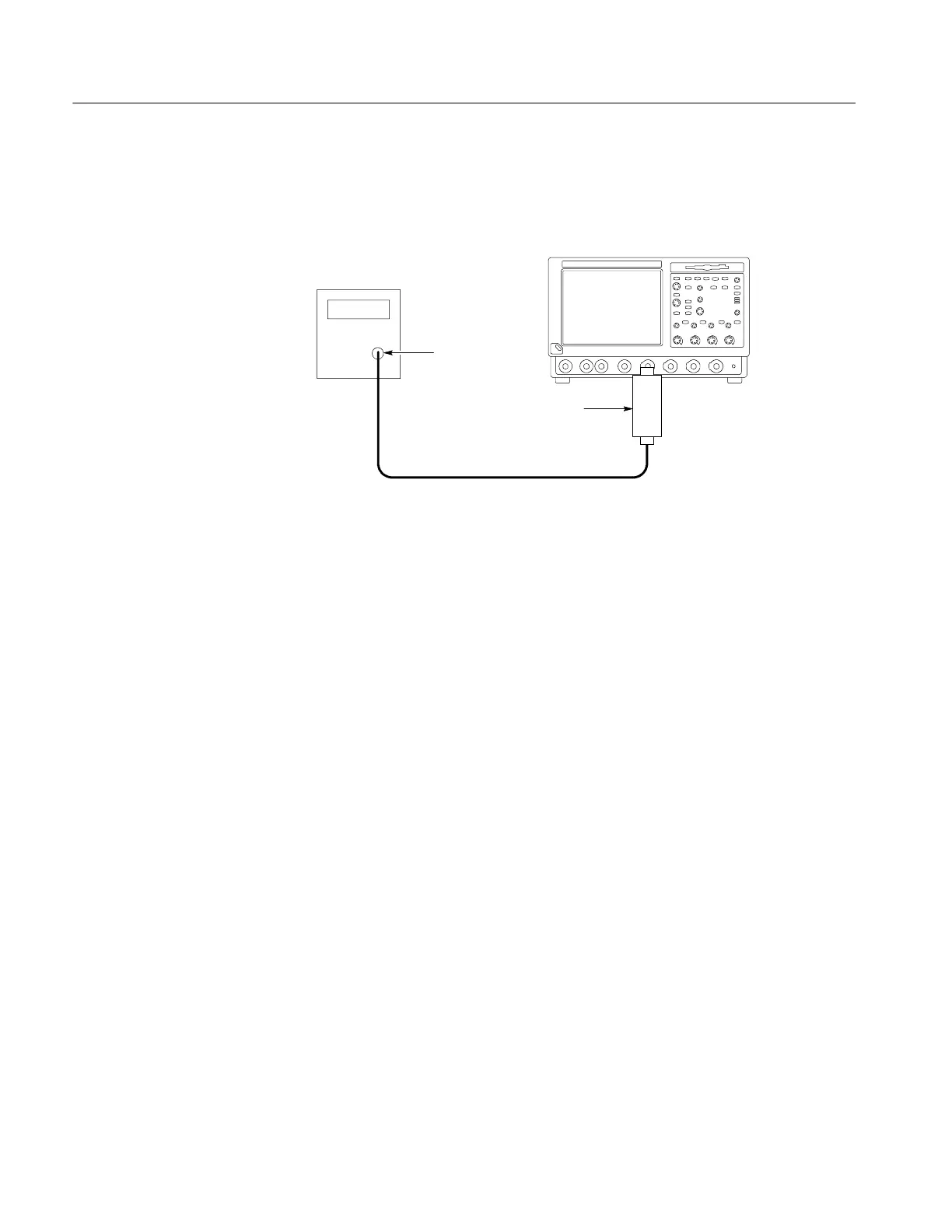

Figure 4- 29: Initial test hookup
2. Confirm the trigger system is within time-accuracy limits for pulse-glitch or
pulse-width triggering (time range ≤500 ns):
a. Display the test signal: Set the output of the sine wave generator for a
100 MHz, five-division sine wave on screen. Press PUSH TO
SET 50%.
b. Set the trigger mode: Press the Trigger MODE button to toggle it to
NORMAL.
c. Set upper and lower limits that ensure triggering: See Figure 4--30.
H Press the front-panel ADVANCED button and select the AEvent
tab; then select width triggering by touching the Width button.
To Next Page
