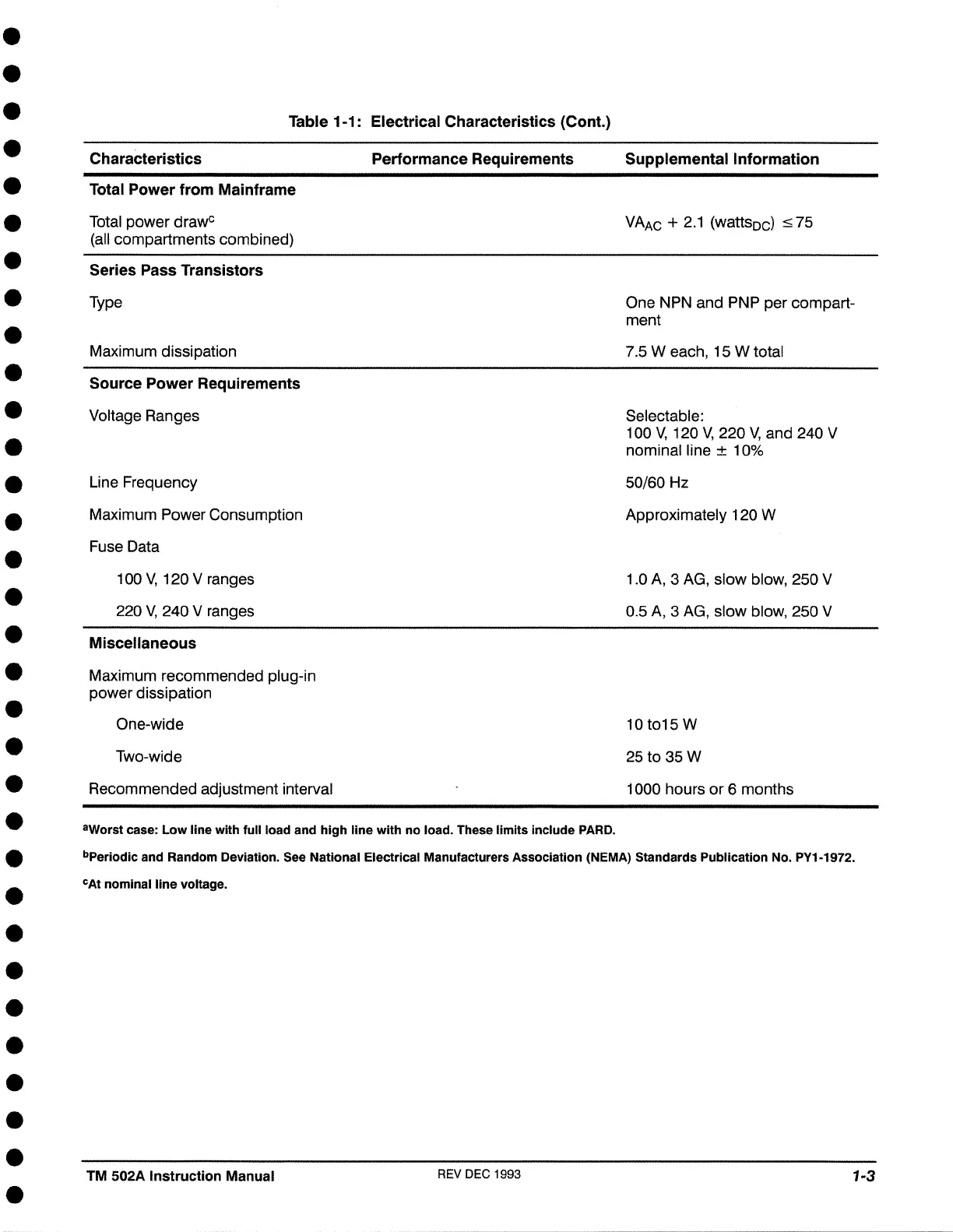

Table 1-1: Electrical Characteristics (Cont.)
Characteristics
Total Power from Mainframe
Total power drawc
(all compartments combined)
Series Pass Transistors
Type
Maximum dissipation
Source Power Requirements
Voltage Ranges
Line Frequency
Maximum Power Consumption
Fuse Data
100 V, 120 V ranges
220 V, 240 V ranges
Miscellaneous
Maximum recommended plug-in
power dissipation
One-wide
Two-wide
Recommended adjustment interval
Performance Requirements
8
Worst case: Low line with full load and high line with no load. These limits Include PARO .
Supplemental Information
VAAc + 2.1 (watts
0
c) :s; 75
One NPN and PNP per compart-
ment
7.5 W each, 15 W total
Selectable:
100 V, 120 V, 220 V, and 240 V
nominal line
± 10%
50/60 Hz
Approximately 120 W
1.0 A, 3 AG, slow blow, 250 V
0.5 A, 3 AG, slow blow, 250 V
10 to15 W
25to 35 W
1000 hours or 6 months
hPeriodic and Random Deviation. See National Electrical Manufacturers Association (NEMA) Standards Publication No. PY1-1972.
CAt nominal line voltage .
TM 502A Instruction Manual
REV DEC 1993
1-3
