Tektronix TM 502A User Manual

Characteristics
Temperature
Operating
Non-operating
Humidityb
Altitude
Operating
Non-operating
Vibration
Shock
Bench Handling
Transportation
EMC
Electrical Discharge
awith plug-ins
1-4

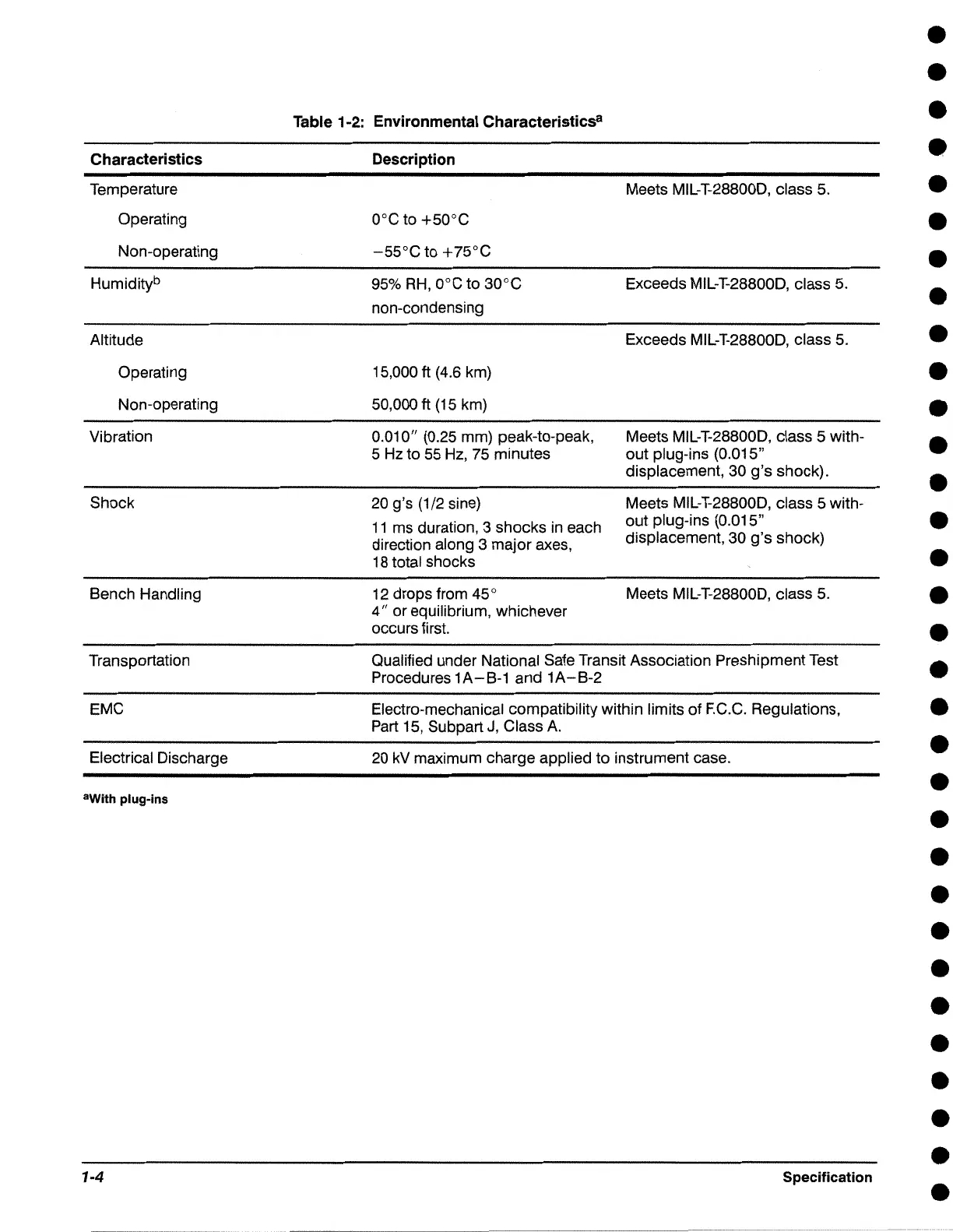

Table 1-2: Environmental Characteristics
8
Description
0°c to +50°C
-55°C to + 75°C
95% RH, 0°C to 30°C
non-condensing
15,000 ft (4.6 km)
50,000 ft (15 km)
0.01
O" (0.25 mm) peak-to-peak,
5 Hz to 55 Hz, 75 minutes
20 g's (1/2 sine)
11 ms duration, 3 shocks in each
direction along 3 major axes,
18 total shocks
12 drops from 45°
4" or equilibrium, whichever
occurs first.
Meets MIL-T-28800D, class 5.
Exceeds MIL-T-28800D, class 5.
Exceeds MIL-T-28800D, class 5.
Meets MIL-T-28800D, class 5 with-
out plug-ins (0.015"
displacement, 30 g's shock).
Meets MIL-T-28800D, class 5 with-
out plug-ins (0.015"
displacement, 30 g's shock)
Meets MIL-T-28800D, class 5.
Qualified under National Safe Transit Association Preshipment Test
Procedures 1A-B-1 and 1A-B-2
Electro-mechanical compatibility within limits of F.C.C. Regulations,
Part 15, Subpart J, Class
A.
20 kV maximum charge applied to instrument case.
Specification
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Tektronix TM 502A Specifications

General

Brand	Tektronix
Model	TM 502A
Category	Control Unit
Language	English
