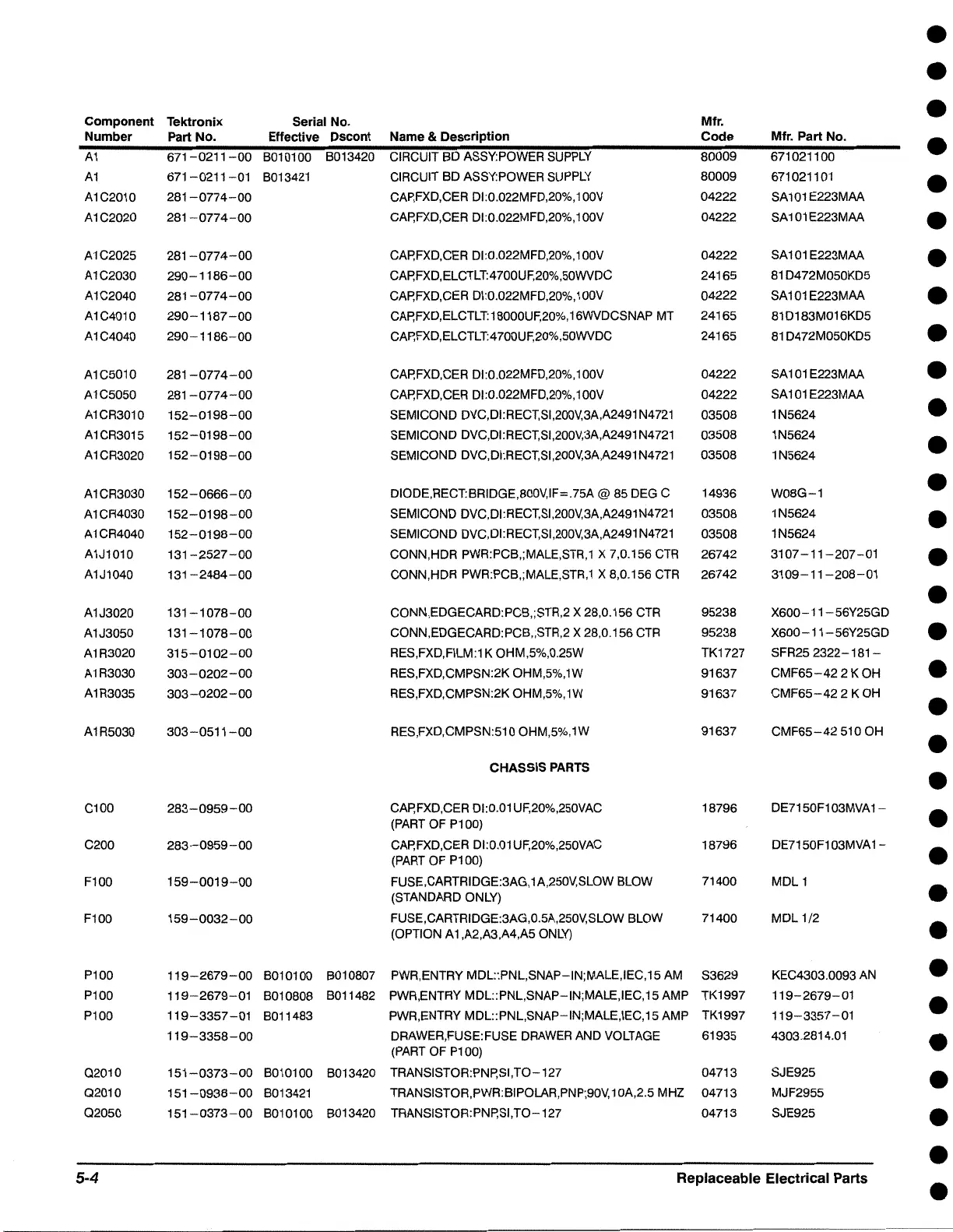

Tektronix TM 502A User Manual

•
•
Component Tektronix Serial No.
Mfr.
•
Number Part No. Effective Dscont Name & Description
Code Mfr. Part No.
•
A1 671 -0211 -00 B010100 B013420
CIRCUIT BD ASSY:POWER SUPPLY 80009 671021100
A1 671 -0211 -01
B013421
CIRCUIT BD ASSY:POWER SUPPLY
80009 671021101
•
A1C2010 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%, 1 00V
04222 SA 101 E223MAA
A1C2020 281-0774-00
CAP,FXD,CER Dl:0.022MFD,20%, 1 00V
04222
SA 101 E223MAA
•
A1C2025 281-0774-00
CAP,FXD,CER Dl:0.022MFD,20%, 1 00V 04222 SA101E223MAA
•
A1C2030 290-1186-00
CAP,FXD,ELCTLT:4700UF,20%,50WVDC 24165 81 D472M050KD5
A1C2040 281-0774-00
CAP,FXD,CER Dl:0.022MFD,20%, 1 00V 04222 SA 101 E223MAA
•
A1C4010 290-1187-00
CAP,FXD,ELCTLT: 18000UF,20%, 16WVDCSNAP MT 24165 81D183M016KD5
A1C4040 290-1186-00
CAP,FXD,ELCTLT:4700UF,20%,50WVDC 24165 81 D472M050KD5
•
A1C5010 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%, 1 00V
04222 SA 101 E223MAA
•
A1C5050 281-0774-00 CAP,FXD,CER Dl:0.022MFD,20%, 1 00V
04222 SA 101 E223MAA
•
A1CR3010
152-0198-00
SEMICOND DVC,Dl:RECT,Sl,200V,3A,A2491 N4721 03508
1N5624
A1CR3015
152-0198-00
SEMICOND DVC,Dl:RECT,Sl,200V,3A,A2491 N4721 03508
1N5624
•
A1CR3020
152-0198-00
SEMICOND DVC,Dl:RECT,Sl,200V,3A,A2491 N4721 03508 1N5624
A1CR3030
152-0666-00
DIODE,RECT:BRIDGE,800V,IF=.75A@ 85 DEG C 14936 W08G-1
•
A1CR4030
152-0198-00
SEMICOND DVC,Dl:RECT,Sl,200V,3A,A2491 N4721 03508
1N5624
•
A1CR4040 152-0198-00
SEMICOND DVC,Dl:RECT,Sl,200V,3A,A2491 N4721 03508 1N5624
A1J1010
131-2527-00
CONN,HDR PWR:PCB,;MALE,STR,1 X 7,0.156 CTR
26742 3107-11-207-01
•
A1J1040 131-2484-00
CONN,HDR PWR:PCB,;MALE,STR,1 X 8,0.156 CTR
26742 3109-11-208-01
•
A1J3020 131-1078-00
CONN,EDGECARD:PCB,;STR,2 X 28,0.156 CTR 95238
X600-11-56Y25GD
A1J3050 131-1078-00
CONN,EDGECARD:PCB,;STR,2 X 28,0.156 CTR 95238
X600-11 - 56Y25GD
• A1R3020
315-0102-00
RES,FXD,FILM:1 K OHM,5%,0.25W
TK1727 SFR25 2322-181
A1R3030 303-0202-00
RES,FXD,CMPSN:2K OHM,5%,1W 91637 CMF65-42 2 KOH
•
A1R3035 303-0202-00
RES,FXD,CMPSN:2K OHM,5%, 1 W
91637
CMF65-42 2 KOH
•
A1R5030 303-0511 -00
RES,FXD,CMPSN:510 OHM,5%,1W 91637 CMF65-42 510 OH
•
CHASSIS PARTS
•
C100
283-0959-00
CAP,FXD,CER Dl:0.01 UF,20%,250VAC
18796 DE7150F103MVA 1
•
(PART OF P100)
C200
283-0959-00 CAP,FXD,CER Dl:0.01 UF,20%,250VAC
18796 DE7150F103MVA 1 -
•
(PART OF P100)
F100
159-0019-00
FUSE,CARTRIDGE:3AG, 1 A,250V,SLOW BLOW
71400 MDL1
•
(STANDARD ONLY)
F100
159-0032-00
FUSE,CARTRIDGE:3AG,0.5A,250V,SLOW BLOW
71400
MDL 1/2
•
(OPTION A 1,A2,A3,A4,A5 ONLY)
P100 119-2679-00 8010100 B010807
PWR,ENTRY MDL::PNL,SNAP-IN;MALE,IEC,15 AM S3629 KEC4303.0093 AN
•
P100 119-2679-01 8010808 8011482
PWR,ENTRY MDL::PNL,SNAP-IN;MALE,IEC, 15 AMP TK1997 119-2679-01
•
P100 119-3357-01 B011483
PWR,ENTRY MDL::PNL,SNAP-IN;MALE,IEC, 15 AMP TK1997 119-3357-01
119-3358-00
DRAWER,FUSE:FUSE DRAWER AND VOLTAGE 61935 4303.2814.01
•
(PART OF P100)
02010
151 -0373-00 8010100 8013420
TRANSISTOR:PNP,Sl,TO-127
04713
SJE925
•
02010
151-0938-00 8013421
TRANSISTOR,PWR:BIPOLAR,PNP;90V, 1 0A,2.5 MHZ 04713 MJF2955
02050
151-0373-00
8010100 8013420
TRANSISTOR:PNP,Sl,TO-127
04713
SJE925
•
•
5.4
