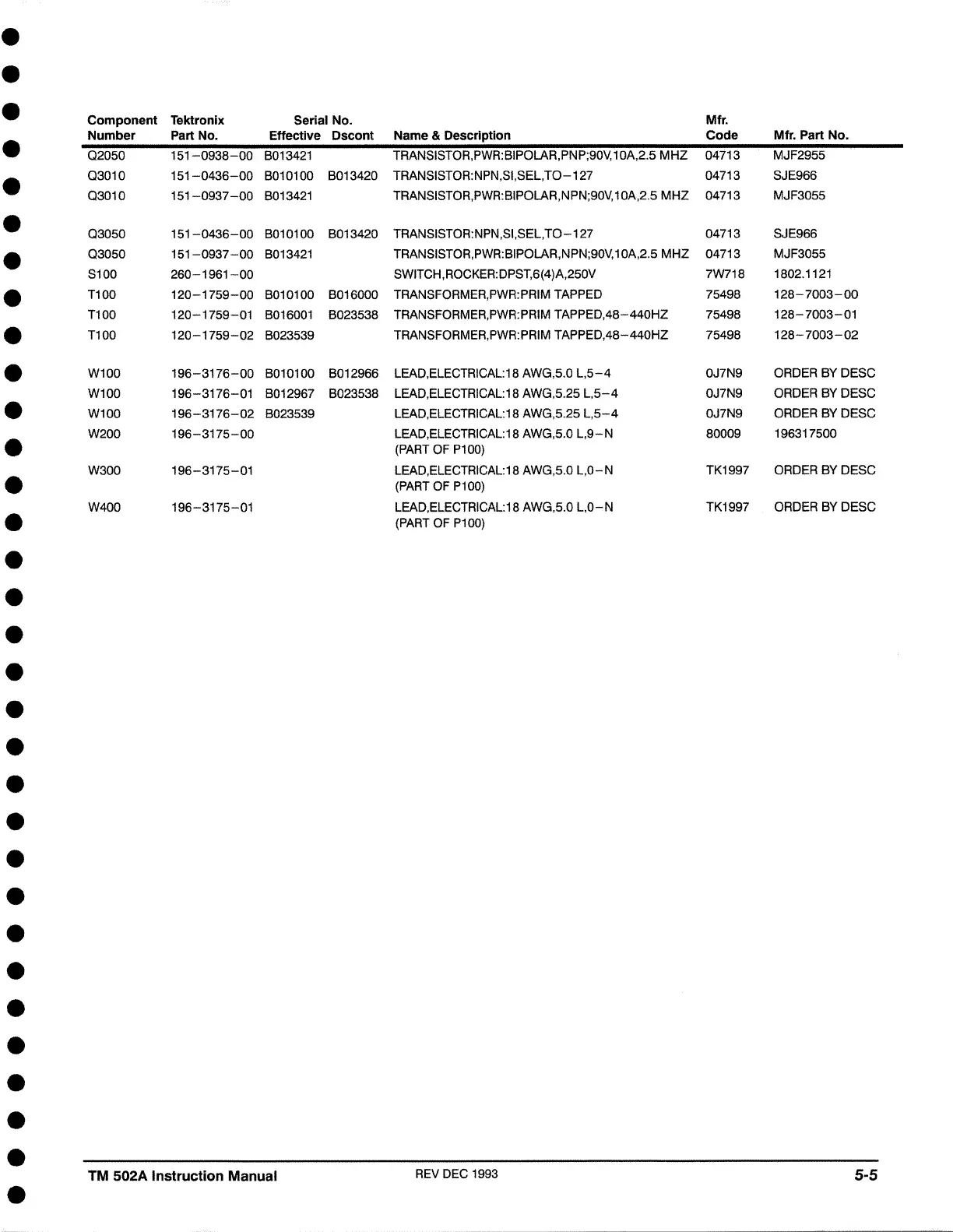

Tektronix TM 502A User Manual

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Component Tektronix Serial No.
Number
Part No. Effective Dscont
02050 151-0938-00 B013421
03010 151-0436-00 B010100 B013420
03010 151-0937-00 B013421
03050 151-0436-00 B010100 B013420
03050
151-0937-00
B013421
S100
260-1961-00
T100 120-1759-00 B010100 B016000
T100 120-1759-01
B016001 B023538
T100 120-1759-02
B023539
W100 196-3176-00
B010100 B012966
W100 196-3176-01
B012967 B023538
W100 196-3176-02
B023539
W200 196-3175-00
W300 196-3175-01
W400 196-3175-01
TM 502A Instruction Manual
Mfr.
Name
& Description Code
Mfr. Part No.
TRANSISTOR,PWR:BIPOLAR,PNP;90V, 1 0A,2.5 MHZ 04713 MJF2955
TRANSISTOR:NPN,Sl,SEL,TO-127 04713 SJE966
TRANSISTOR,PWR:BIPOLAR,NPN;90V, 1 0A,2.5 MHZ 04713 MJF3055
TRANSISTOR:NPN,Sl,SEL,TO-127 04713 SJE966
TRANSISTOR,PWR:BIPOLAR,NPN;90V, 1 0A,2.5 MHZ 04713 MJF3055
SWITCH,ROCKER:DPST,6(4)A,250V
7W718 1802.1121
TRANSFORMER,PWR:PRIM TAPPED
75498 128-7003-00
TRANSFORMER,PWR:PRIM TAPPED,48-440HZ 75498
128-7003-01
TRANSFORMER,PWR:PRIM TAPPED,48-440HZ 75498 128-7003-02
LEAD,ELECTRICAL:18 AWG,5.0 L,5-4 0J7N9
ORDER BY DESC
LEAD,ELECTRICAL:18 AWG,5.25 L,5-4 0J7N9
ORDER BY DESC
LEAD,ELECTRICAL:18 AWG,5.25 L,5-4 0J7N9
ORDER BY DESC
LEAD,ELECTRICAL:18 AWG,5.0 L,9-N 80009
196317500
(PART OF P100)
LEAD,ELECTRICAL:18 AWG,5.0 L,0-N TK1997
ORDER BY DESC
(PART OF P100)
LEAD,ELECTRICAL:18 AWG,5.0 L,0-N
TK1997 ORDER BY DESC
(PART OF P100)
REV DEC 1993
5-5
