Acquiring Waveforms
TDS5000 Series User Manual
3-9

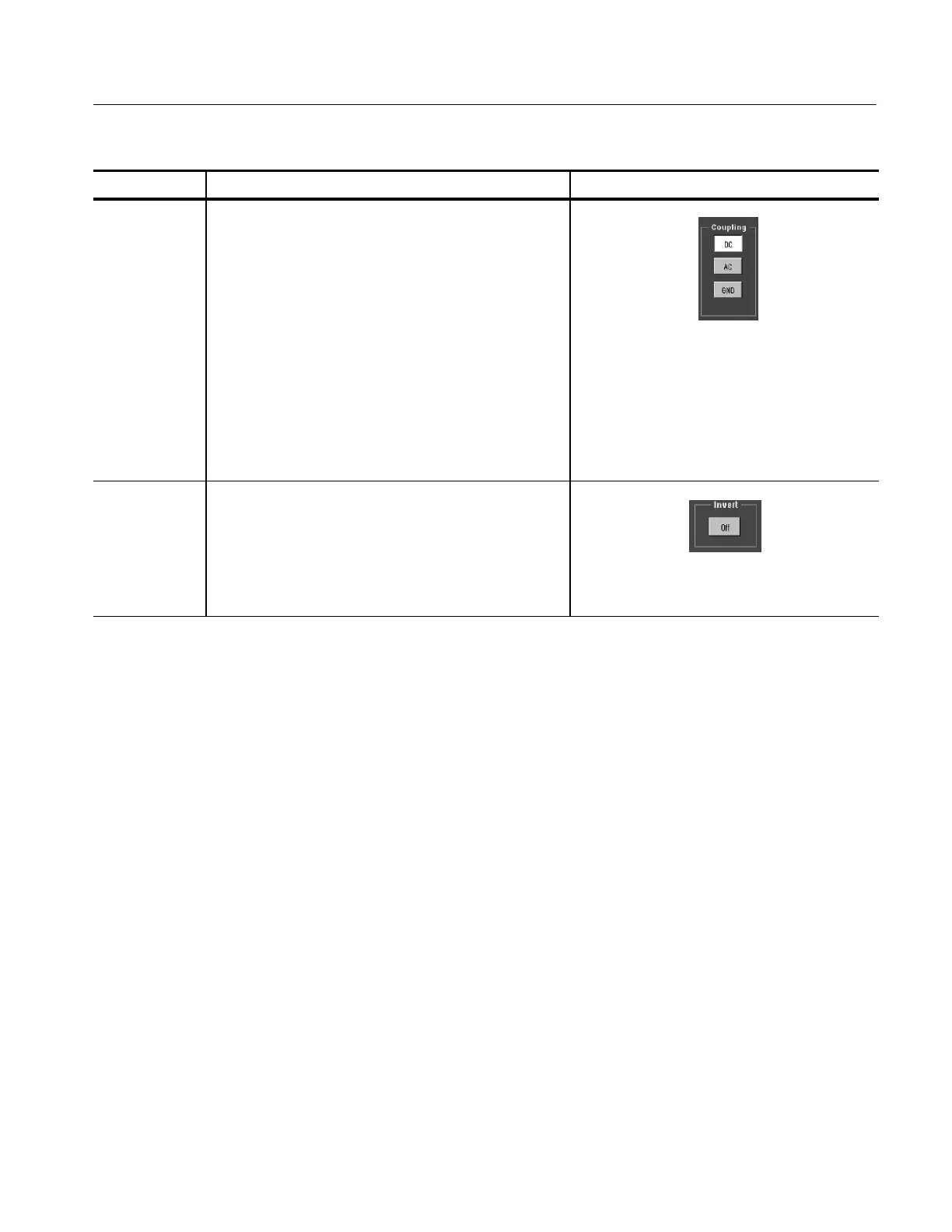

Overview Control elements and resourcesTo set up signal i nput
Select input
coupling
5. Open the Vertical Setup control window by clicking Vert
on the button bar or selecting the Vertical Setup
command from the Verti cal menu. To change the input
coupling, select the appropriate channel tab and click:
H DC to couple both the AC and DC components of
an input signal.
H AC to couple only the AC components of an input
signal.
H GND to disconnect the input signal from the
acquisition system.
Click Close to cl ose the window.
Invert the
channel
6. Cl ick Invert to toggle inversion of the selected waveform.
When Invert is On, the sel ected waveform appears
mathematically inverted (flipped) on the zero volt axis.
No trace of the normal waveform is left on the screen.
To Next Page
