Acquiring Waveforms
3-12
TDS5000 Series User Manual
Autoset automatically sets up the oscilloscope controls (acquisition, display,
horizontal, trigger, and vertical) based on the characteristics of the input signal.
Autoset is much faster than manual control-by-control setup. When the input
signal is connected, use Autoset to automatically set up the oscilloscope:
NOTE. Autoset may change vertical position to position the waveform appropri-
ately. It alw ays sets vertical offset to 0 V.
Overview To Autoset the oscilloscope Control elem ents and resources
Prerequisites

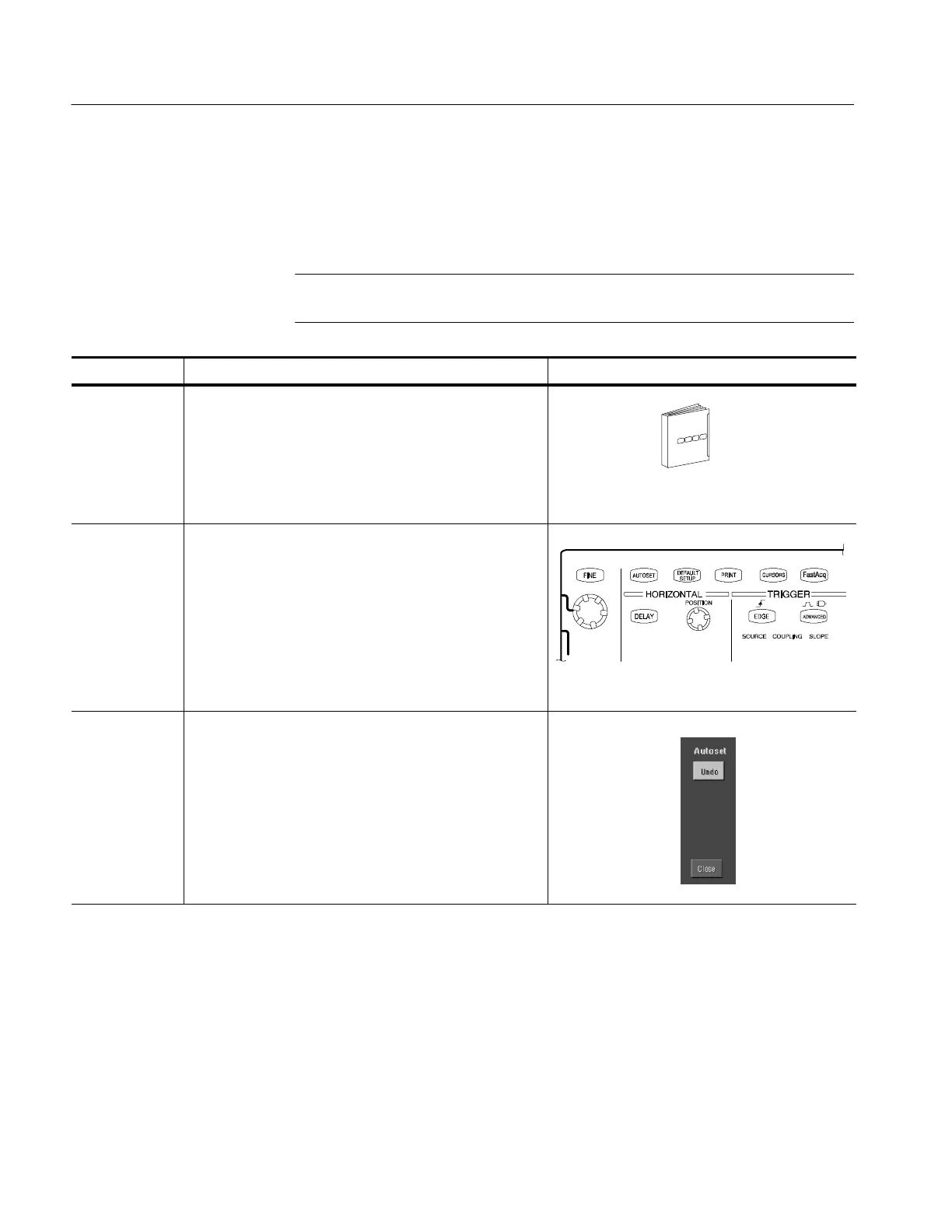

1. Signals must be connected to channels. A triggering
source must be provided.
Refer to page 3--49 in this manual for trigger setup
information.
Execute
Autoset
2. Push the AUTOSET button to execute an Autoset.
If you use Autoset when one or more channels are
displayed, the oscilloscope selects the lowest numbered
channel for horizontal scaling and triggering. You can
individually control the vertical scaling of each channel.
If you use Autoset when no channels are displayed, the
oscilloscope turns on channel one (CH 1) and scales it.
Execute
Autoset Undo
3. The Autoset Undo control window opens automatically
after an Autoset operation. Click Undo if you want to
undo the last Autoset .
Only the parameters that were set by the last Autoset
are undone. Parameters that you changed that are not
controlled by Autoset retain their settings.
Autosetting the
Oscilloscope
