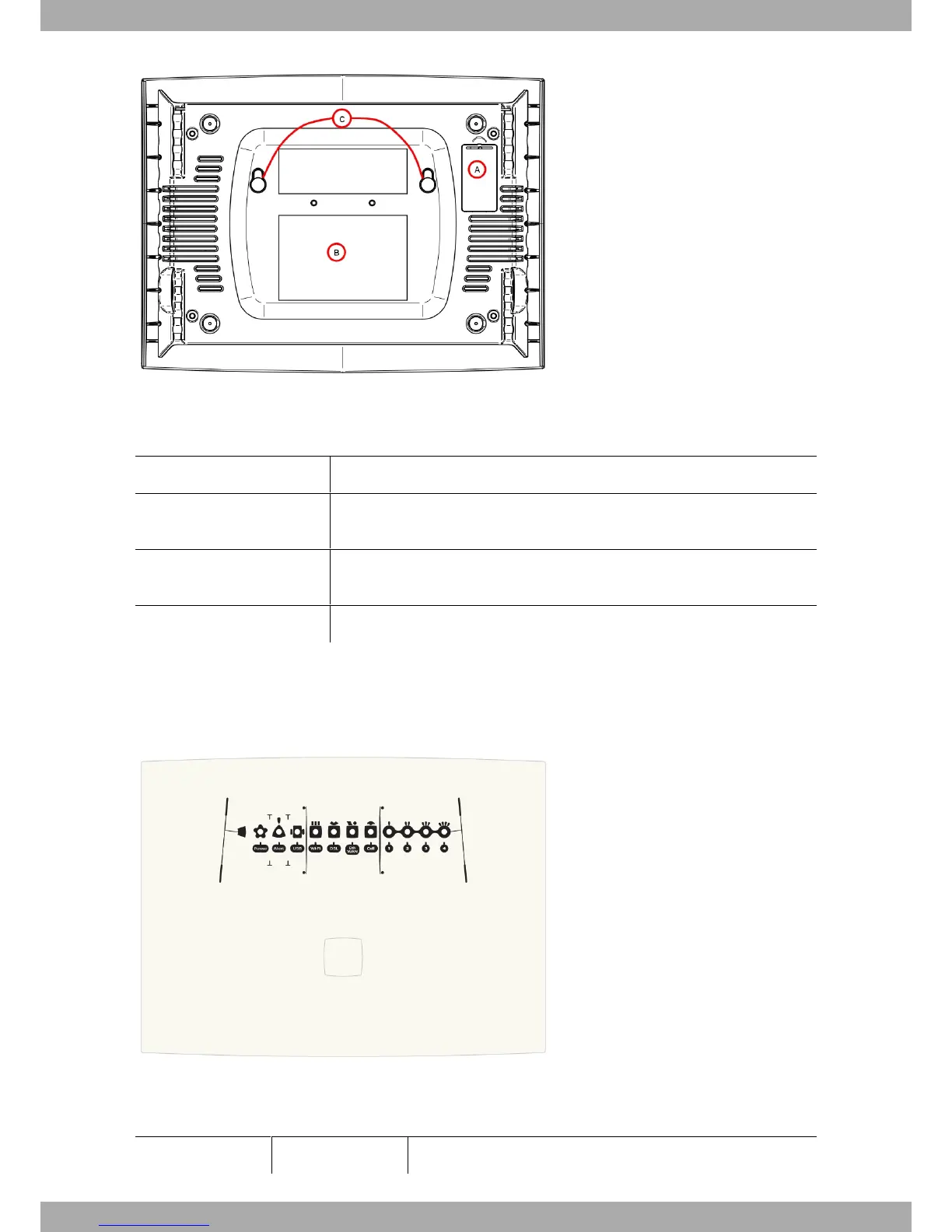

Fig. 4: Underside Panel
The following table contains details on the elements located on the underside panel.
Underside panel elements table
Item Description
A SIM tray for the 3G internal module. This is accessed from the underside of the
router.
B Platform where the label containing the product information is located. Said label
contains information on the device model, mac, serial number, etc.
C Slots for wall mount.
3.1.5 Top Panel (LEDs)
The LEDs panel provides information on the status of the components (whether they are active or not) and on the
network activity.
Fig. 5: LEDs panel
The Teldat V router LEDs are shown in the above figure. The table below contains a description of them.
LEDs table
LED Status Description
3 Components and Power Supply Teldat S.A.
6 Teldat V Router
