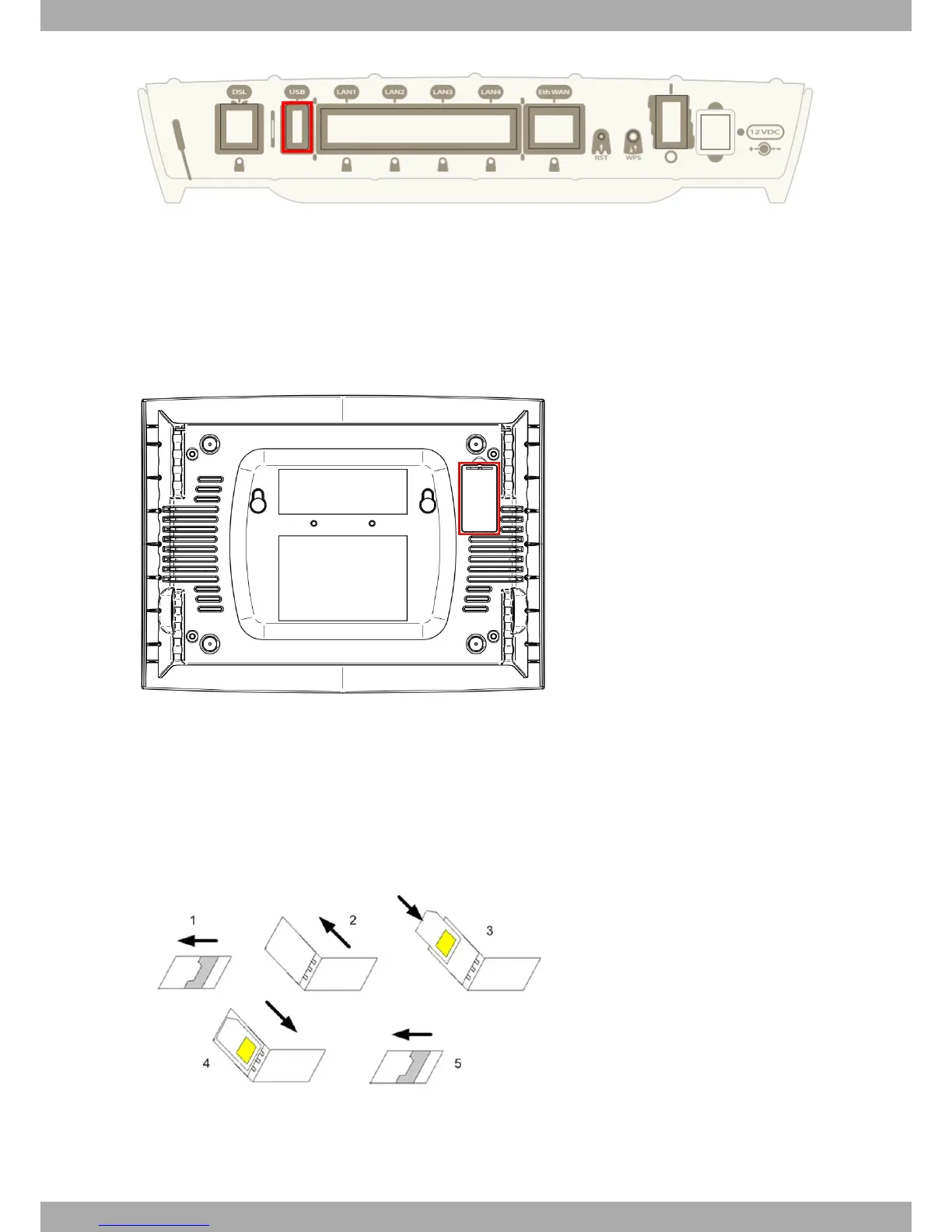

Fig. 17: USB 3G Connector
3.7 Installing the SIM card
The Teldat V has a Wireless WAN interface that, in order to operate, requires one SIM card to be inserted into the
device. Certain services (CDMA) provided by several carriers in some countries do not require SIM cards.
To access the 3G module SIM tray, go to the underside of the router and open the flap (shown in the figure below).
Fig. 18: 3G module SIM tray
To insert the SIM, first locate the slot and remove the flap until the SIM tray is visible. Then follow these steps:
(1) Push the fastening in the direction indicated by the OPEN label.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the slot guides.
(4) Return the tray to its original position.
(5) While pressing on the tray, push the fastening towards the inside of the tray until it is firmly in place.
Fig. 19: Inserting the SIM in the 3G module
3 Components and Power Supply Teldat S.A.
16 Teldat V Router
