Teleco TVPLA868AC2 - Motor Configuration; 2.1 Pergola with 1 Motor

4
DIP4=OFF
DIP5=OFF

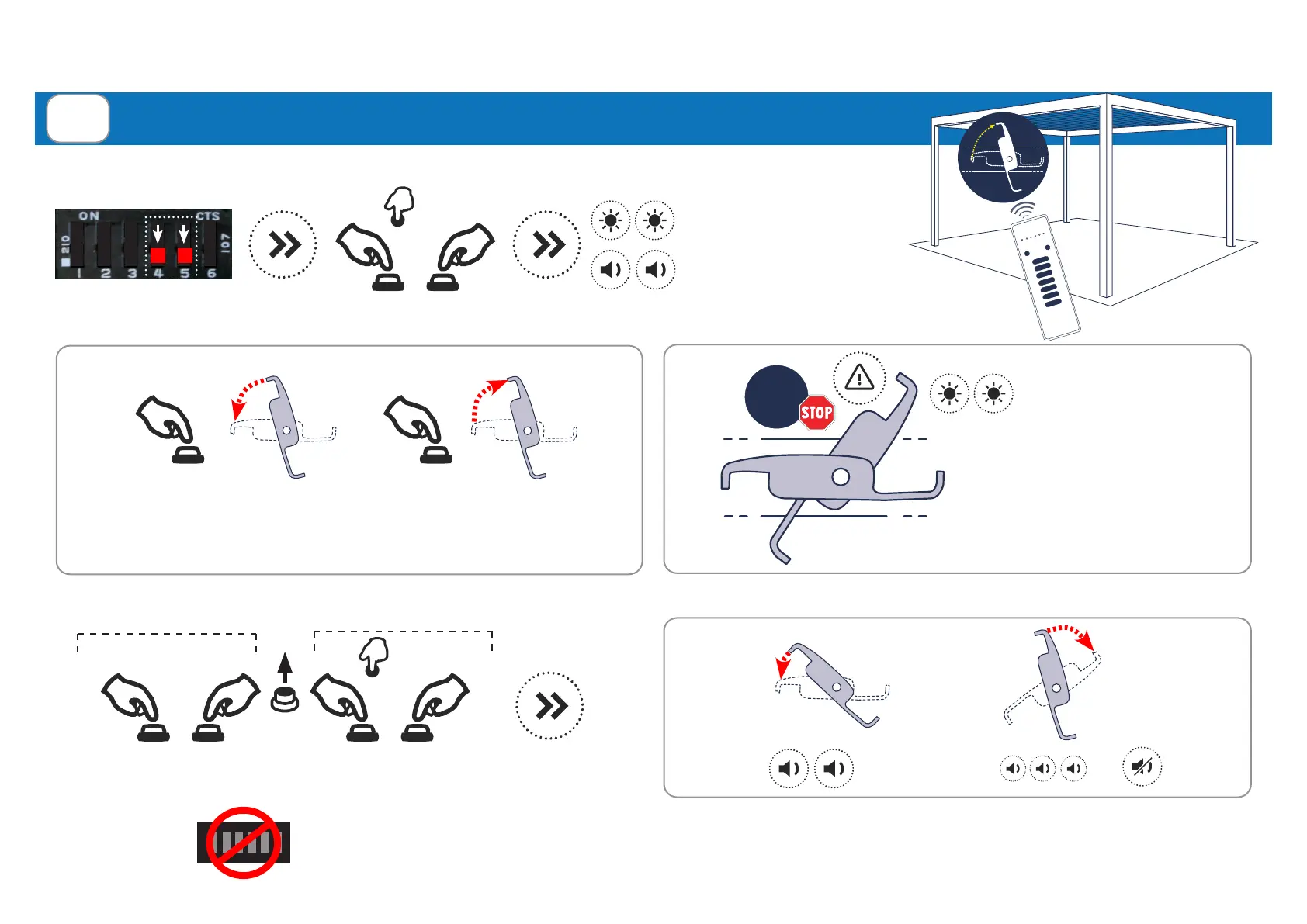

PERGOLA WITH 1 MOTOR
1. MOTOR CONFIGURATION
2. SELF-LEARNING OF LIMIT SWITCHES
ATTENTION:
ON
1 2 3 4 5 6
...
Continuous sound
L3 ashes
Press P1 and P2 simultaneously
and hold for 5 s
Press P1 and P2 simultaneously twice in quick succession and
hold them the second time for 5 s
...
P2
+
P1
( 5 s)
DO NOT change the DIP conguration. This change would be signalled by a new intermittent sound and the ashing of L3,
and would require a new conguration procedure.
2.1
LIMIT SWITCHES
CLOSE
OPEN
DIRECTION
P1 P2
If the direction is wrong, invert the wires corresponding to the motor phases
(terminals 3 and 5).
= =
P2
+
P1
( 5 s)
P2
+
P1
complete
closing
complete
opening
...
...
Closing
Opening
M
Check that movement stops
when the limit switch is
reached (L2 ashes).
...
L2 ashes
(*) Maximun time with the key pressed 90s.
Note: Time out after 30s or pressing the push button.
(*)
(*)
< 1 s
MOTOR CONFIGURATION: Identify the correct product application from the 3 given below and follow the relative conguration procedure.
Attention: if the wrong application is selected, the conguration procedure must be repeated for the correct application.
keep pressed
keep pressed
