Telestar SATPLUS 4 - 4 Geräteübersicht; Bedienfeld und Anschlüsse

D
1110
Bedienungsanleitung
4. GERÄTEÜBERSICHT

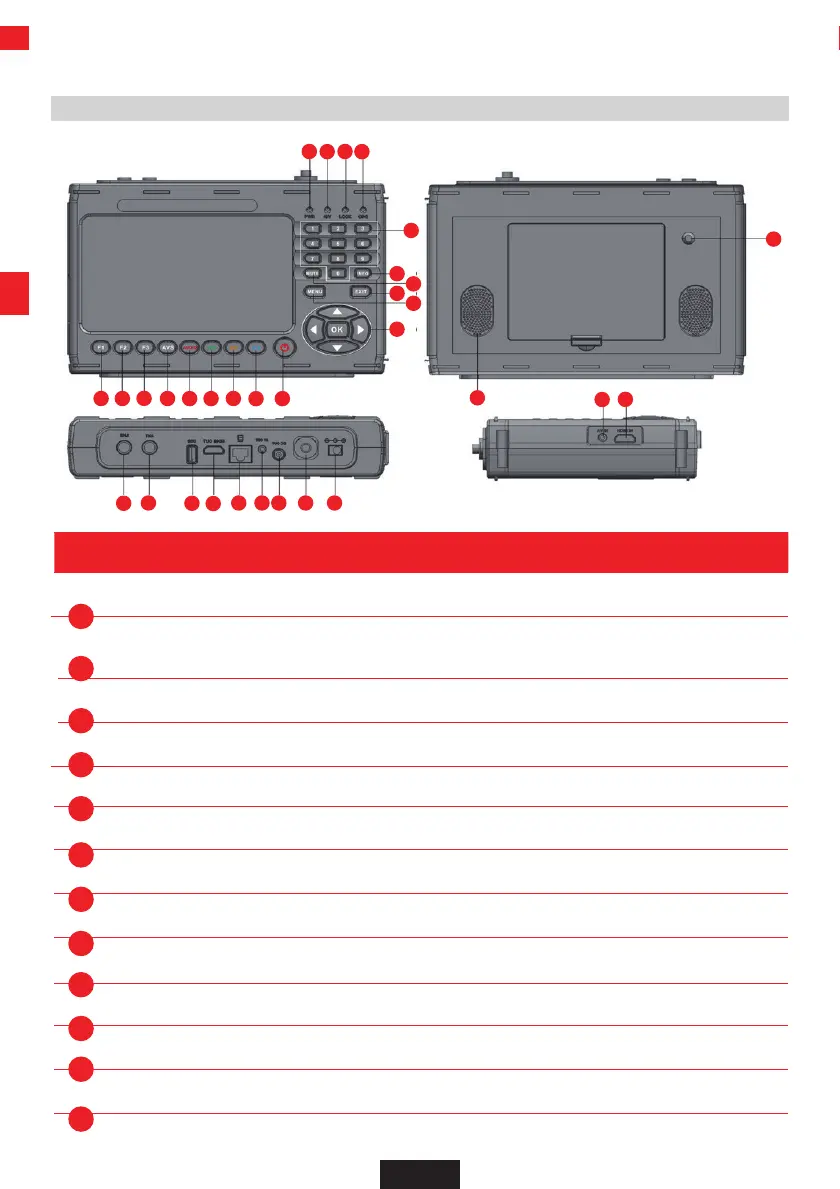

4.1 Bedienfeld und Anschlüsse
3
English
1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description FUNCTION
1 Power
Power indicator light
2 H/V
Vertical /Horizontal polarization voltage output light
3 LOCK
Signal lock indicator light
4 CHG
Charger indicator light
5 0-9
Number key to select channels or enter programming
6 INFO
INFO key
7 MUTE
MUTE
8 EXIT
Escape from present menu and save the settings
9 MENU
Show the main menu on the screen or jump back to
previous menu in sub-menu setting conditions
10 NEVIGATION KEY
Volume Control or move cursor, channel or change,
confirm etc
11 F1
Auxiliary function key
12 F2
Auxiliary function key
13 F3
Auxiliary function key
14 AVS
Signal source switch key
15 Red & AUDIO
Red KEY & Audio setting
16 Green & TV/R
Green key & TV and radio switch
17 Yellow & SAT
Yellow key & Shortcut key for Satellite
18 BLUE & SYS
Blue key & Shortcut key for System setting
19 Power Switch
Turn on/o meter
20 LNB In
Connect to satellite cable
21 ANT IN
Connect to antenna
1
2
3
4
5
6
3
English
1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description FUNCTION
1 Power
Power indicator light
2 H/V
Vertical /Horizontal polarization voltage output light
3 LOCK
Signal lock indicator light
4 CHG
Charger indicator light
5 0-9
Number key to select channels or enter programming
6 INFO
INFO key
7 MUTE
MUTE
8 EXIT
Escape from present menu and save the settings
9 MENU
Show the main menu on the screen or jump back to
previous menu in sub-menu setting conditions
10 NEVIGATION KEY
Volume Control or move cursor, channel or change,
confirm etc
11 F1
Auxiliary function key
12 F2
Auxiliary function key
13 F3
Auxiliary function key
14 AVS
Signal source switch key
15 Red & AUDIO
Red KEY & Audio setting
16 Green & TV/R
Green key & TV and radio switch
17 Yellow & SAT
Yellow key & Shortcut key for Satellite
18 BLUE & SYS
Blue key & Shortcut key for System setting
19 Power Switch
Turn on/o meter
20 LNB In
Connect to satellite cable
21 ANT IN
Connect to antenna
7
8
3
English
1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description FUNCTION
1 Power
Power indicator light
2 H/V
Vertical /Horizontal polarization voltage output light
3 LOCK
Signal lock indicator light
4 CHG
Charger indicator light
5 0-9
Number key to select channels or enter programming
6 INFO
INFO key
7 MUTE
MUTE
8 EXIT
Escape from present menu and save the settings
9 MENU
Show the main menu on the screen or jump back to
previous menu in sub-menu setting conditions
10 NEVIGATION KEY
Volume Control or move cursor, channel or change,
confirm etc
11 F1
Auxiliary function key
12 F2
Auxiliary function key
13 F3
Auxiliary function key
14 AVS
Signal source switch key
15 Red & AUDIO
Red KEY & Audio setting
16 Green & TV/R
Green key & TV and radio switch
17 Yellow & SAT
Yellow key & Shortcut key for Satellite
18 BLUE & SYS
Blue key & Shortcut key for System setting
19 Power Switch
Turn on/o meter
20 LNB In
Connect to satellite cable
21 ANT IN
Connect to antenna
9
10
11 12
13
14
15 16
17
18
19
20
21
22
23 24
25 26 27 28
29
30
31
32
NR. BEZEICHNUNG FUNKTION
PWR Power LED. Leuchtet rot im Betrieb.
H/V
Polarisationsstatus:
Rot-Horizontal (18V) / Grün-Vertikal (13V)
LOCK Signal liegt an. Datenstrom wird empfangen.
CHG Batterie Kontroll Status Gelb: Akku wird geladen.
Tastertur Zur Direkteingabe eines Wertes.
INFO Ruft Empfangsparameter eines eingestellten Pprogramms auf.
MUTE Schaltet den Lautsprecher stumm.
EXIT Verlassen des aufgerufenen Menüs.
MENU Ruft das Menü auf. Erneutes Drücken schaltet einen Menüpunkt zurück.
Navigationskreuz Zur Navigation im Menü. Taste OK bestätigt eine Auswahl.
F1 Ruft unterschiedliche Funktionen abhängig vom Betriebsmodus auf.
F2 Ruft unterschiedliche Funktionen abhängig vom Betriebsmodus auf.
1
11
12
2
3
4
5
6
7
8
9
10
