ECLIPSE 8/16/32/99 Series – User Operation Manual
8

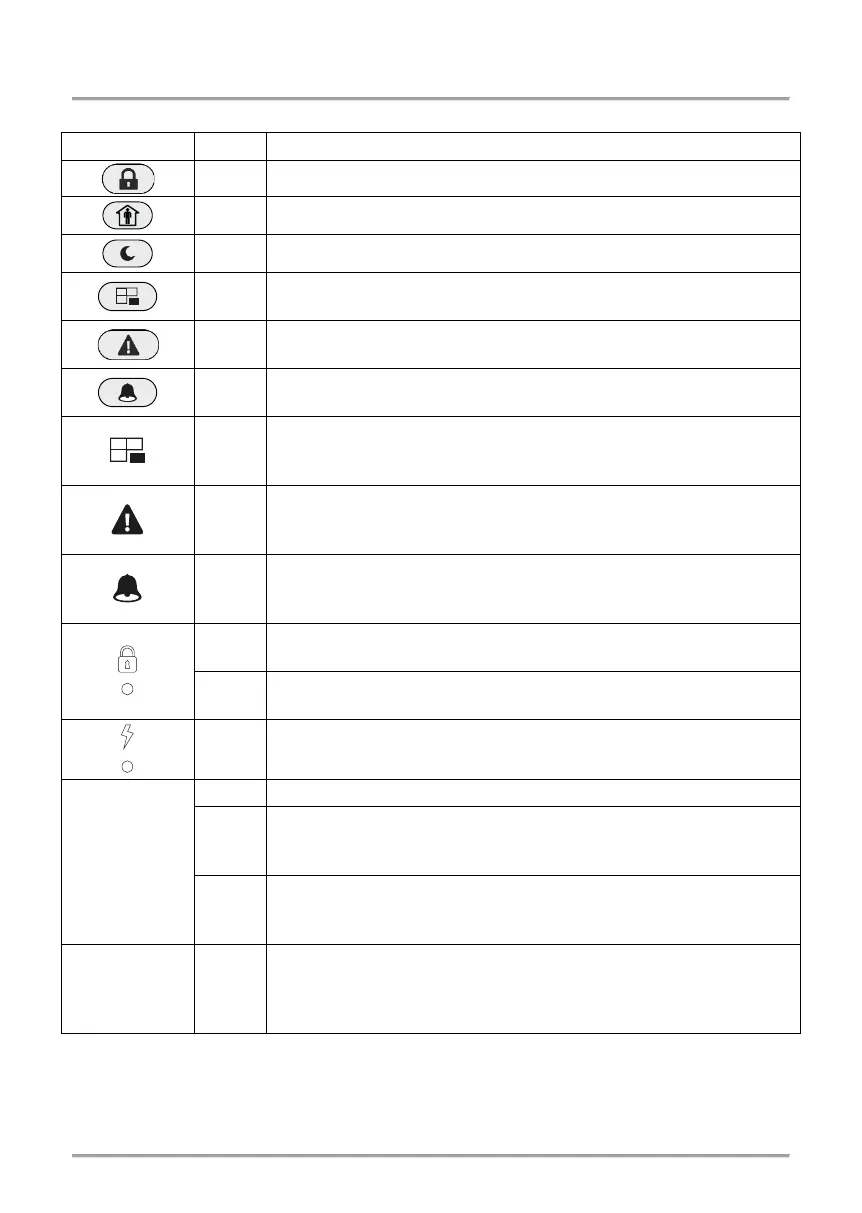

2.4 Indication
Button/LED
Color
Description
Red The area is in FULL ARM mode.
Red The area is in STAY ARM mode.
Red The area is in SLEEP ARM mode.
Red
Permanently lit - there are bypassed zones in the system.
Blinking - review of the bypassed zones in the system.
Red
Permanently lit - there are system troubles.
Blinking - review of the system troubles.
Red
Permanently lit - there are recorded memory log events.
Blinking - review of the memory log events.
Red
Indication for bypassed zones in keyboards LED8 and LED 16A.
Permanently lit - there are bypassed zones in the system.
Blinking - review of the bypassed zones in the system.
Red
Indication for system faults in keyboards LED8 and LED 16A.
Permanently lit - there are system troubles.
Blinking - review of the system troubles.
Red
Indication for memory events in keyboards LED8 and LED 16A.
Permanently lit - there are recorded memory log events.
Blinking - review of the memory log events.
Green
The system is disarmed or only certain areas in the system are
armed.
Red
All used areas in the system are armed.
Blinking in programming mode.
White
Permanently lit - power supply from the panel; lit off - no power
supply from the panel. Blinking in programming mode.
Areas:*
А, В and C
A1 – A8
Off
The area is not used.
Green
Permanently lit - the area is disarmed.
Blinking - the area is ready to be armed after user code is
entered and selected arming type.
Red
Permanently lit - the area is armed.
Blinking - entry/exit time is running; showing the available areas
to disarm after a user code has been entered.
Zone
numbers*
Red
Permanently lit - indication for trouble or when the bypassed
zones, system troubles or events are being viewed.
Blinking - indication for an open zone when the system is
disarmed.
* The indication applies only to LED keyboards
