800 SPECIFICATIONS
801 CONTROLLER SPECIFICATIONS
» Indoor use
» Attitude up to 2000 m
» Temperature 5° C to 40° C
» Maximum relative humidity 80% for temperatures up tp 31° C decreasing linearly to
50 % relative humidity at 40° C
» Overvoltage category - category ll of lEC 60364-4-443
» Rated pollution degree: 2
» Voltage 115/230 VAC ±10%
» Frequency 50 - 60 Hz.
» Input Current (Max.)
2A @ 115V
1A @ 230V
» Input Power (Max.)
230W
» Calibration medium Dry Air, (or Nitrogen)
» Oper. temp. (tube) 0 to 65°C
» Setpoint Relays Assignable to any station 5A 120 VAC or dry circuit
» Output Analog 0-10 VDC
» Weight (instrument) 5 lbs.
802 CONTROLLER DIMENSIONS
The controller dimensions and cut out dimensions are given in Figure 8.1

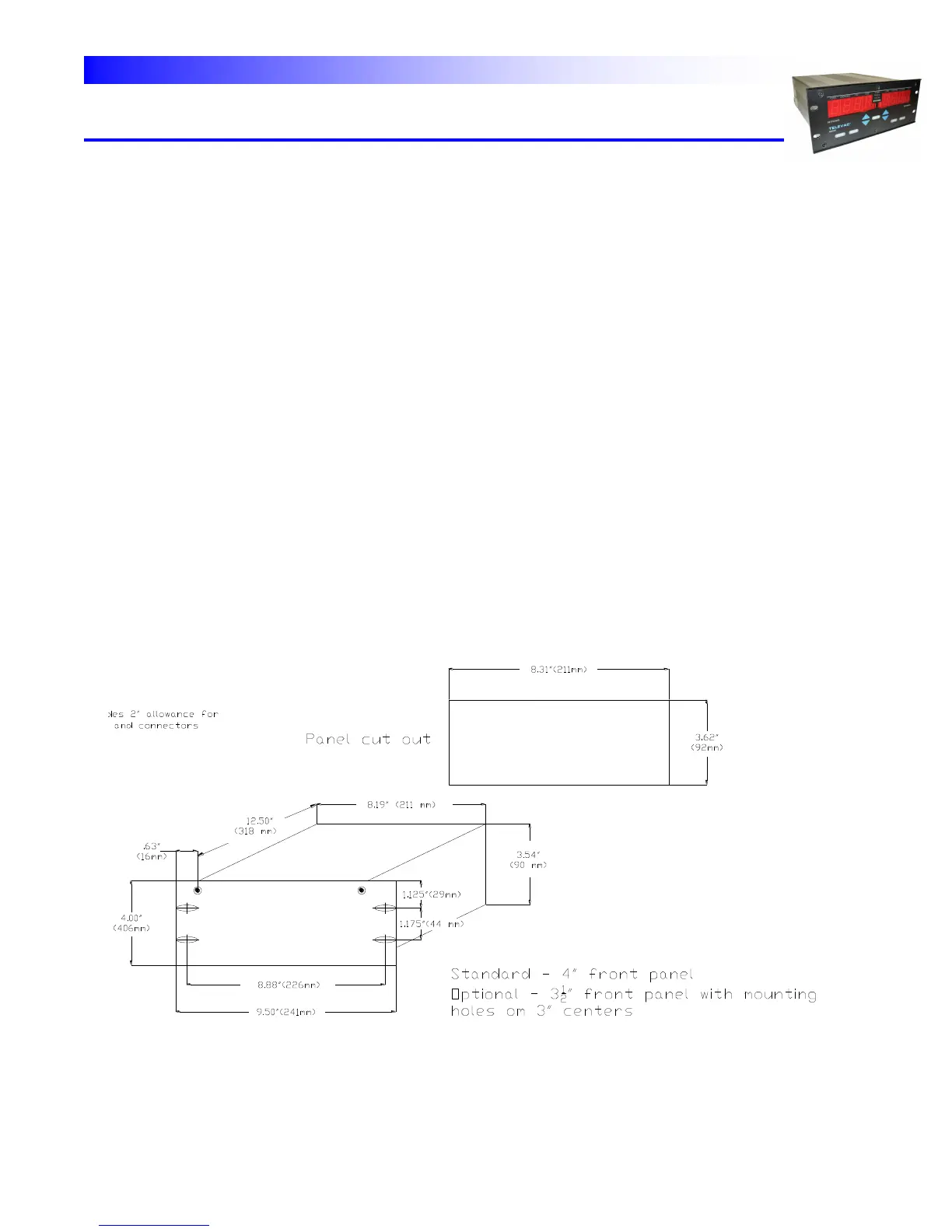

Fig. 8.1 - Dimensions for Modular Gauge
