307 REMOVAL AND INSTALLATION OF MODULES
Mounting screws are located at the top and the bottom of each module. To remove a module, remove both screws
and pull on the rear panel of the module. If necessary, use a small screwdriver to start the module moving by
prying between the module and the enclosure. The module will then slide out easily (See Fig. 3.3).

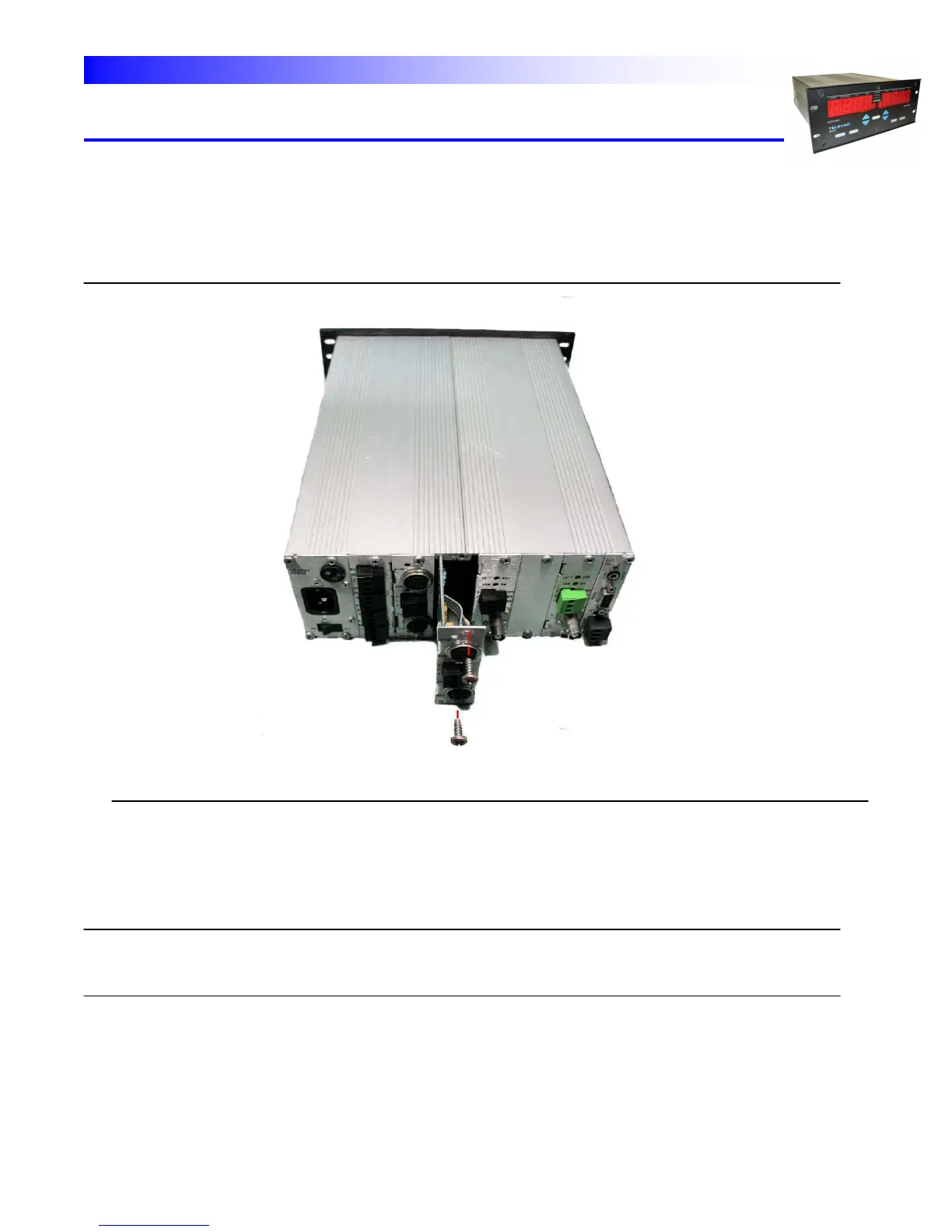

Fig. 3.3 - Removal / Installation of Modules
To install a module, slide it in place along the track and firmly press it into the mating socket connector. Reinstall
screws.
If you wish to add optional modules, install them as outlined below:
WARNING: TO AVOID POSSIBLE SHOCK, DISCONNECT THE POWER CORD FROM THE
CONTROLLER.
