3F HOT CATHODE MINI-BA MODULE (Software ver. 2.31 or higher) - The 3F hot cathode mini-BA module
occupies 2 slots inside the mm200 unit. If one module is to be installed, it must be configured to station 5. If a
second module is to be installed, it must be configured to station 6.

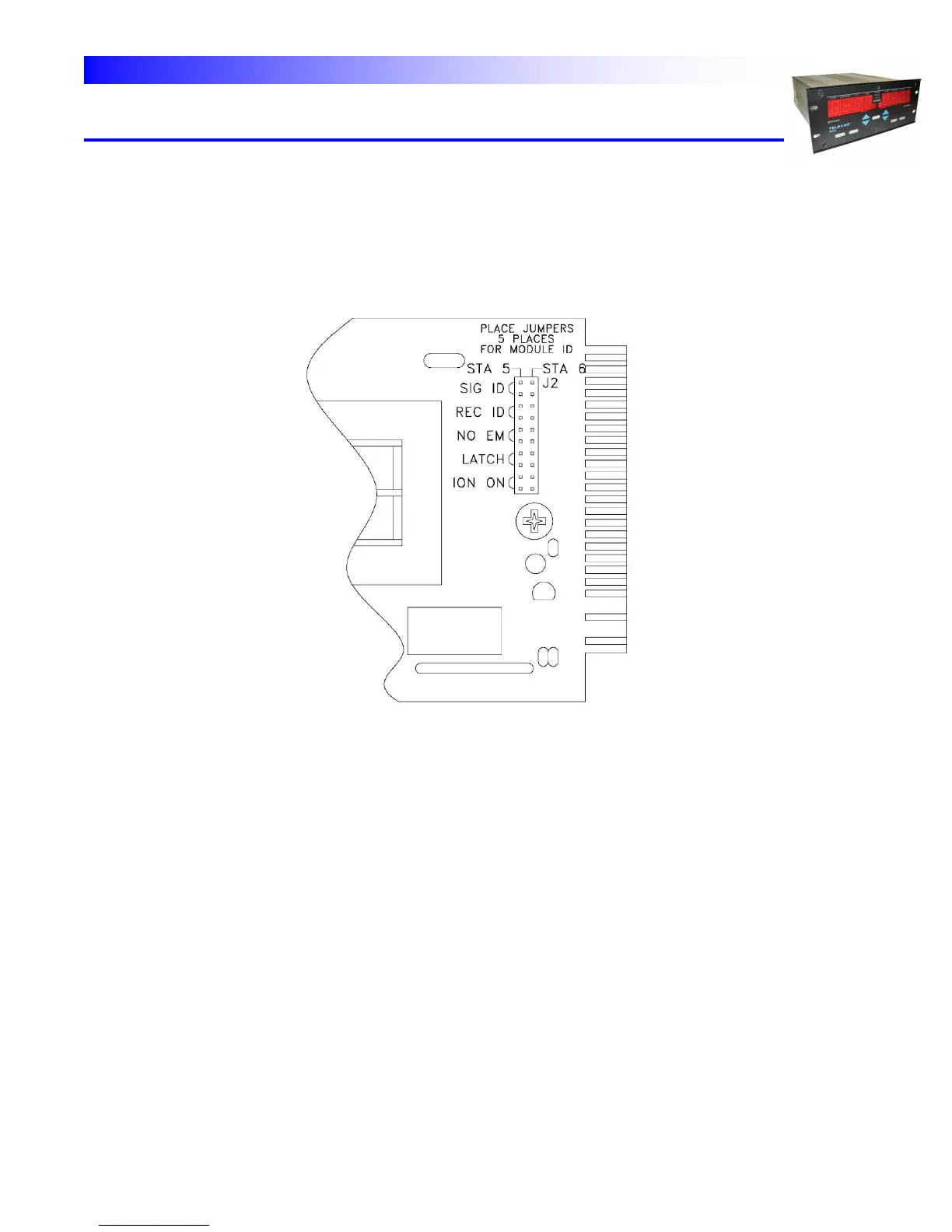

Place 5 jumpers vertically for station 5. If two 3F hot cathode mini-BA modules are to be used, place 5 jumpers
vertically in station 6 for the second module.
When installing the modules into the unit, make sure that the card edge fingers align with the connectors inside the
unit. Make sure that the module is properly seated in the connectors then install the 4 screws per module in the
back panel.
