INSTRUMENT MANUAL
VACUUM GAUGE MODEL MM200
160Phone:(215) 947-2500 fax:(215) 947-7464 e-mail:sales@televac.com web site:www.televac.com
MM-200_im REV M
Page 23 of 160
302 LINE VOLTAGE SELECTION
The instruments are shipped from the factory with the line voltage set at 110 for 100-120 VAC operation and
operates at 50-60 Hz. If 200-240 VAC operation is desired, refer to Section 203 for procedure.
303 GAUGE CONTROLLER INSTALLATION
FREE STANDING
The instrument can be used as a freestanding unit, panel mounted or mounted in a standard 19" rack.
RACK MOUNTED - A rack adapter kit is required to rack mount one or two controllers in a standard 19" rack.
Refer to Fig. 3.2 for component configuration.
For one controller, install the small interconnecting adapter to the unit and then the long filler panel to the inter-
connecting adapter. Use the four (4) screws, nut and washers provided. Alternately use the adapter fillers.
For two controllers, install the two (2) small interconnecting adapters, in front and in back, between the two units.

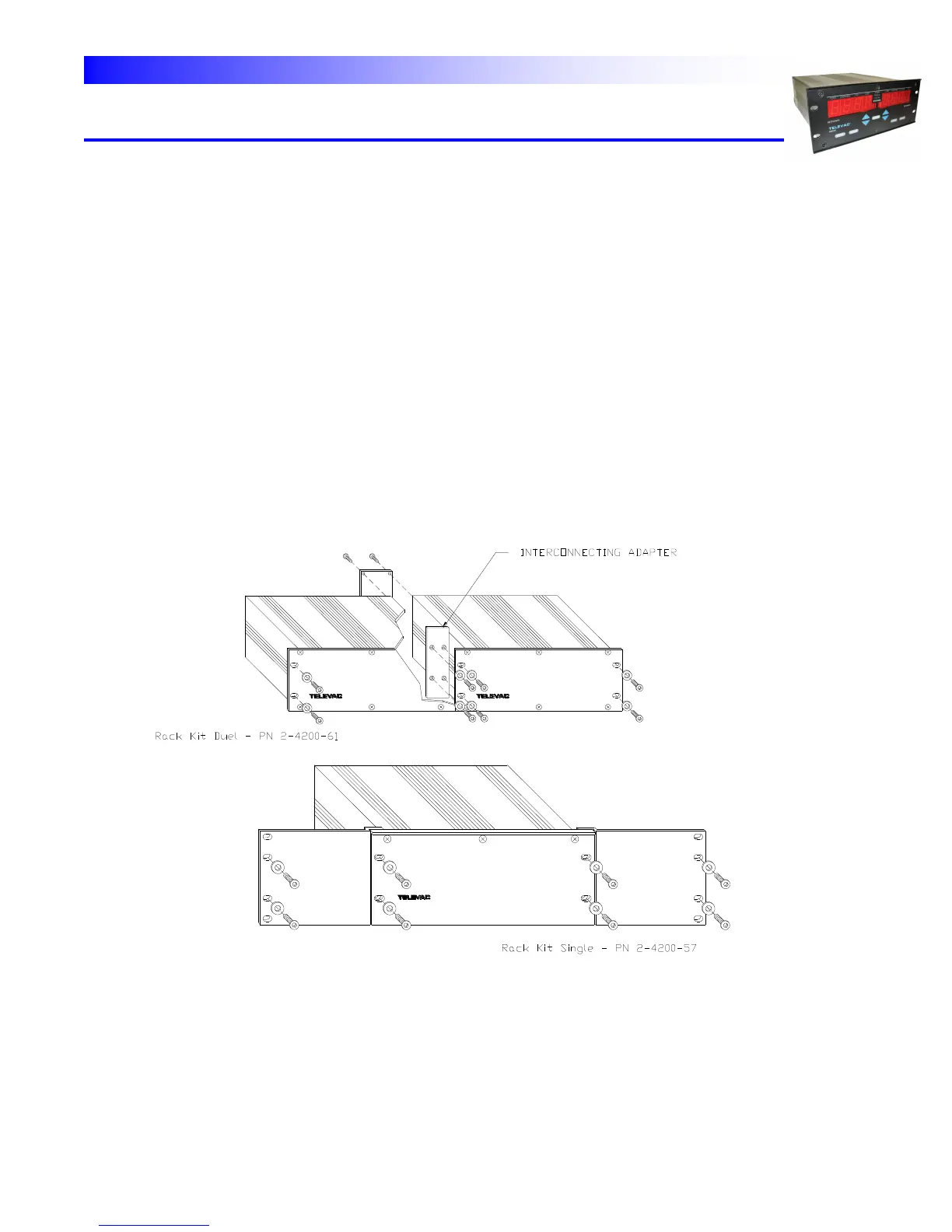

Fig. 3.2 – Rack Adapter Details
