The rear panel of the hot cathode mini-BA module is shown below. The gauge tube cables are connected to the ion
collector and the 9-pin ion gauge connector. An analog output (normally 0 to 10 VDC) is available at the connector
in the upper right as shown below. There are three terminals available. The lower terminal is a common ground and
negative terminal for both the upper two terminals. The upper two terminals are for +10 volts and +10 millivolts
respectively.

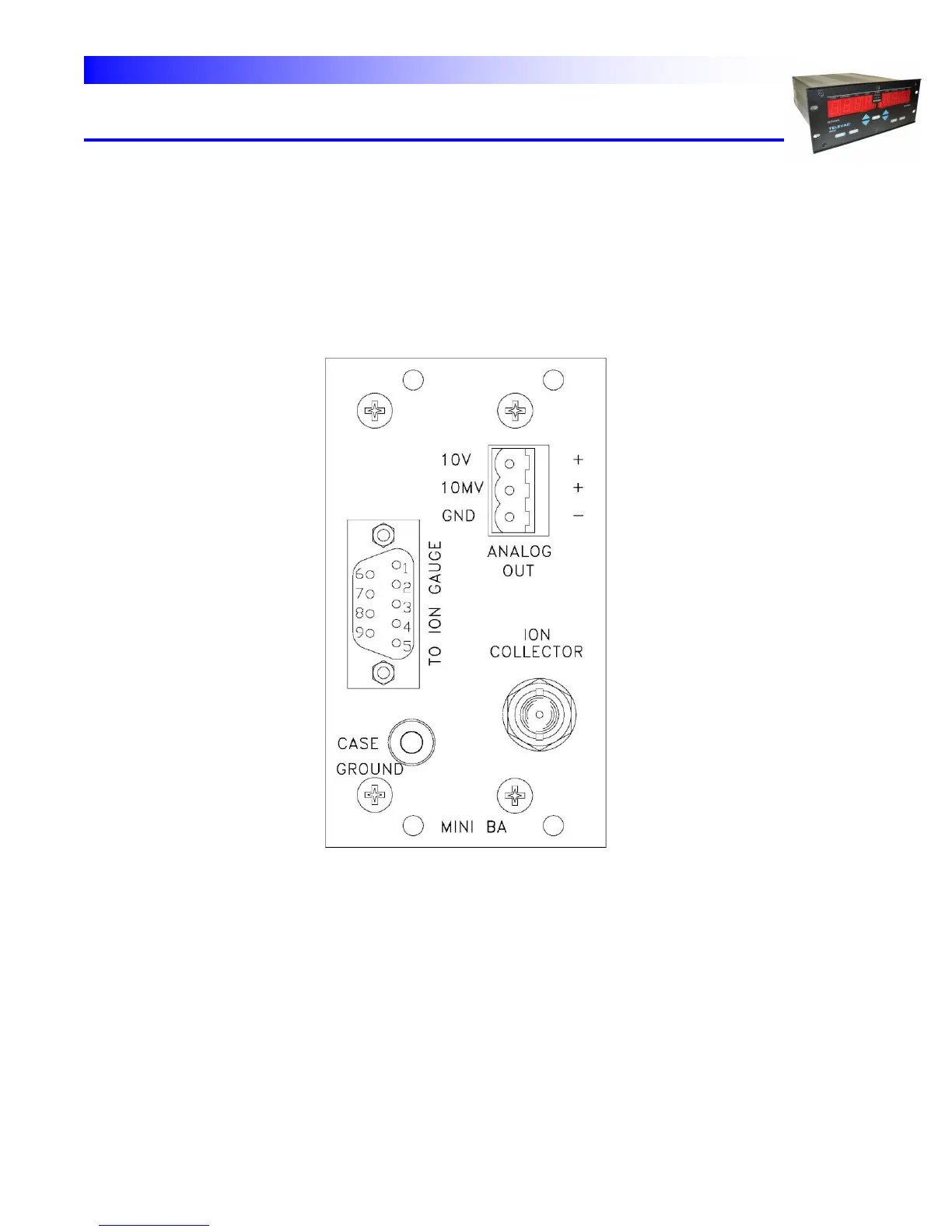

3F hot cathode mini-BA back panel
