INSTRUMENT MANUAL
VACUUM GAUGE MODEL MM200
160Phone:(215) 947-2500 fax:(215) 947-7464 e-mail:sales@televac.com web site:www.televac.com
MM-200_im REV M
Page 136 of 160

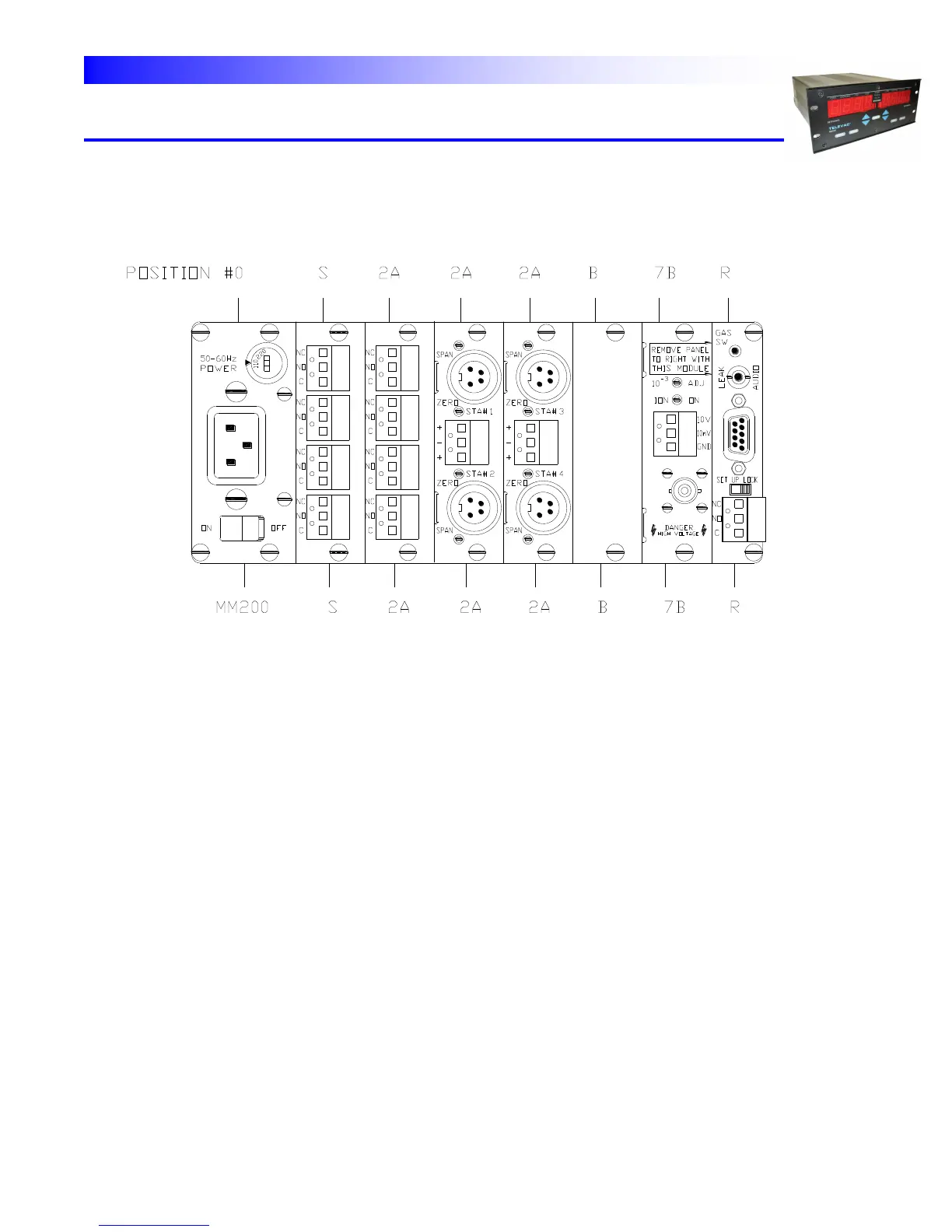

EXPANSION SLOT
MM200 - Microprocessor with power supply,
4 relays, 7 stations and RS232:
SLOT 1: S - 4 relay module (5 amp, 120VAC)
SLOT 2: 2A - Dual thermocouple module (2 stations)
SLOT 3: 2A - Dual thermocouple module (2 stations)
SLOT 4: 2A - Dual thermocouple module (2 stations)
SLOT 5: B1 - Blank panel
SLOT 6: 7B - Single cold cathode module (1 station)
SLOT 7: R - RS232 / RS485 module (no stations)
NOTES:
1. SLOT 0 contains the power supply module
2. SLOT 7 has a blank panel for ANALOG gauges and can have an RS232 /
RS485 module for the microprocessor based DIGITAL gauge
