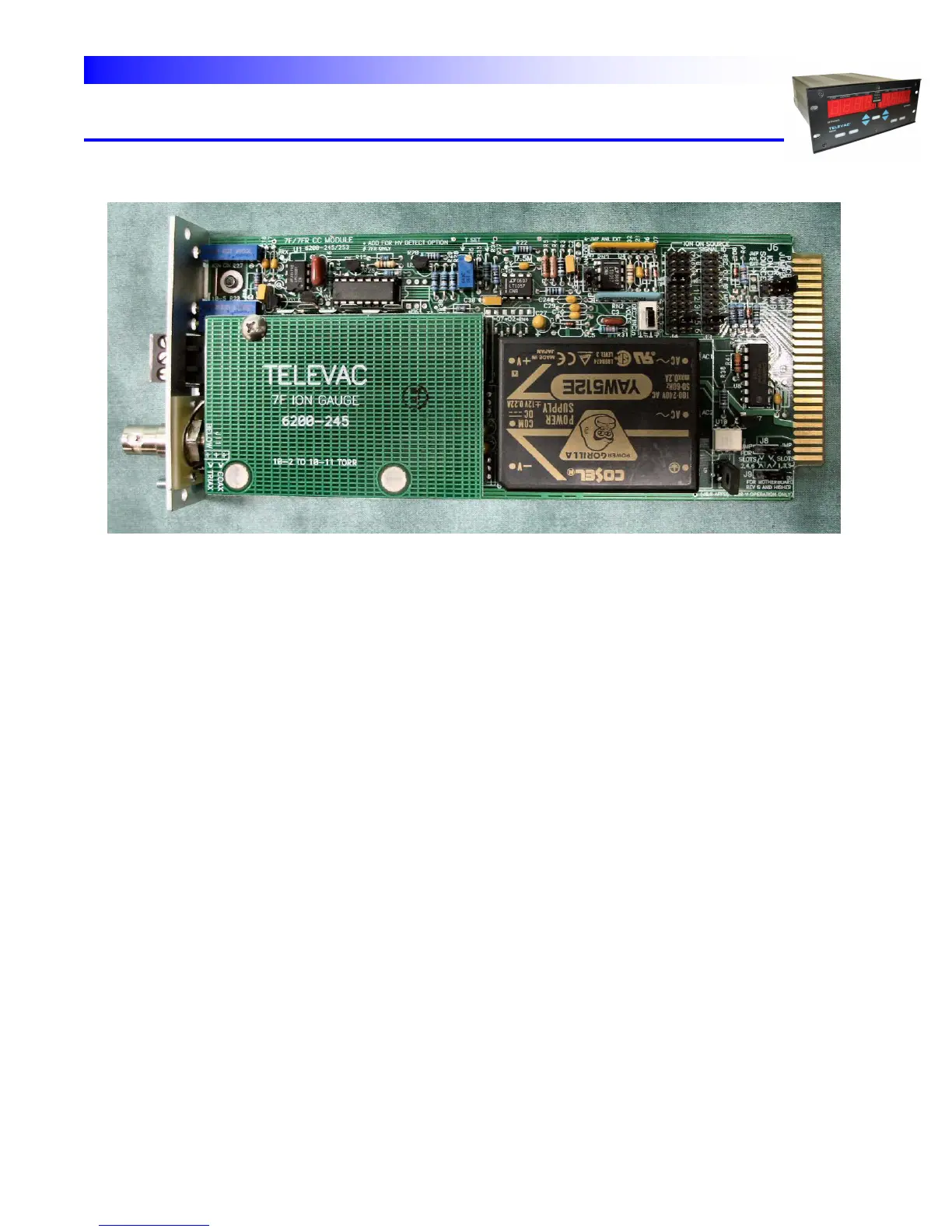

Fig. 9.4b – 7F Cold Cathode Gauge Module
Additional jumpers are required as shown below. Finally, there is a switch, S1, which must be placed in the MP
position.
Board # Type Jumpers (Factory set)
2-6200-227* 7B2 J1 in 7B MP, J3 in MP
2-6200-223* 7E J1 in 7E, J3 in MP
2-6200-245 or –285 7F UHV J5 in MP, J8, J9 as noted
J11 Select for type cable
* Combined 2-6200-223/227 board
