INSTRUMENT MANUAL
VACUUM GAUGE MODEL MM200
160Phone:(215) 947-2500 fax:(215) 947-7464 e-mail:sales@televac.com web site:www.televac.com
MM-200_im REV M
Page 149 of 160
DIAPHRAGM MODULES- Diaphragm modules are shown in Fig. 9.5a and 9.5b. This module is typical of all
modules. The assignment of station identification numbers on a diaphragm module is accomplished by placing
jumpers across the appropriate pins in the SIGNAL ID and the REC OUT ID sections. The upper diaphragm station
has been named station #3 and the lower thermocouple station has been named station #4 as an example. Do not
duplicate station # assignments with other modules. Also two (2) jumpers are placed in the "MP" positions of the
ANALOG/MP section of the board.

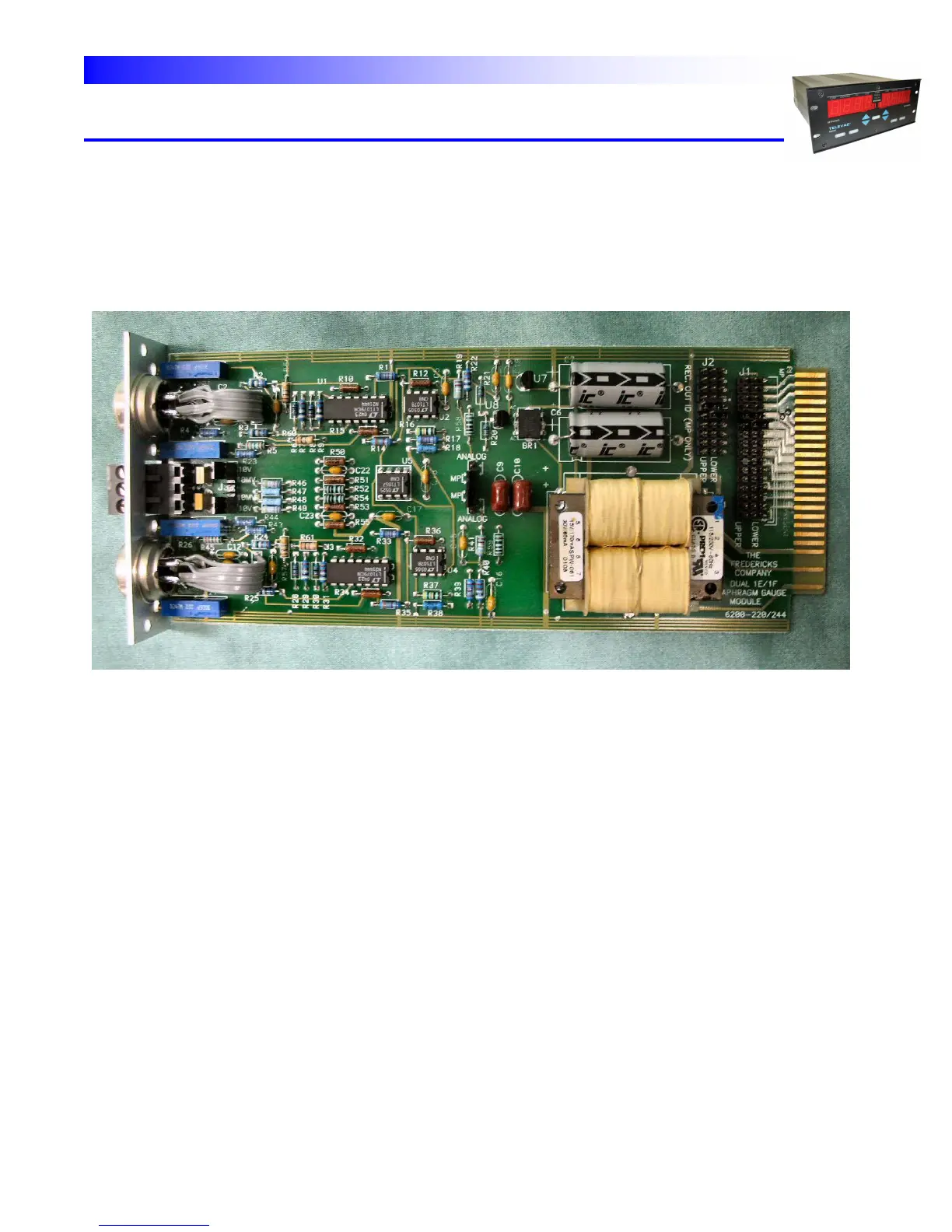

Fig. 9.5a - Diaphragm Module
