TELEVAC MM200 - Page 155

INSTRUMENT MANUAL
VACUUM GAUGE MODEL MM200
160Phone:(215) 947-2500 fax:(215) 947-7464 e-mail:sales@televac.com web site:www.televac.com
MM-200_im REV M
Page 154 of 160
TELEVAC
3E HOT CATHODE MODULE

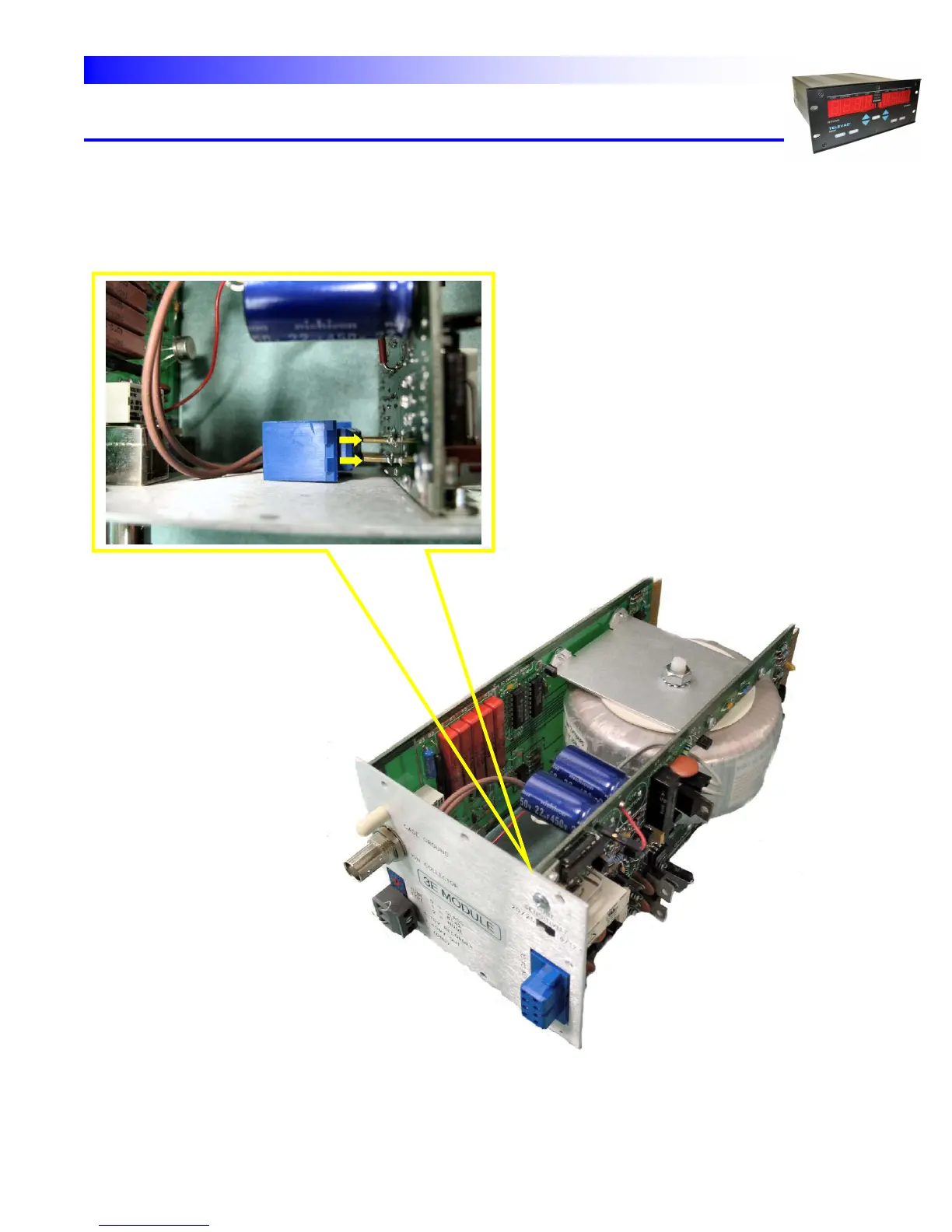

Fig. 9.7b - 3E Hot Cathode Module Details
WHEN MATING J1A CONNECTOR V-
GROVE TOWARD THE TRANSFORMER
FLAT SURFACE TOWARD THE BACK
PANEL
