LE910Cx-WE866Cx LTE Bundling User Guide
1VV0301578 Rev. 9 Page 19 of 56 2020-05-26
The WE866Cx M.2 card follows the below M.2 specification:
• SDIO based Socket 1
• 2230 size type
• Key type E
This form-factor card specification is intended to support Wireless Connectivity devices
including combinations of Wi-Fi, BT, NFC, and/or GNSS.
The card includes a U. FL miniature RF connector for connecting a compatible wi-fi antenna.
For detailed description of the M.2 Card, refer WE866Cx M.2 Interface Adapter Hardware
User Guide.
The following image shows the M.2 plugged into the MTB.

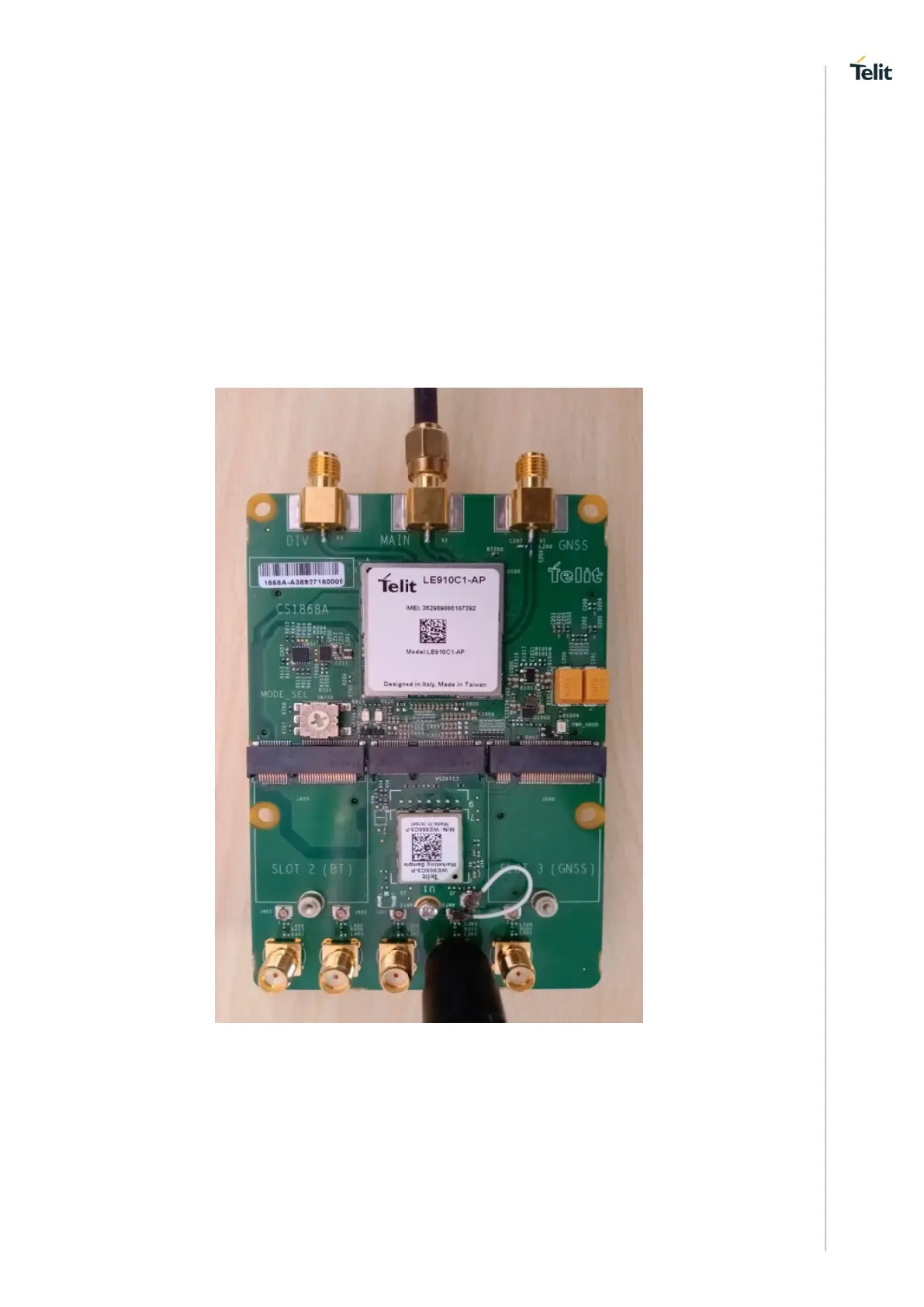

Figure 4-5 M.2 Plugged into MTB
