12.2. Tape & Reel
The LE910C1 can be packaged on reels of 200 pieces each.
See figure for module positioning into the carrier.

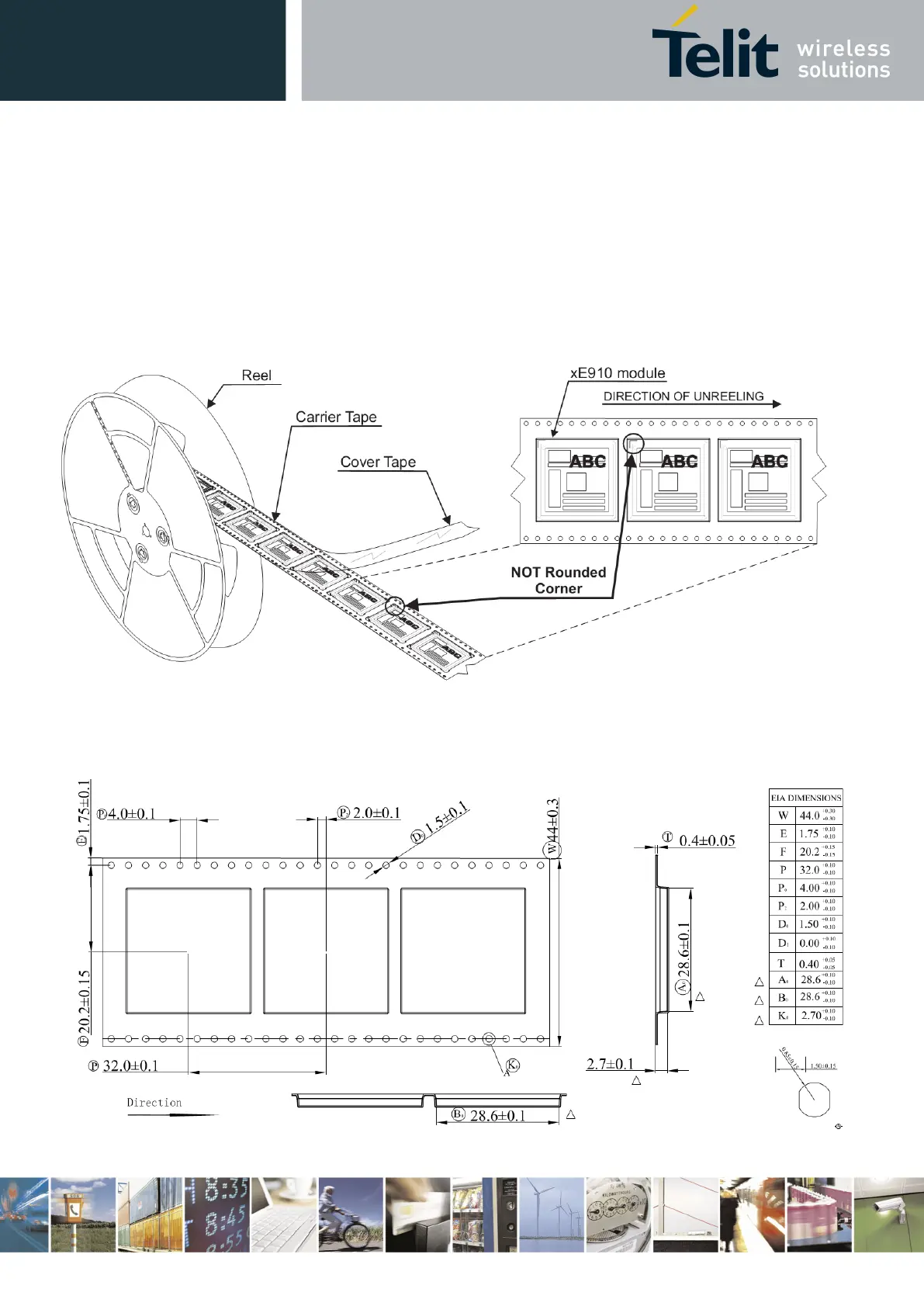

Figure 31: Module Positioning into the Carrier
Figure 32: Carrier Tape Detail
