Telit Wireless Solutions LE910C1-AP - Figure 18: Auxiliary PCM Timing; Long Frame Timing Diagrams

LE910C1 Hardware User Guide
1VV0301298 Rev. 1.08 - 2017-11-14
Reproduction forbidden without written authorization by Telit Communications S.p.A. - All Rights Reserved
Telit Confidential Information, provided under NDA Page
86 of 119
8.6.1.2. Long Frame Timing Diagrams

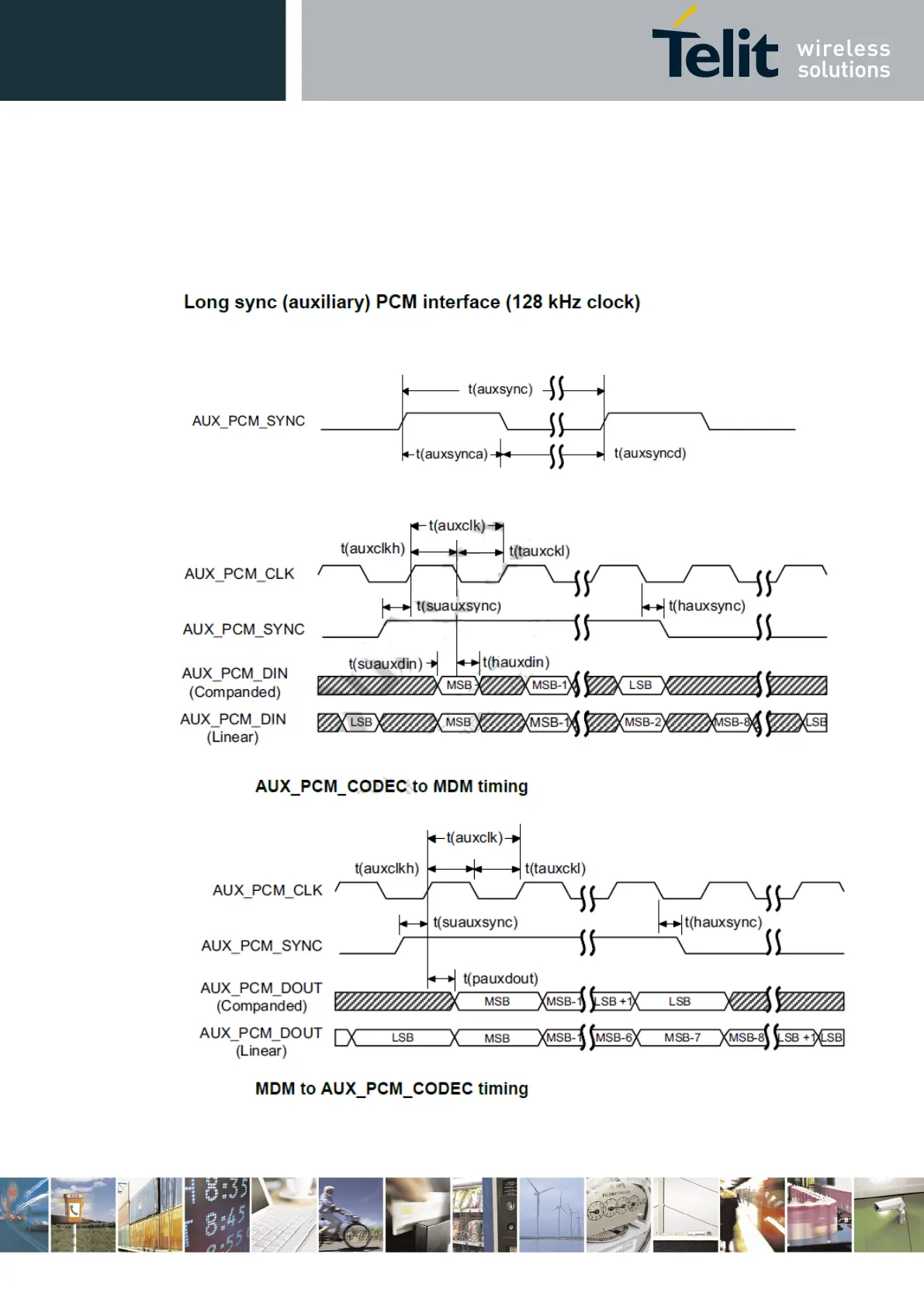

Figure 18: Auxiliary PCM Timing
