8.5. Peripheral Ports
In addition to the LE910C1 serial ports, the LE910C1 supports the following peripheral ports:
• SPI – Serial Peripheral Interface
• I2C - Inter-integrated circuit
• SD/MMC Card Interface
• SDIO Interface
8.5.1. SPI – Serial Peripheral Interface
The LE910C1 SPI supports the following:
• Master Mode only
• 1.8V CMOS level
• Up to 50 MHz clock rate
NOTE:
SPI is supported only on the Linux side.
The LE910C1 module supports Master mode only and cannot be configured as Slave mode.
NOTE:
Simultaneous / Concurrent usage of AUX UART and SPI is not supported.
Table 27: SPI Signals
PAD Signal I/O Function Type Comment
F15 SPI_CLK O SPI clock output 1.8V
E15 SPI_MISO I SPI data Master input Slave output 1.8V Shared with RX_AUX
D15 SPI_MOSI O SPI data Master output Slave input 1.8V Shared with TX_AUX
H14 SPI_CS/GPIO11 O SPI chip-select output 1.8V

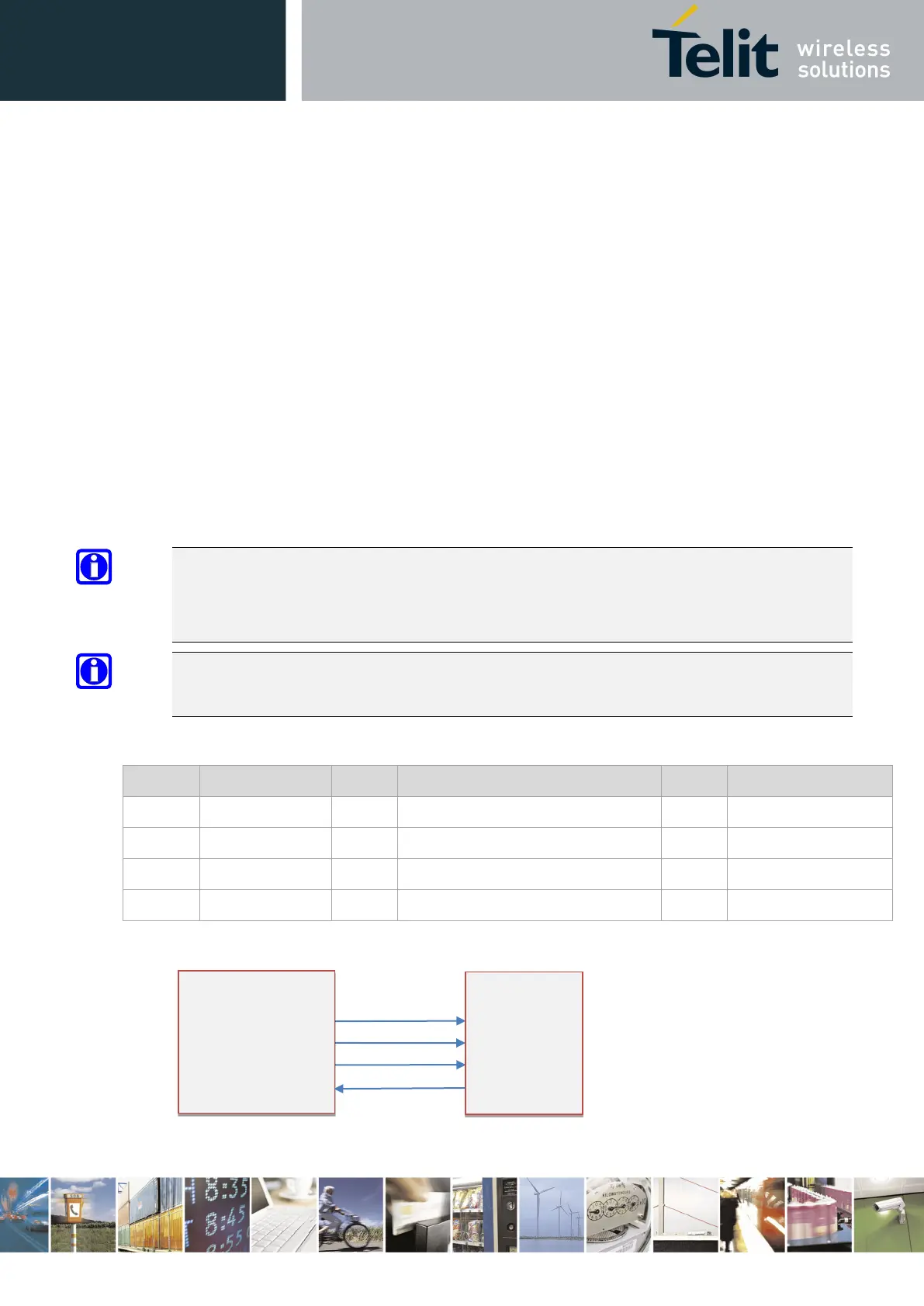

Figure 15: SPI Signal Connectivity
