10. Mounting the Module on your Board
10.1. General
The LE910C1 module was designed to be compliant with a standard lead-free SMT process.
10.2. Finishing & Dimensions

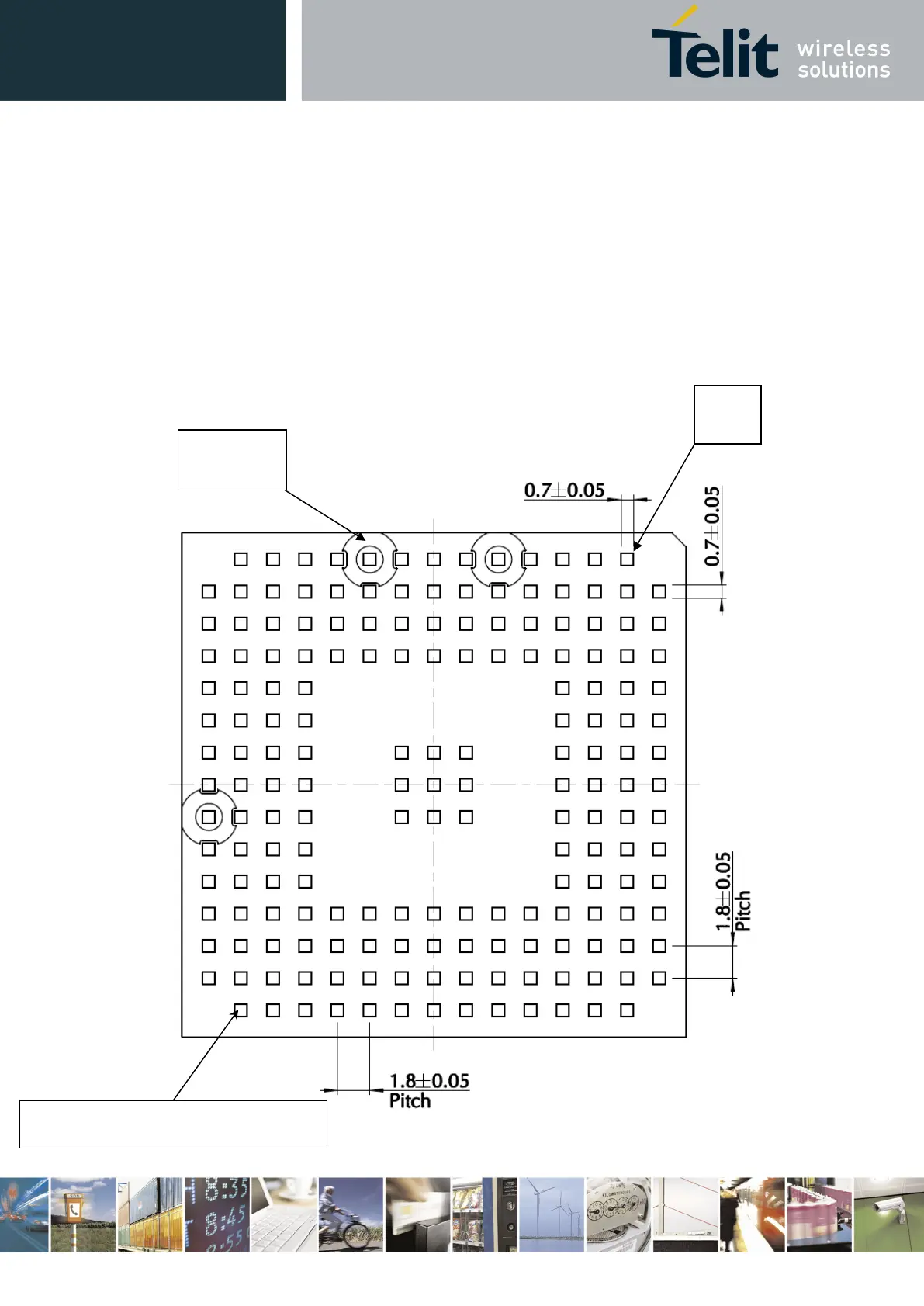

Figure 21 shows the mechanical dimensions of the LE910C1 module.
Figure 21: LE910C1 Mechanical Dimensions (bottom view)
Lead-free Alloy:
Surface finishing Ni/Au for all solder pads
4 x Route
Inhibit
Pin
B1
