transmission line including the connector itself. During Return Loss / impedance
measurements, the transmission line has been terminated to 50 Ω load.

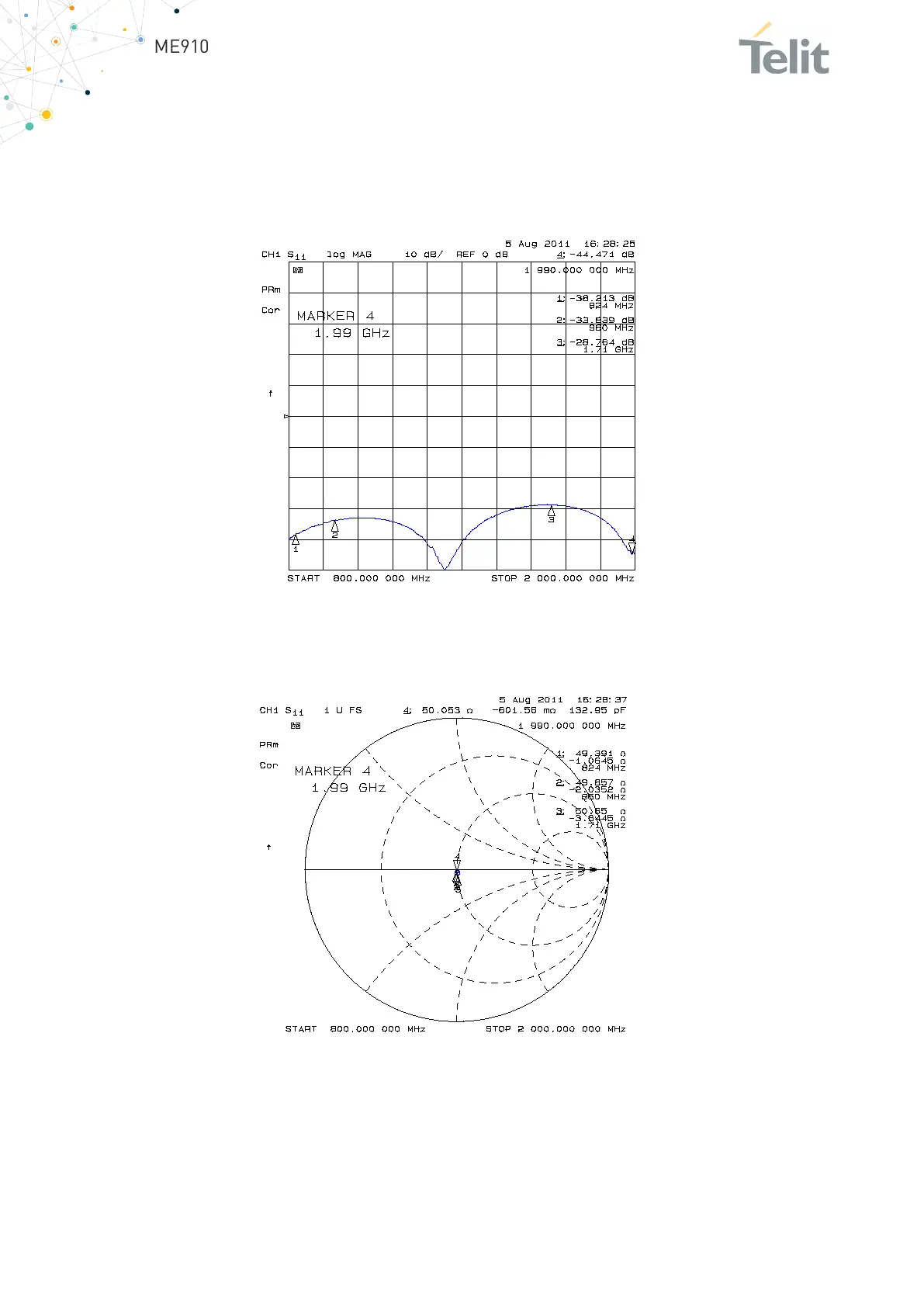

Return Loss plot of line under test is shown below:
Figure 19: Return Loss plot of line under test
Line input impedance (in Smith Chart format, once the line has been terminated to 50 Ω
load) is shown in the following figure:
Figure 20: Line input impedance
Insertion Loss of G-CPW line plus SMA connector is shown below:
