2.3 RETARDER BRACKET INSTALLATION

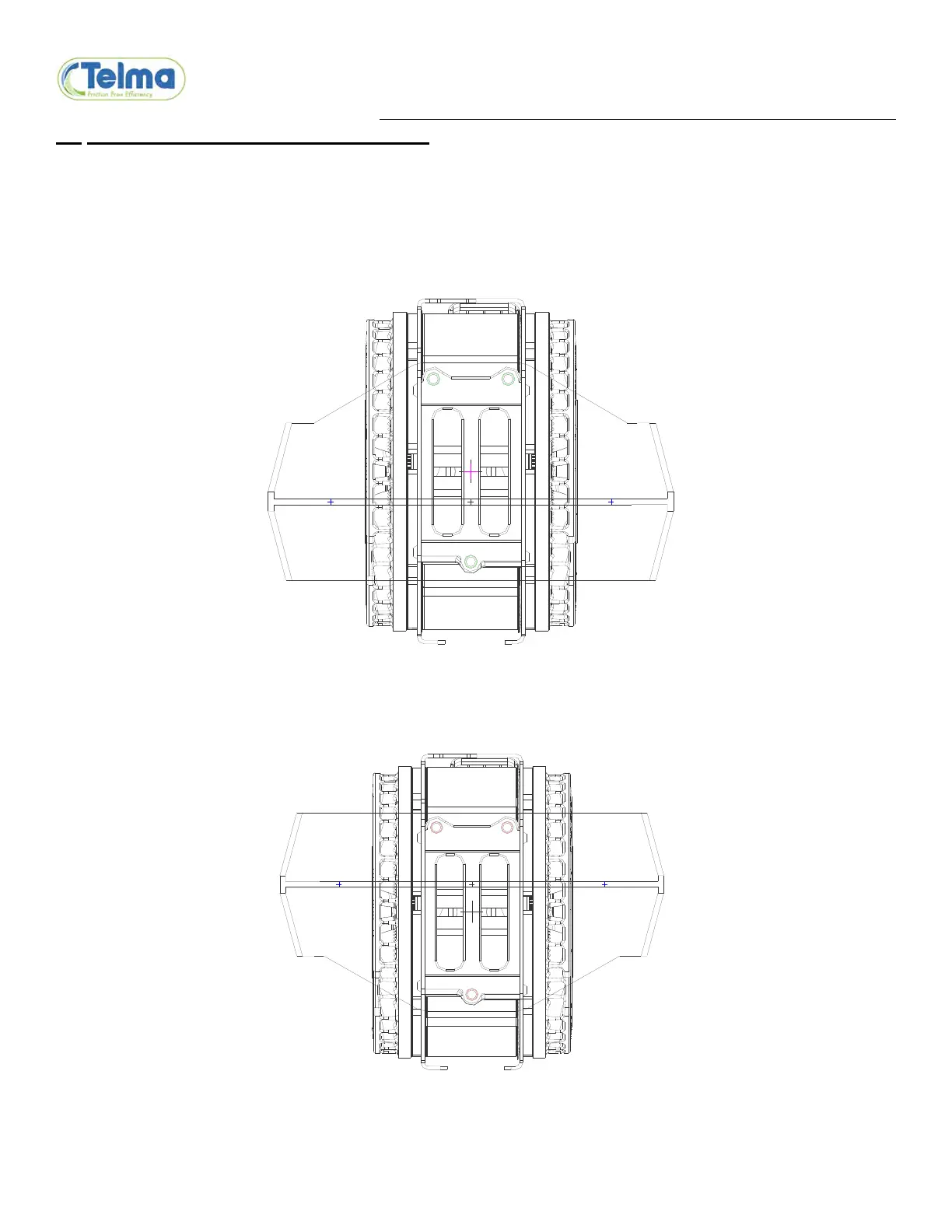

Attach the retarder brackets TIB07010 to the retarder as shown below according to the
position indicated on the installation drawing.
Use three of the M12x1.75x35mm bolts with nylon patch lock (TIF07001), and Trep washers
(VF201382) provided with the kit to fasten each Telma bracket onto the side of the unit. Tighten
bolts to 35 lb.-ft. (±5 lb-ft).
POSITION 1
--------------------------------------------------------------------------
POSITION 2
