1.2.3.2 One Sector, Dual Carrier
Two BSs support a single sector using two different carriers with a total bandwidth of 20 (10+10), 14
(7+7), or 10 (5+5) MHz.
1.2.3.3 Two Sector, Two Carriers (One Carrier per Sector)
Two BSs support two sectors, each with a bandwidth of 5, 7, or 10 MHz.
Not applicable for Compact HP.

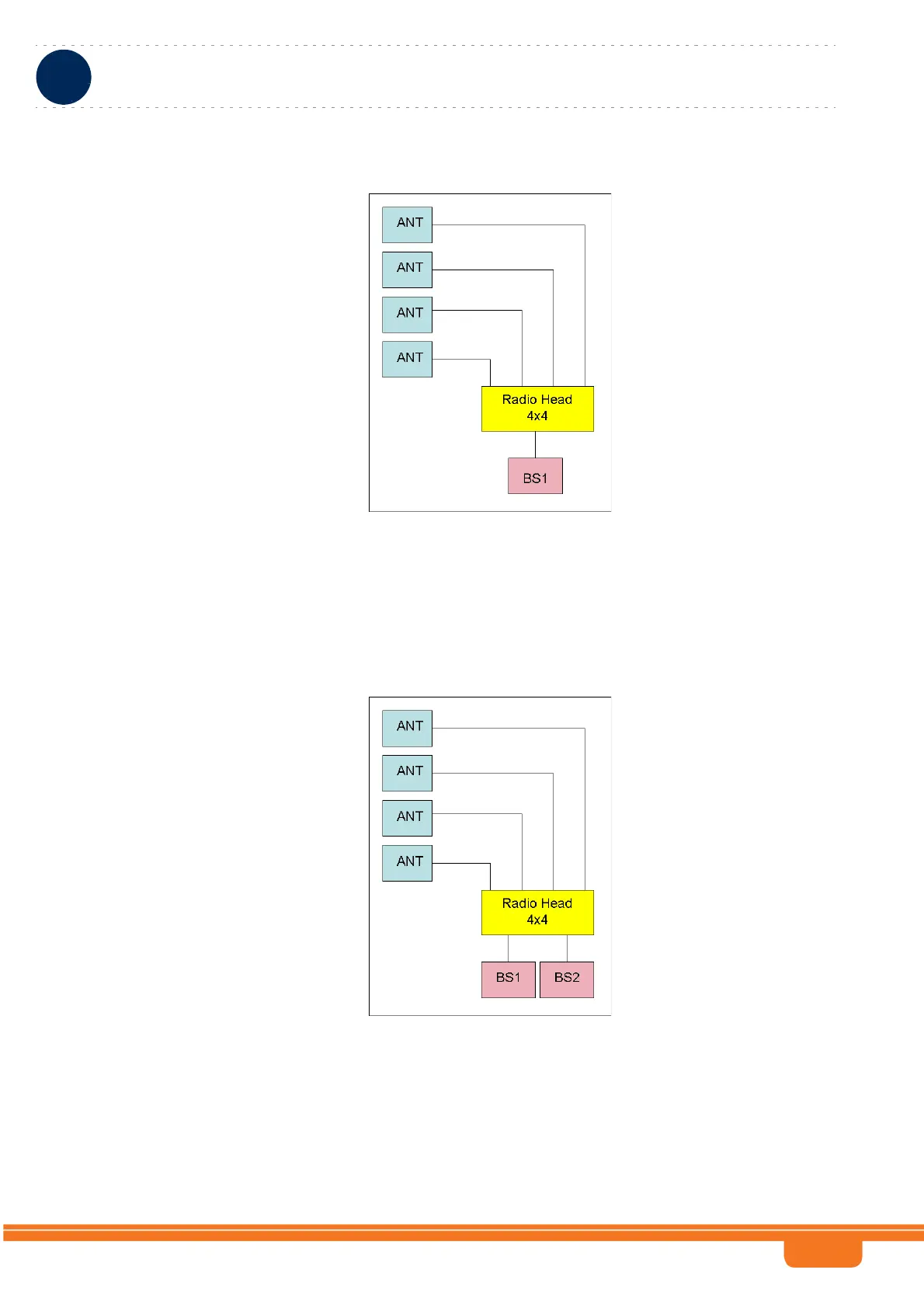

Figure 1-5: One Sector, One Carrier
Figure 1-6: One Sector, Dual Carrier
