DIGITAL PID CONTROLLER
19

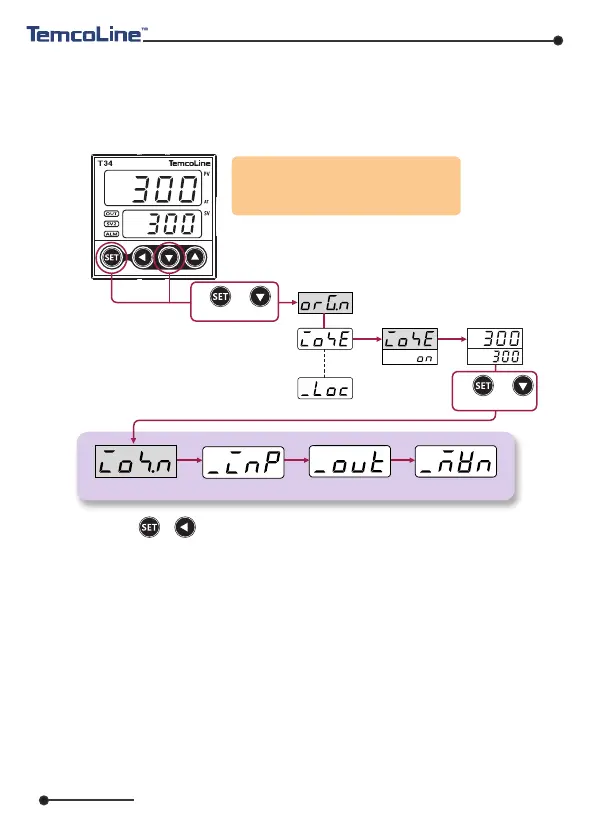

2) The processing for input/output setting menu after auto-tuning
<Initial setting menu>
<In/output setting menu>
While normal using our products,
the method for input/output setting
menu after auto-tuning.
②
IOSE=ON
Return to the
operating menu.
(Will return
automatically)
① +
more than 3 sec.
③ +
※ Press + more than 3 seconds at the inital set.
(before running auto-tuning)
After auto-tuning has done of T30 series models, to avoid any user's mistake,
input/output setting menu is restricted automatically. But you can change input/
output by following ways. However, unit will be returned to factory default when
changed input type.
more than 3 sec.
