DESCRIPTION
2.8 Support and sealing
• Tubes may be supported by tube supports and centered by tube adapters. The use of
tube supports for high temperature elements is not recommended.
• Radiation heat shield (1 per tube), made of Moldatherm
®
insulation plate and
covered with an aluminium or stainless steel cover.
• Tight sealing between tube and scavenger (optional).

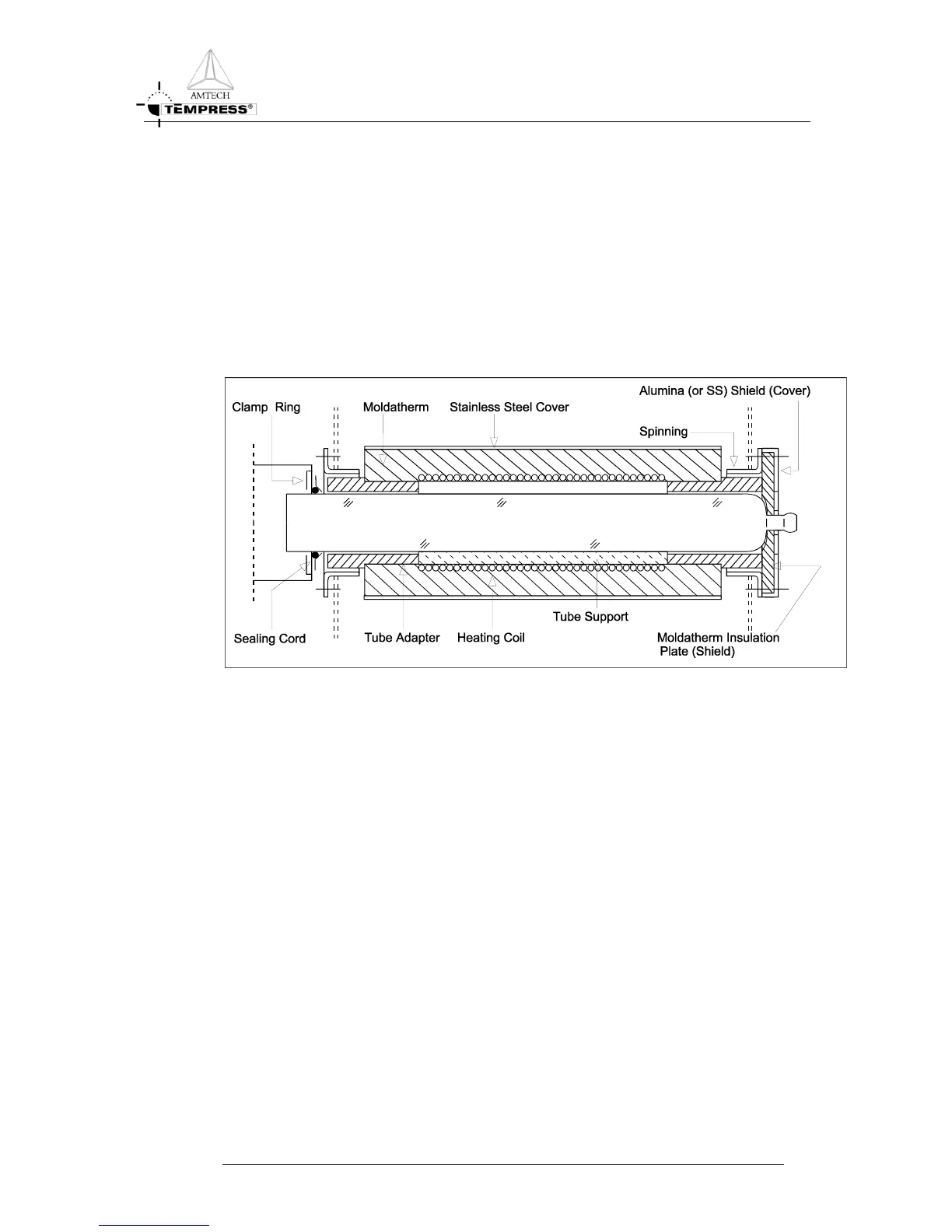

Figure 2-6 Tube adaptors, support and radiation heat shield
