MAINTENANCE
• Remove straps and power cables from the heating element
• Lift the heating element from the support and remove it carefully.
• Place the new element and follow the instructions, as described above, in reverse and
adjust the heating element. After the adjustment, the procedure as described in item
0 (
Burn-in and Oxidation of an Heating element), must be followed again.
The adjustment of the heating element must be done as follows:
• Adjustment of the base height through the front support, mounted on the front and
on the back of the heating element (see figure Figure 5-1).
• Adjustment of the heating element, to reach a correct position may be done by the
heating element support, mounted on each side of the heating element. By moving
them away from the heating element, the heating element will go down. Moving
them towards the heating element will lift it up.
• If a correct position is achieved, the tube support can be placed smoothly.

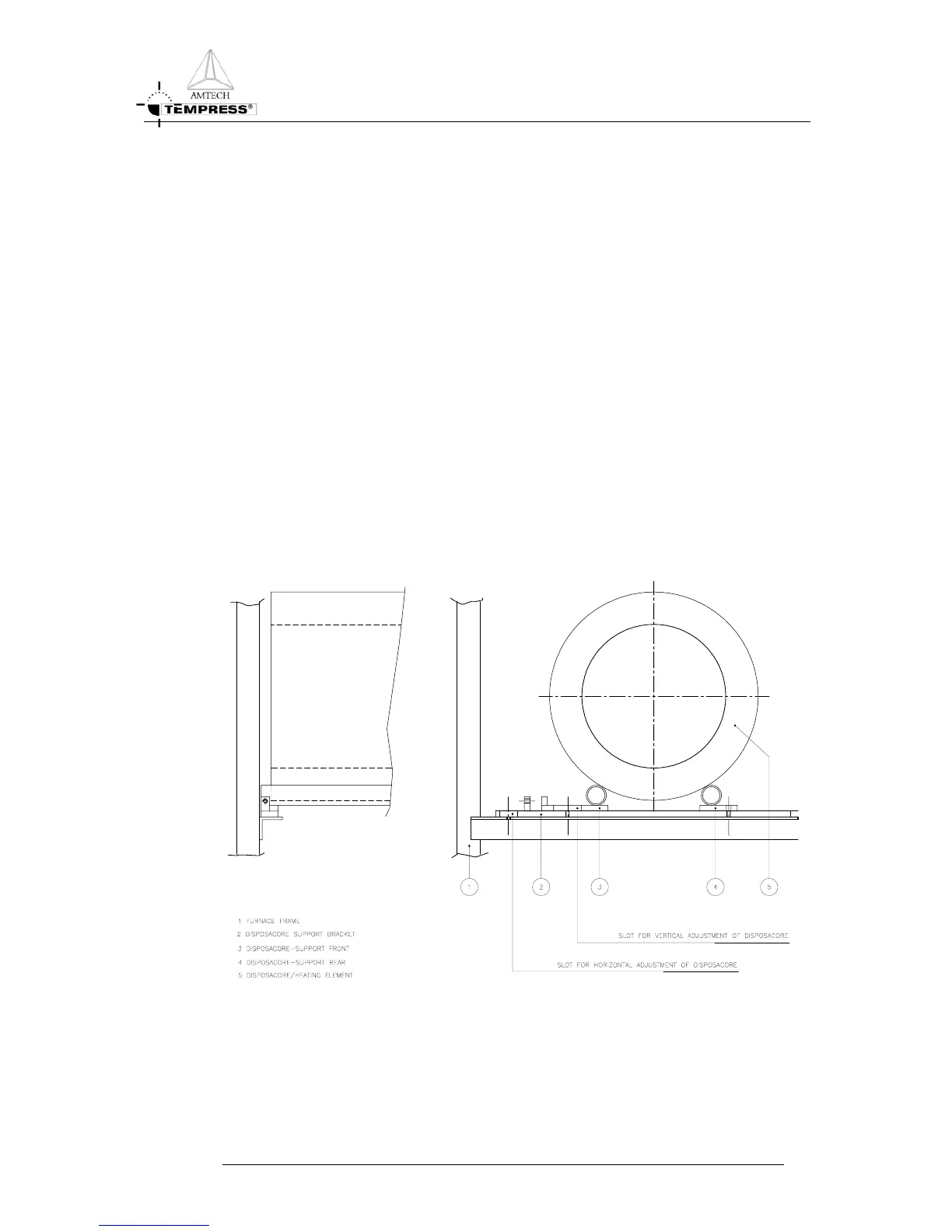

Figure 5-1 The heating element adjustment
FURNACE REFERENCE MANUAL
