INSTALLATION INSTRUCTIONS Gas Furnace: (F/G)9MAE
6 440 01 4300 02
Specifications subject to change without notice.

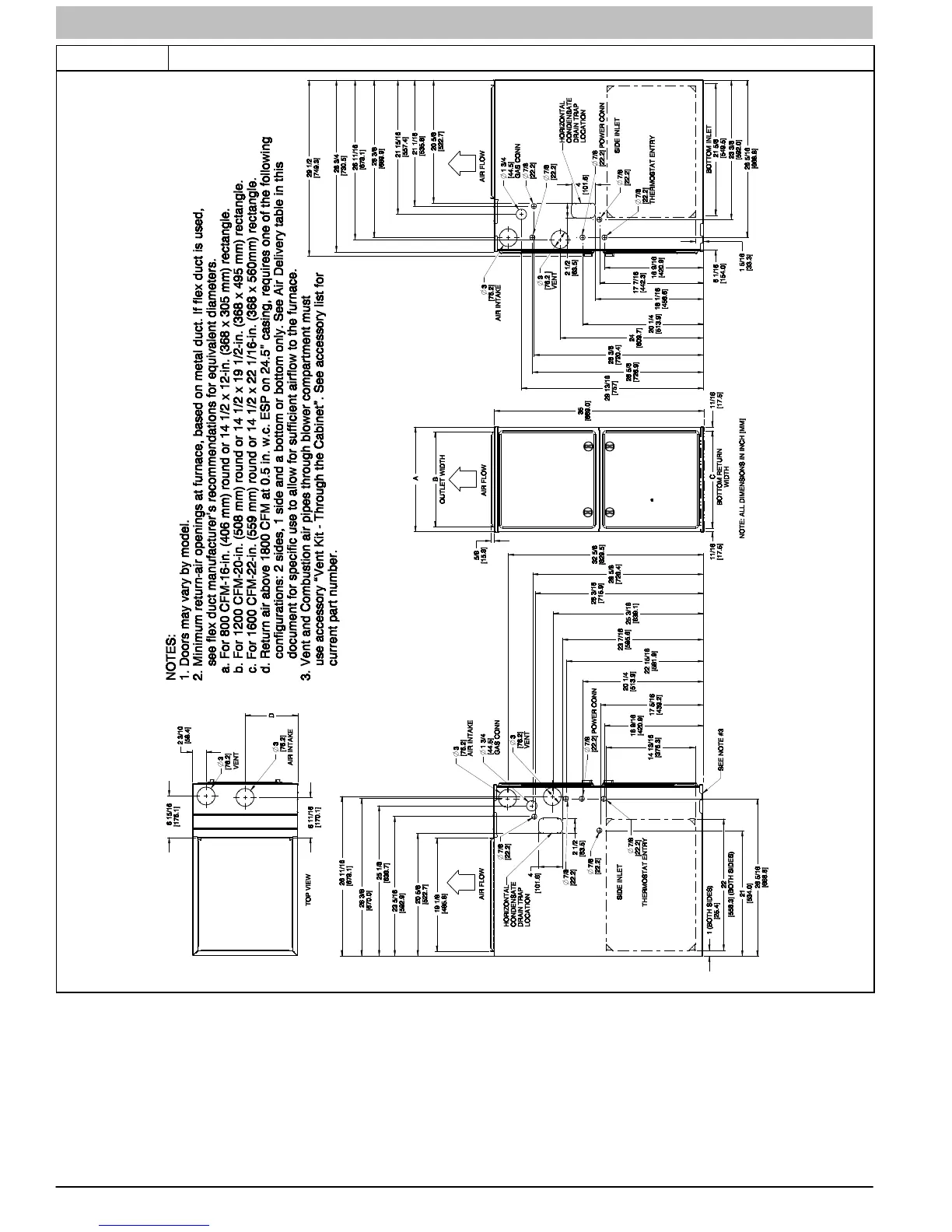

Figure 2 Dimensions
SD5060−4 Rev F
(F/G)9MAE
FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET
WIDTH
OUTLET WIDTH
BOTTOM
INLET WIDTH
AIR INTAKE
0601714 17−1/2 (445) 15−7/8 (403) 16 (406) 8 3/4 (222) 154 (69)
0602120 21 (533) 19−3/8 (492) 19−1/2 (495) 10 1/2 (267) 159 (72)
0801714 17−1/2 (445) 15−7/8 (403) 16 (406) 8 3/4 (222) 164 (74)
0802120 21 (533) 19−3/8 (492) 19−1/2 (495) 10 1/2 (267) 169 (77)
1002122 21 (533) 19−3/8 (492) 19−1/2 (495) 10 1/2 (267) 179 (80)
1202422 24−1/2 (622) 22−7/8 (581) 23 (584) 12 1/4 (311) 203 (91)
