TEMPTRONlC
v CORPORATION

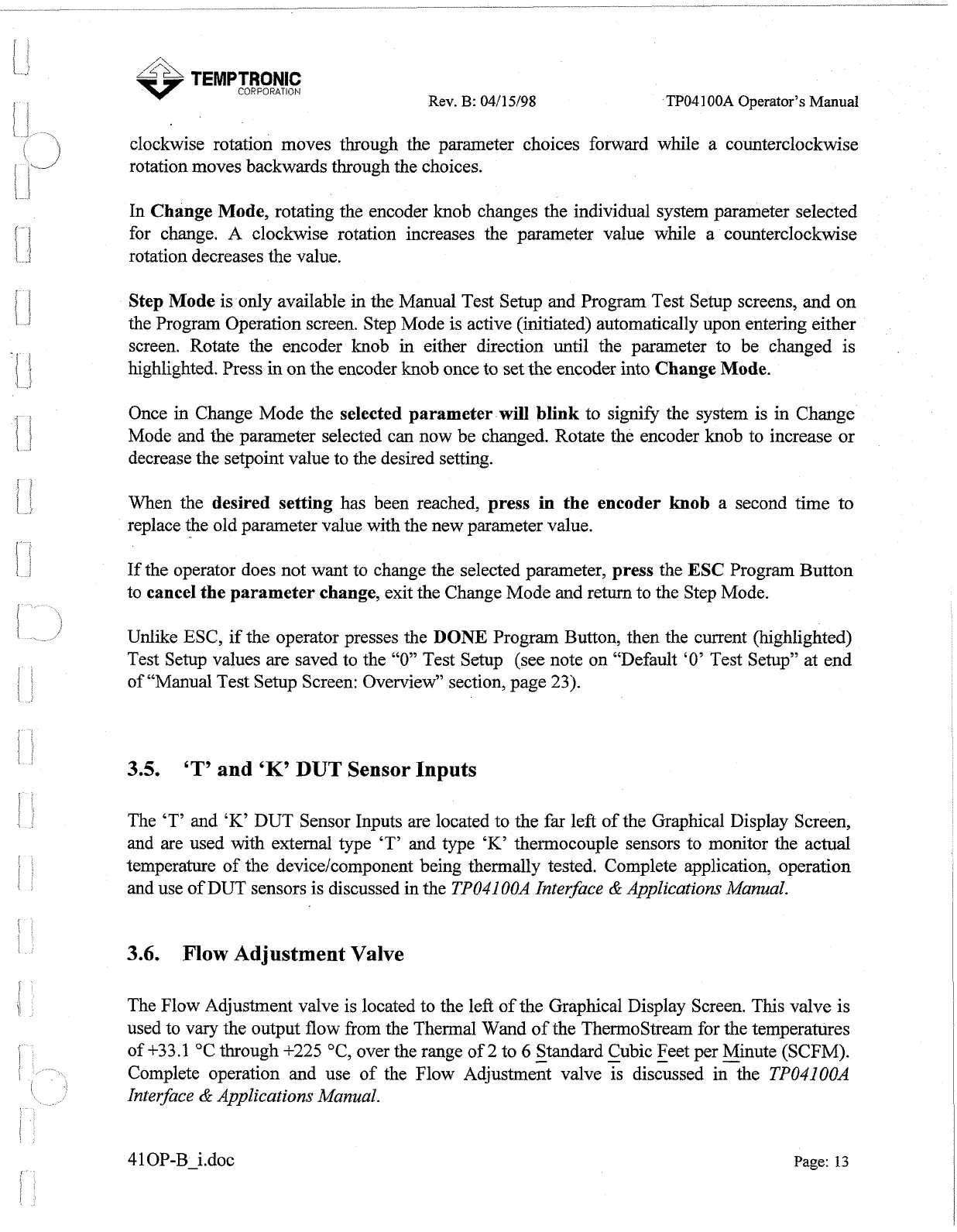

Rev. B: 04/15/98 TP04 100A Operator's Manual
I , -,
clockwise rotation moves through the parameter choices forward while a counterclockwise
rotation moves backwards through the choices.
1-8
In Change Mode, rotating the encoder knob changes the individual system parameter selected
: 1
for change. A clockwise rotation increases the parameter value while a counterclockwise
i
I I rotation decreases the value.
1.
ii
Step Mode is only available in the Manual Test Setup and Program Test Setup screens, and on
I
the Program Operation screen. Step Mode is active (initiated) automatically upon entering either
screen. Rotate the encoder knob in either direction until the parameter to be changed is
-I ;
highlighted. Press in on the encoder knob once to set the encoder into Change Mode.
! 1
Once in Change Mode the selected parameter will blink to signifjr the system is in Change
j 1
, I
Mode and the parameter selected can now be changed. Rotate the encoder knob to increase or
decrease the setpoint value to the desired setting.
i i
j 3
When the desired setting has been reached, press in the encoder knob a second time to
replace the old parameter value with the new parameter value.
I
4 I
If the operator does not want to change the selected parameter, press the ESC Program Button
to
cancel the parameter change, exit the Change Mode and return to the Step Mode.
I..
1,)
Unlike ESC, if the operator presses the DONE Program Button, then the current (highlighted)
Test Setup values are saved to the
"0" Test Setup (see note on "Default '0' Test Setup" at end
1
of "Manual Test Setup Screen: Overview" section, page 23).
1,
I
3.5.
'T' and 'K' DUT Sensor Inputs
1
1 The 'T' and 'K' DUT Sensor Inputs are located to the far left of the Graphical Display Screen,
and are used with external type 'T' and type 'K' thermocouple sensors to monitor the actual
I
1
temperature of the device/component being thermally tested. Complete application, operation
and use of DUT sensors is discussed in the
TP04100A Interface & Applications Manual.
i
1
3.6. Flow Adjustment Valve
I
\
The Flow Adjustment valve is located to the left of the Graphical Display Screen. This valve is
used to vary the output flow from the Thermal Wand of the ThermoStream for the temperatures
1
of +33.1 OC through +225 OC, over the range of 2 to 6 Standard Cubic Feet per Minute (SCFM).
I
Complete operation and use of the Flow ~djustment valve
discussed in-the
TP04100A
i Interface & Applications Manual.
,
Page: 13
