MANUAL TEST SETUP SCREEN
__ - --
TP04100A Operator's Manual

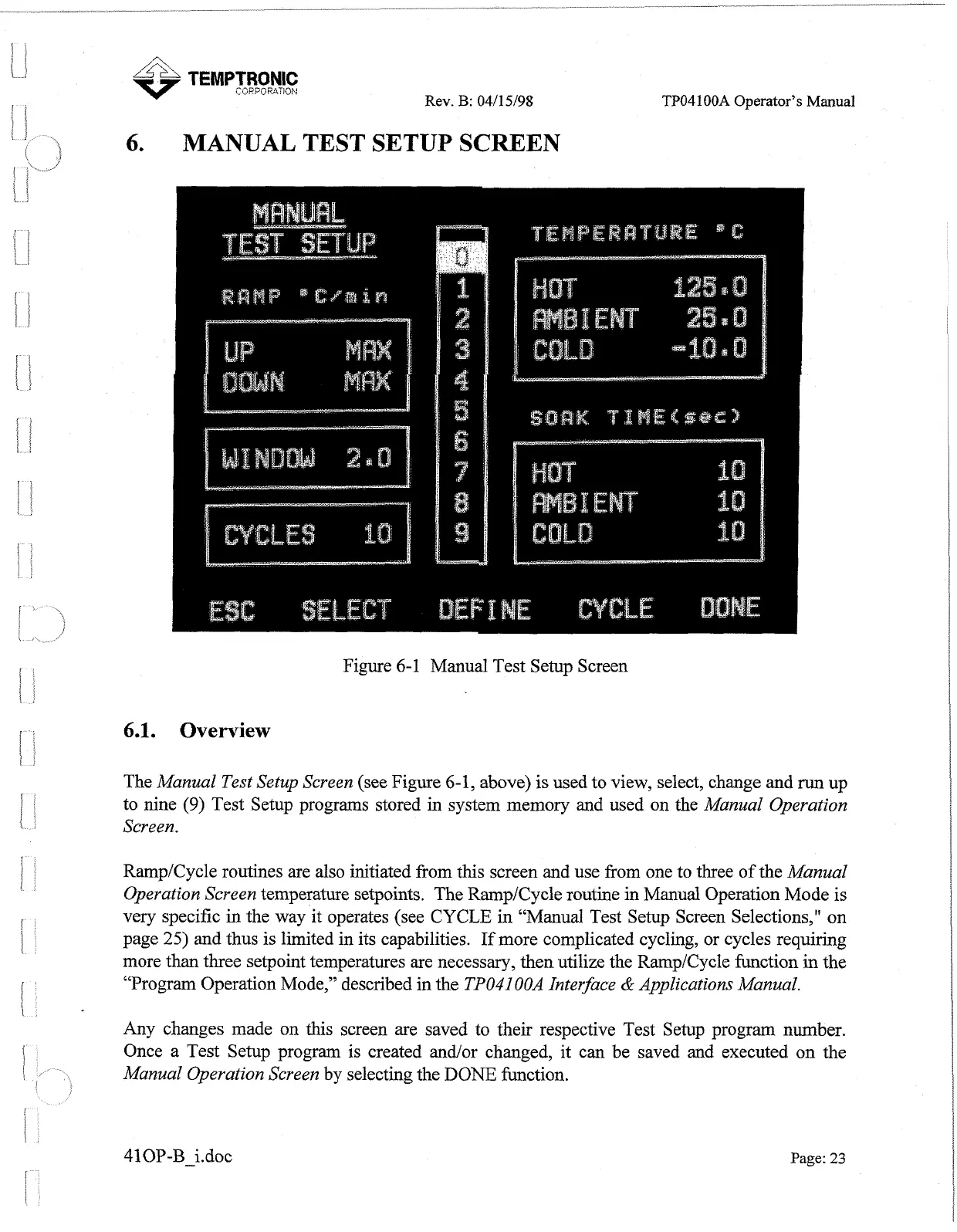

Figure 6-1 Manual Test Setup Screen
Overview
The Manual Test Setup Screen (see Figure 6-1, above) is used to view, select, change and run up
to nine
(9) Test Setup programs stored in system memory and used on the Manual Operation
Screen.
RampICycle routines are also initiated from this screen and use from one to three of the Manual
Operation Screen
temperature setpoints. The RarnpJCycle routine in Manual Operation Mode is
very specific
in the way it operates (see CYCLE in "Manual Test Setup Screen Selections," on
page
25) and thus is limited in its capabilities. If more complicated cycling, or cycles requiring
more than three setpoint temperatures are necessary, then utilize the RarnpKycle function in the
"Program Operation Mode," described in the
TP04100A Interface & Applications Manual.
Any changes made on this screen are saved to their respective Test Setup program number.
Once a Test Setup program
Manual Operation Screen by
is created and/or changed, it can be saved and executed on the
selecting the DONE fbnction.
Page: 23
