Tenda AC7 User Manual

78

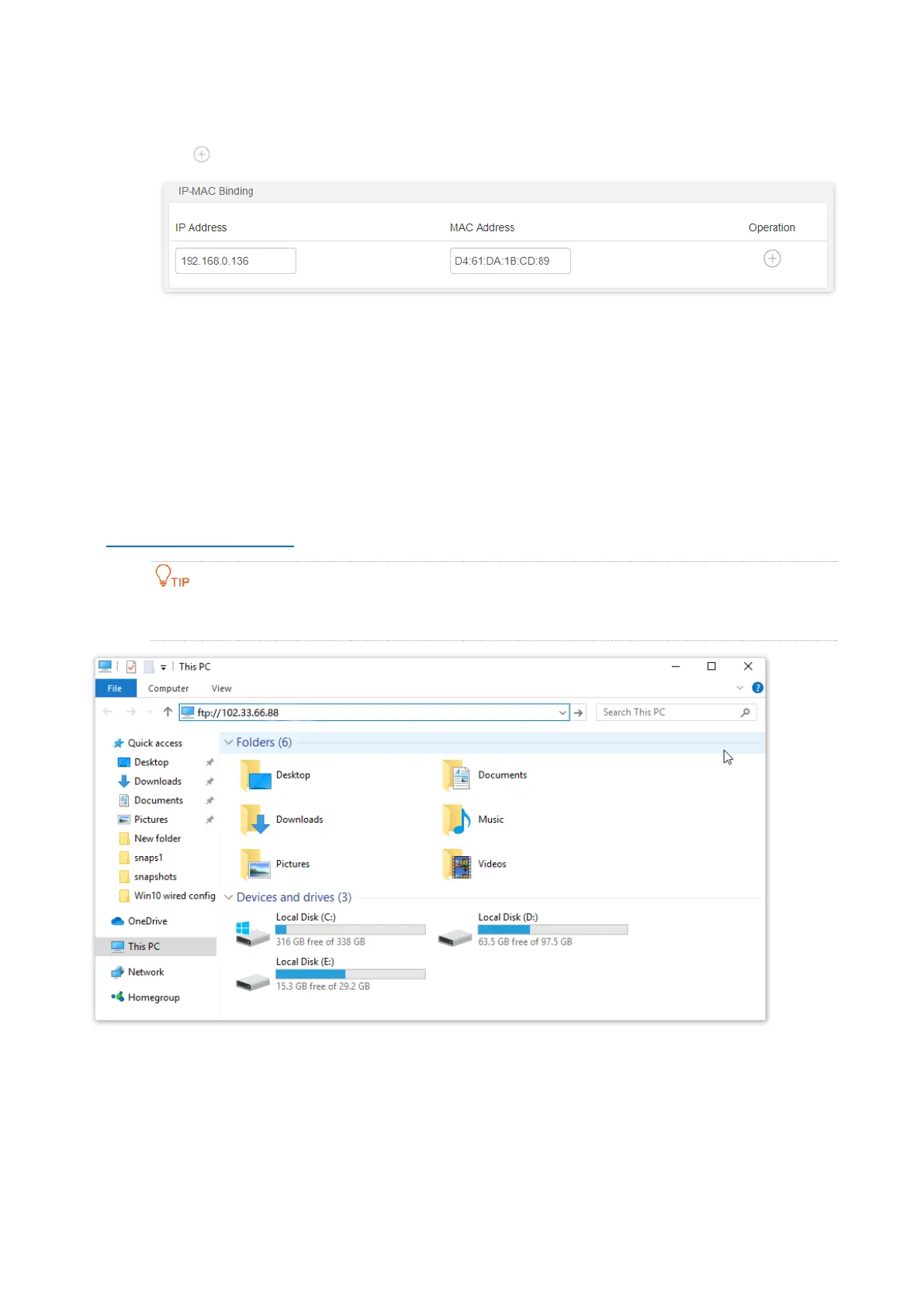

3. Enter the MAC Address of the host of the FTP server, which is D4:61:DA:1B:CD:89 in this
example.
4. Click .
5. Click OK on the bottom of the page.
----End
When the configurations are completed, users from the internet can access the DMZ host by
visiting “Intranet service application layer protocol name://WAN IP address of the router”. If the
intranet service port number is not the default number, the visiting address should be: “Intranet
service application layer protocol name://WAN IP address of the router:intranet service port
number”.
In this example, the address is “ftp://102.33.66.88”. You can find the WAN IP address of the router
in View system information.
When the default intranet service port number is 80, please change the service port number to an
uncommon one (1024 to 65535), such as 9999.
Enter the user name and password to access the resources on the FTP server.

Tenda AC7 Specifications

General

VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	4
Transmit power	30 dBmW
Antennas quantity	5
Antenna gain level (max)	6 dBi
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package type	Box
Package weight	860 g
Number of products included	1 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Firewall security	Forbid UDP flood attack, Forbid TCP flood attack, Forbid flood attack, Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
Weight	360 g
