Tenda AV1000 User Manual

AV1000 Gigabit Powerline Adapter
28
Chapter 4 Using the Pair Button
This section presents how to use the Pair hardware button to create a secure
Powerline network.
Tip
Two or more powerline adapters under the same electrical circuit will
automatically interconnect to create an unencrypted public network (Named
“HomePlugAV”).

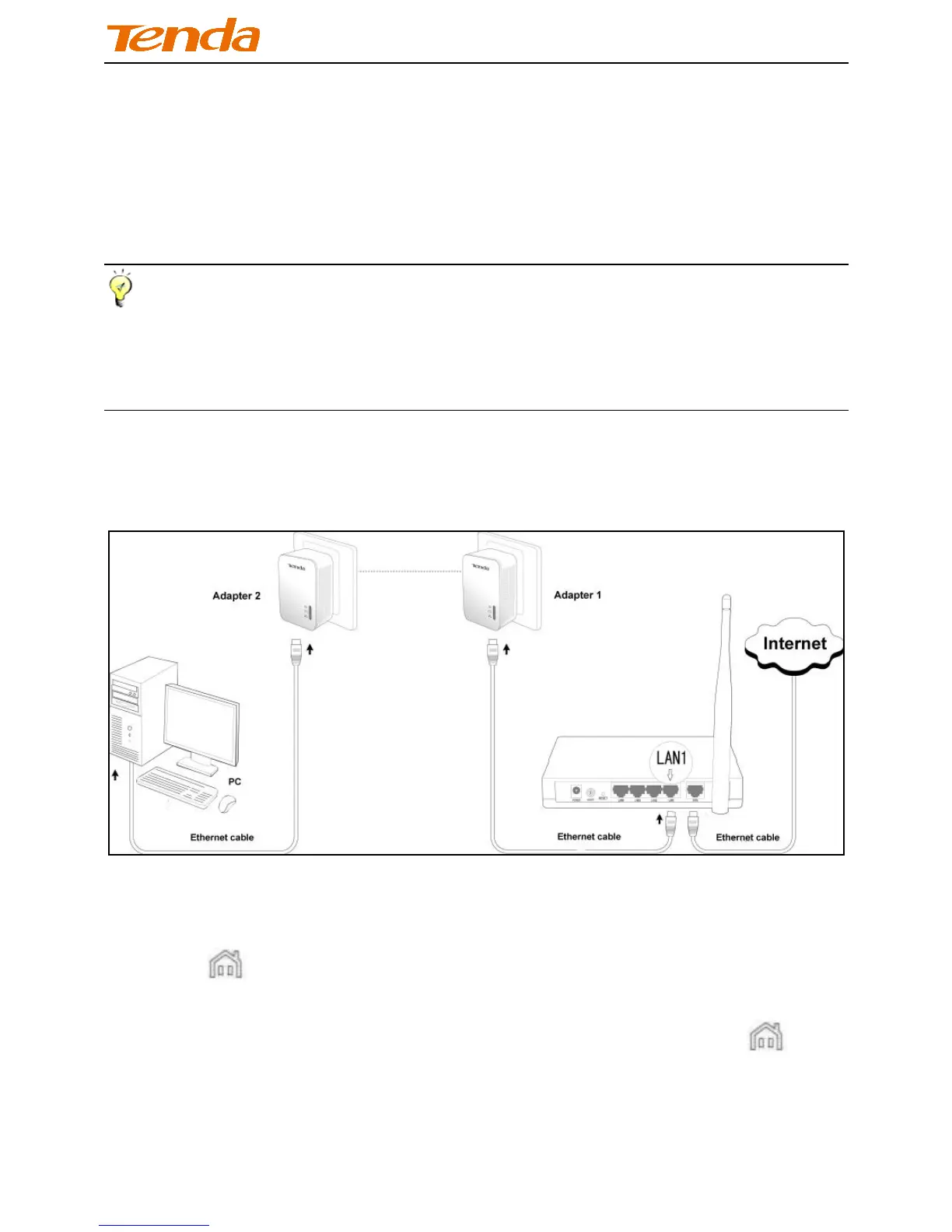

A. To create an encrypted private network between two adapters
(Adapter 1 and Adapter 2), do as follows:
Configuration Procedure:
1. Press the Pair button on Adapter 1 for 1-3 seconds and then release it.
The LED on the Adapter 1 will start blinking.
2. Within 2 minutes upon releasing Adapter 1’s Pair button, press the Pair
button on Adapter 2 for 1-3 seconds and then release it. The LED
on the Adapter 2 will start blinking.

Tenda AV1000 Specifications

General

Encryption	128-bit AES
Model	AV1000
Standards and Protocols	IEEE 1901, HomePlug AV
Interface	Ethernet
Button	Pair Button
Technology	Powerline
Modulation Technology	OFDM
Data Transmission Rate	1000Mbps
Range	300 meters
Powerline Standard	HomePlug AV2
Plug Type	EU, US, UK
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
