Tenda D301-V2 User Manual

Wireless Modem Router
6

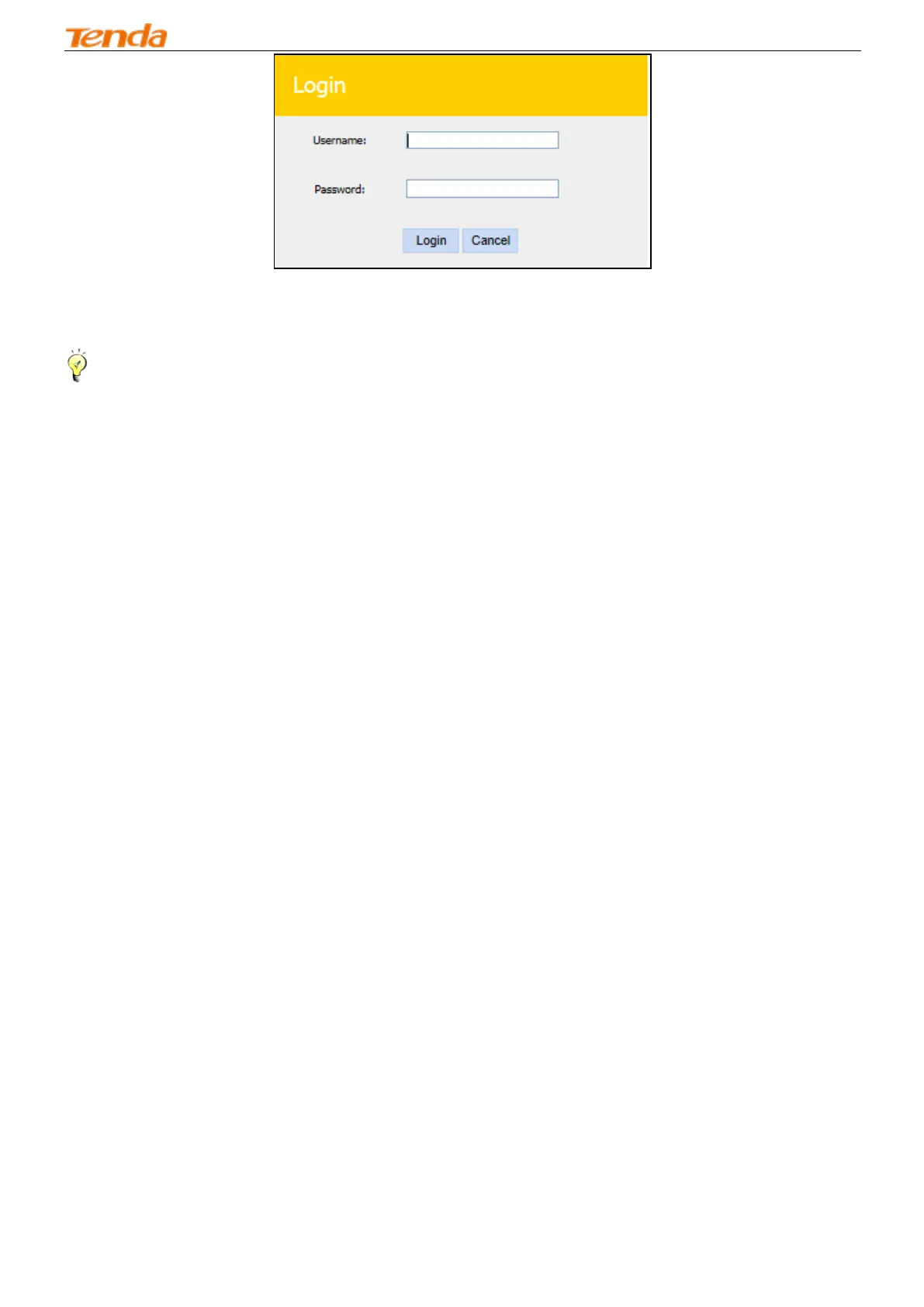

3. Enter admin in both the Login Username and Password fields if you access the router for the first time and then click
Login to enter the home page.
_________________________________________________________________________________________________
Tip:
If you change the login username and password and forget them, press the WPS/RST button on the device for at least 7
seconds to reset the router, and then enter the home page with the default password “admin”.
_________________________________________________________________________________________________
3.2 Internet Setup
ADSL
1. Link Type: Select ADSL.
2. Select your country.
3. Select your ISP.
4. VPI and VCI fields will be populated automatically if you select a correct country and ISP.
5. Select your Connection Type, and fill the relevant Internet information, like PPPoE username and password
from your ISP.
6. Configure your wireless network. (Recommended)
 Setup your SSID.
 Setup your wireless key.
7. Click OK to apply your configurations.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
