Tenda D301-V2 User Manual

Wireless Modem Router
57
_________________________________________________________________________________________________
Warning!
Changing from one policy to another of an interface will cause all defined rules for that interface to be REMOVED
AUTOMATICALLY! You will need to create new rules for the new policy.
_________________________________________________________________________________________________

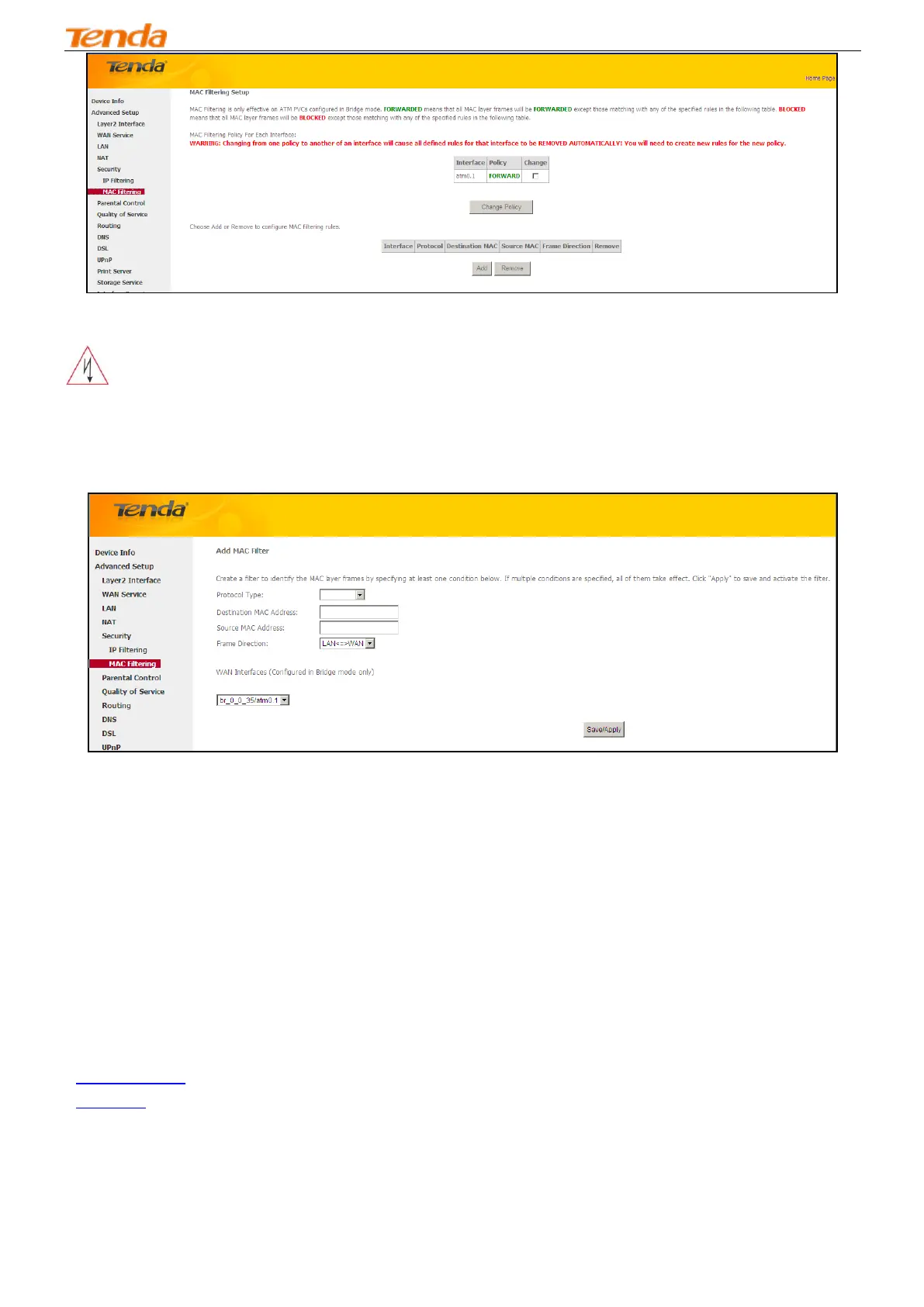

Click Add to enter the following screen:
Here you can create a filter to identify the MAC layer frames by specifying at least one condition below. If multiple
conditions are specified, all of them take effect. Click Save/Apply to save and activate the filter.
Protocol Type: Select a protocol type from the drop-down list.
Destination MAC Address: Enter the destination MAC address apply the MAC filtering rule to which you wish to
apply the MAC filtering rule.
Source MAC Address: Enter the source MAC address to which you wish to apply the MAC filtering rule.
Frame Direction: Select a frame direction from the drop-down list.
WAN Interfaces: Select a WAN interface from the drop-down list.
4.2.6 Parental Control
This section explains the following information:
• Time Restriction
• URL Filter
Time Restriction
Click Parental Control -> Time Restriction -> Add to enter the following screen.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
