Tenda D301-V2 User Manual

Wireless Modem Router
42

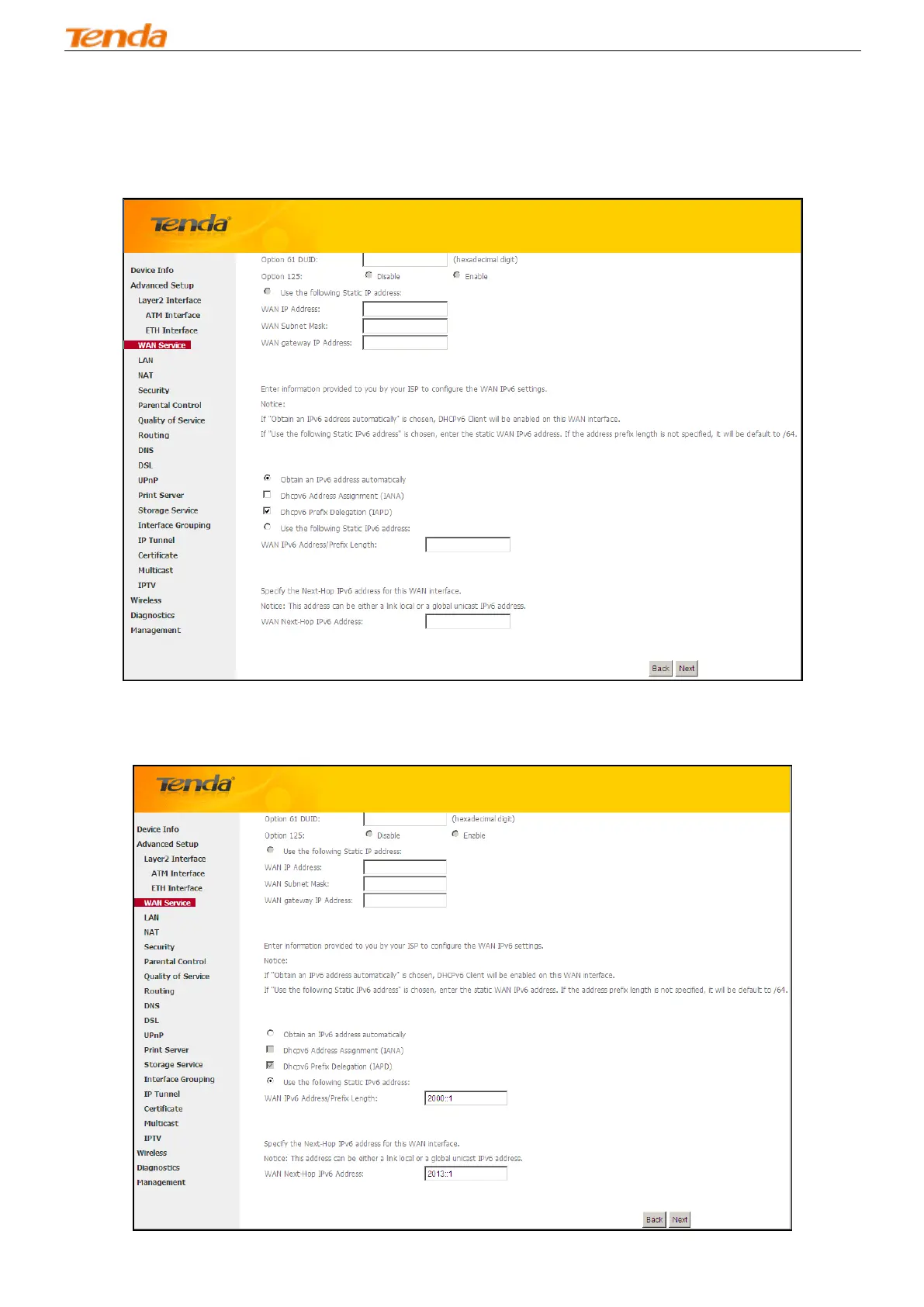

To obtain an IP address automatically:
Select Obtain an IP address automatically.
Check Launch Dhcp6c for Prefix Delegation (IAPD).
If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also.
Click Next -> Next -> Apply/Save.
To configure a static IPv6 address
Select Use the following Static IPv6 address.
Configure WAN IPv6 Address/Prefix Length and WAN Next-Hop IPv6 Address.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
