Tenda D305 User Manual

95
 Available Routed WAN Interfaces: Displays the available routed WAN interfaces. Select a WAN interface and
click the button to add it to the Selected Default Gateway Interfaces box.
 Apply/Save: Click to save and activate your settings.

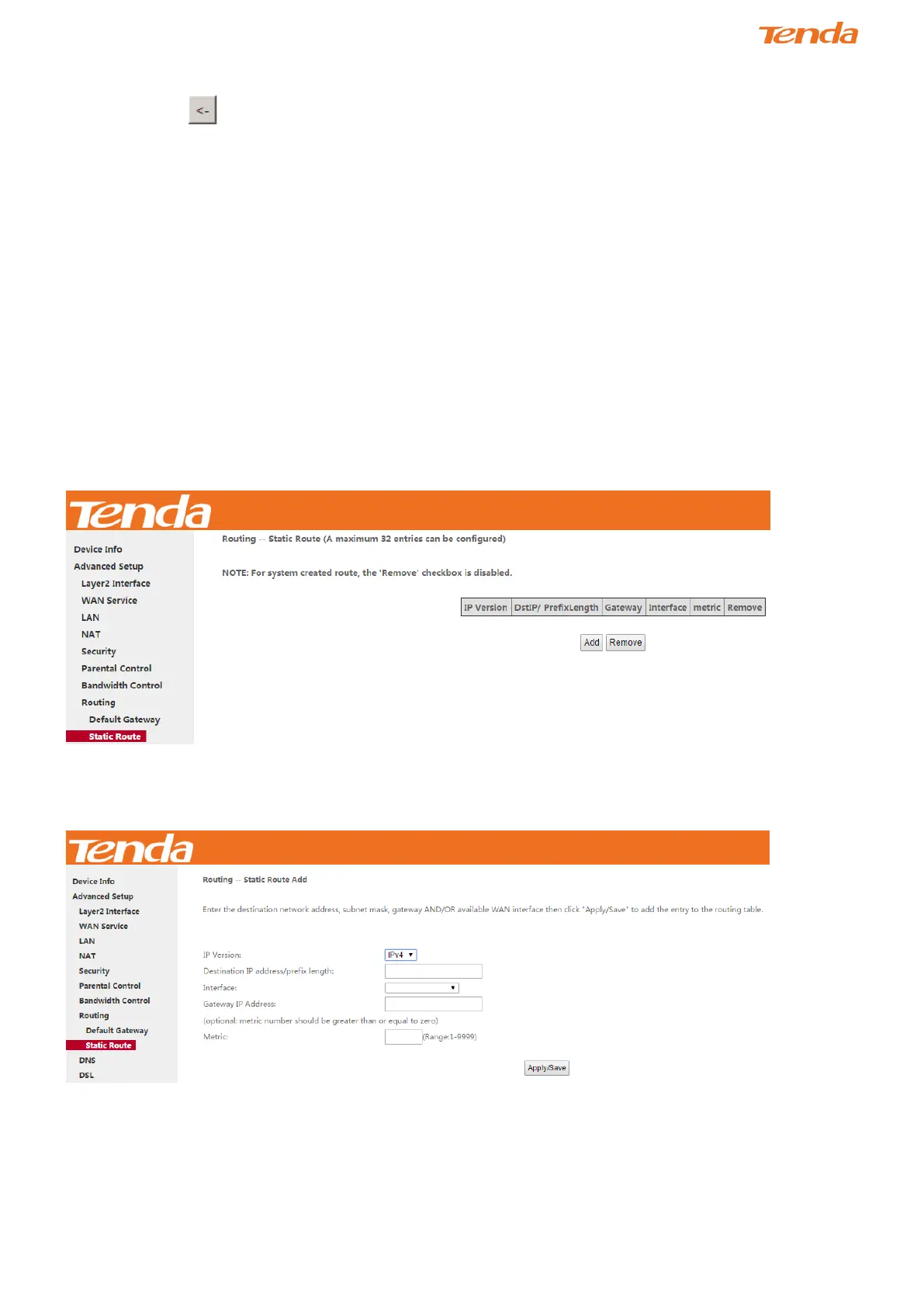

Static Route
Static routes provide additional routing information to your router. Typically, you do not need to add static routes.
However, when there are several routers in the network, you may want to set up static routing. Static routing determines
the path of the data in your network. You can use this feature to allow users on different IP domains to access the Internet
via this device. It is not recommended to use this setting unless you are familiar with static routing. In most cases,
dynamic routing is recommended, because this feature allows the router to detect the physical changes of the network
layout automatically.
Click Add to enter the following screen:
 IP Version: Select IP version.
 Destination IP address/prefix length: Enter the destination IP address and prefix length of the final destination.
 Interface: Select an interface from the drop-down list.
 Gateway IP address: Enter the gateway IP address, which must be a router on the same LAN segment as the

Tenda D305 Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45), Phone (RJ-11)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	125 mm
Width	190 mm
Height	26.5 mm
