Tenda D305 User Manual

100
Check the checkbox next to a modulation to enable it and then click .

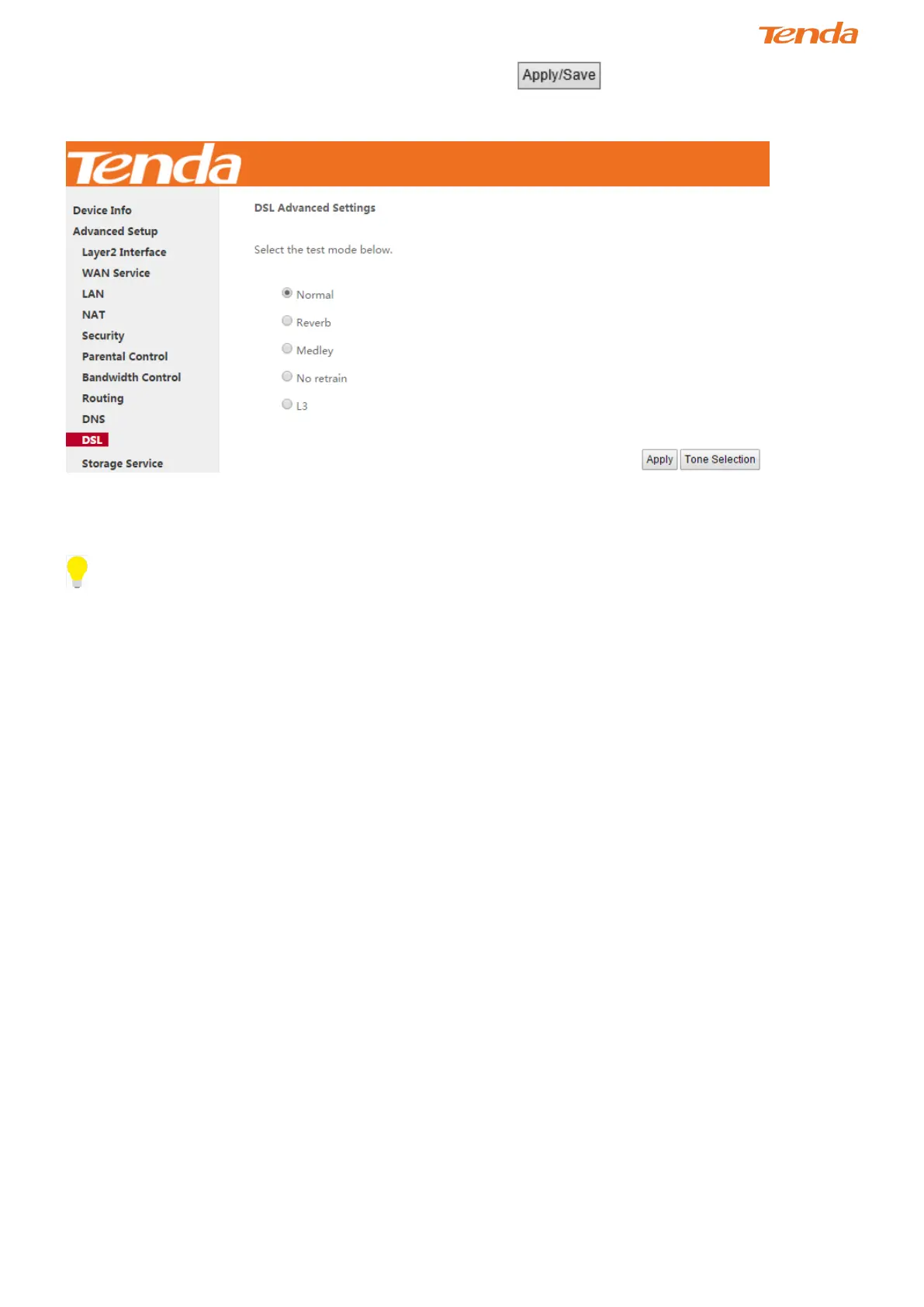

Advanced Settings: Click it to enter the Advanced Settings screen as below.
Here you can select the test mode and tone.
_________________________________________________________________________________________________
TIP
If you are unsure about the DSL parameters, please apply the factory default settings. Wrong configurations may fail
your Internet access.
_________________________________________________________________________________________________
4.2.11 Storage Service
This section explains the following:
• Storage Device Info
• User Account
The modem router provides a USB port. You can attach a USB storage device to it and share your USB device with a
user in the LAN.
Storage Device Info
Once you plug your USB storage device into the USB port, the details about the USB storage will be recorded shown as
below table.

Tenda D305 Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45), Phone (RJ-11)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	125 mm
Width	190 mm
Height	26.5 mm
