Tenda D305 User Manual

138

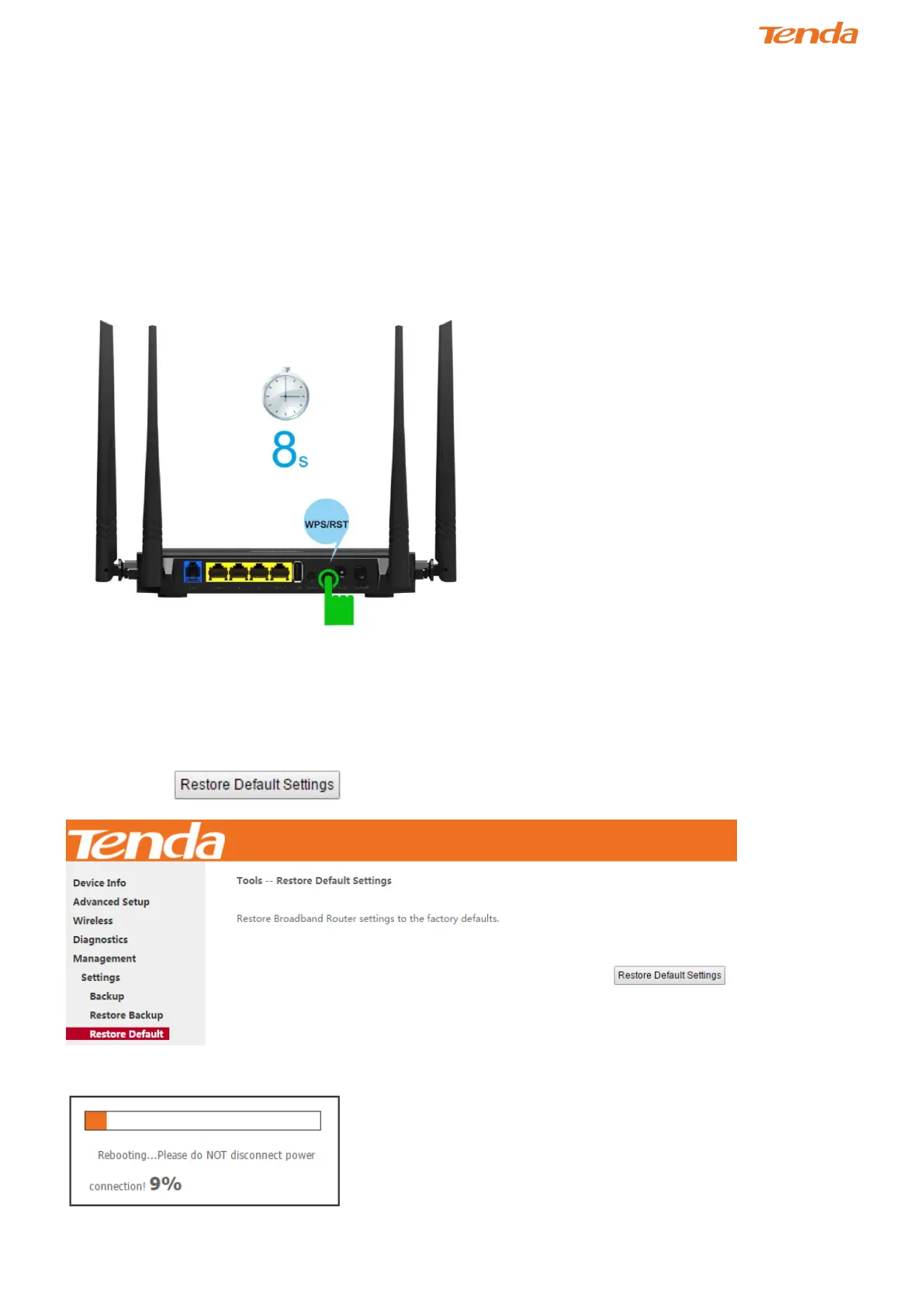

Application 2: How to reset the modem router?
The device supports two methods to reset to factory defaults. Note that after you reset the device, you should reconfigure
it for Internet service.
Method 1: WPS/RST button
Press the WPS/RST button on the back of the modem router for about 8 seconds to reset it to factory defaults.
Method 2: Restore Default Settings from User Interface
① Go to Management > Settings > Restore Default to enter the interface below.
② Click icon to start resetting. And wait for the processing bar completing…

Tenda D305 Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45), Phone (RJ-11)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	125 mm
Width	190 mm
Height	26.5 mm
